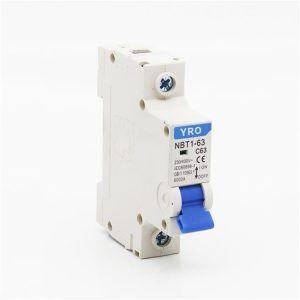

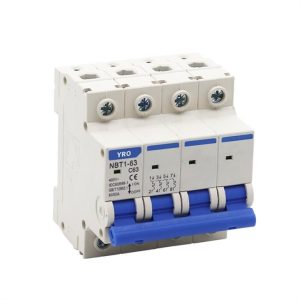

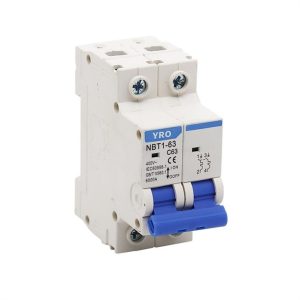

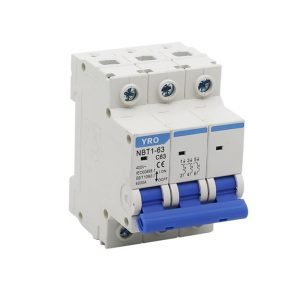

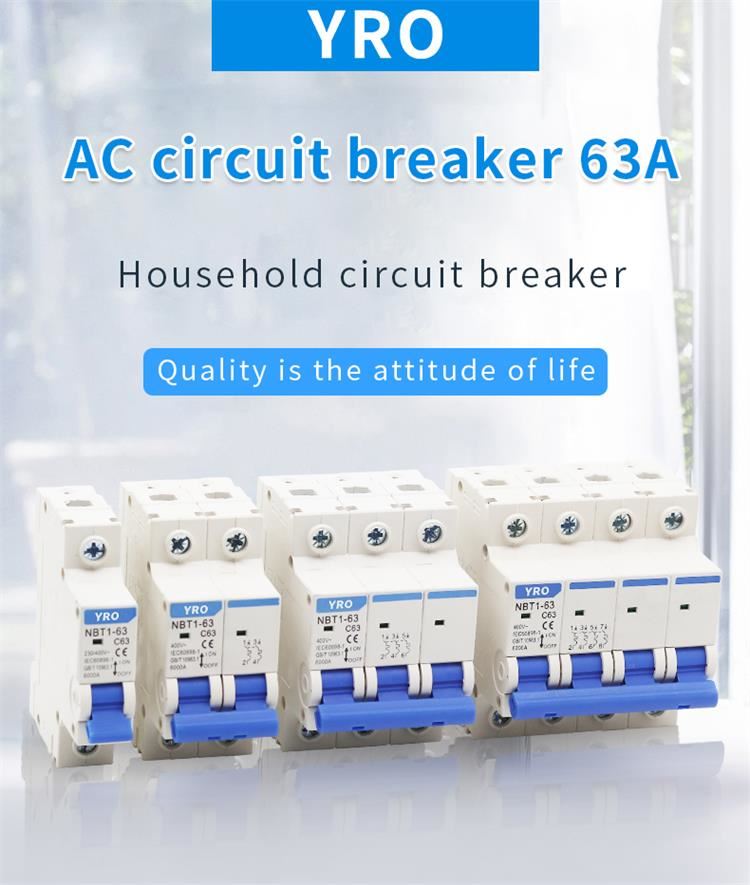

220v Main Breaker Switch

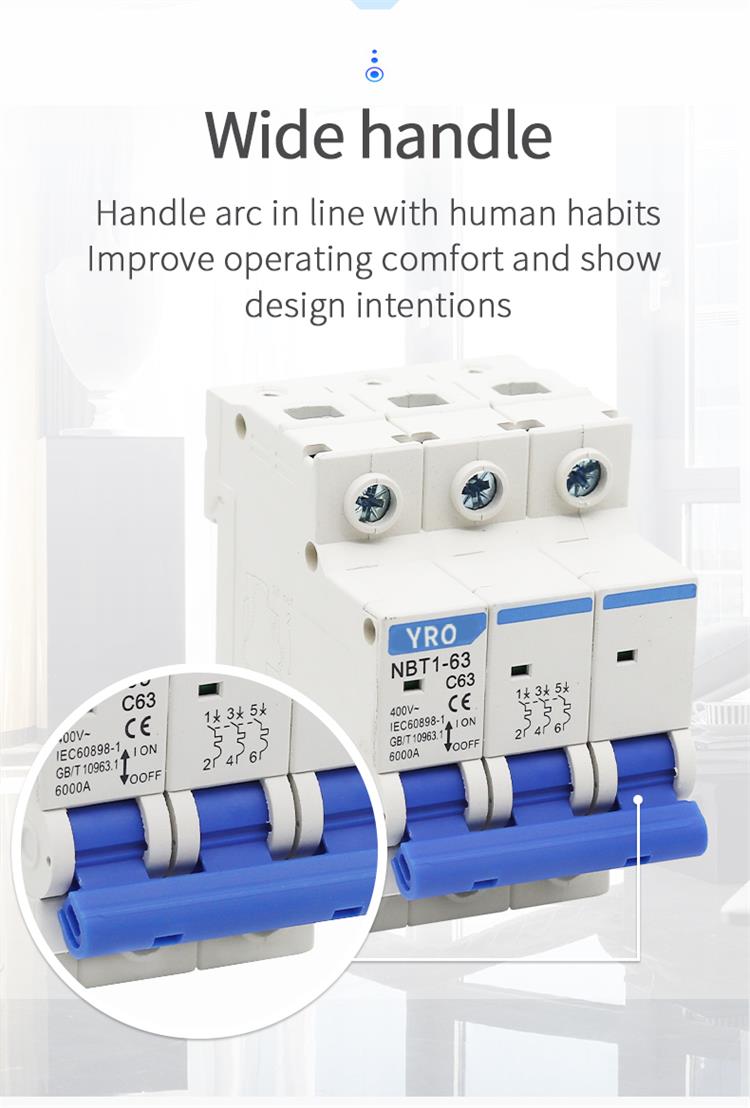

NBT1-63 series small air switch has skillfully set the threshold of closing force of the operating handle in the products with higher rated current level (50a and above). Only when

220v Main Breaker Switch

●Protect circuits from overcurrent.

●Overload protection and short-circuit protection.

●Widely used in solar PV photovoltaic systems.

●Structure, small size and convenient use.

●Passed KEMA, CE, TUV certification.

Read More Contact Us

NBT1-63 series small air switch has skillfully set the threshold of closing force of the operating handle in the products with higher rated current level (50a and above). Only when the operating force reaches a certain value, In order to make the contact close and make the contact close at a certain high speed, the influence of human factors on the contact closing speed is relatively eliminated, the electric wear loss of the contact is reduced, and the service life and reliability of the circuit breaker are improved. The comprehensive effect of NBT1-63 series small air switch is characterized by good current limiting characteristic, short arcing time, long service life and reliable performance.

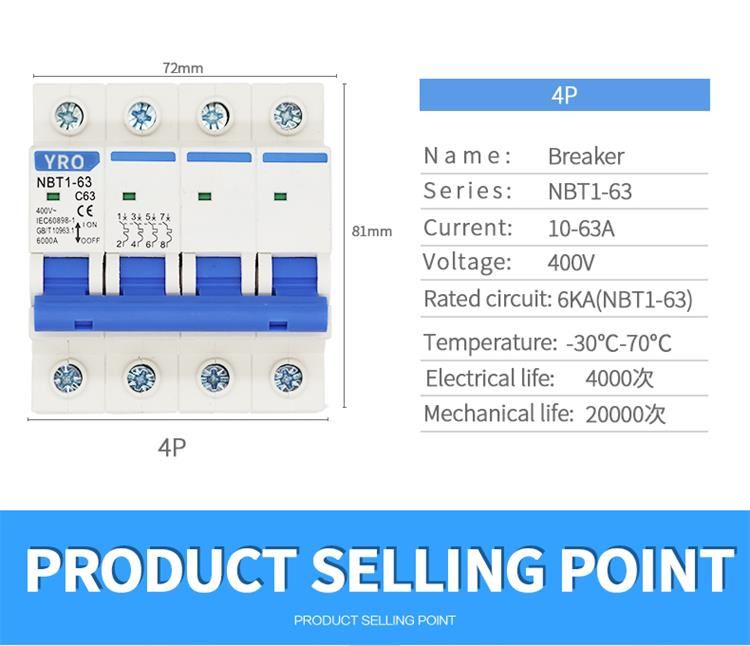

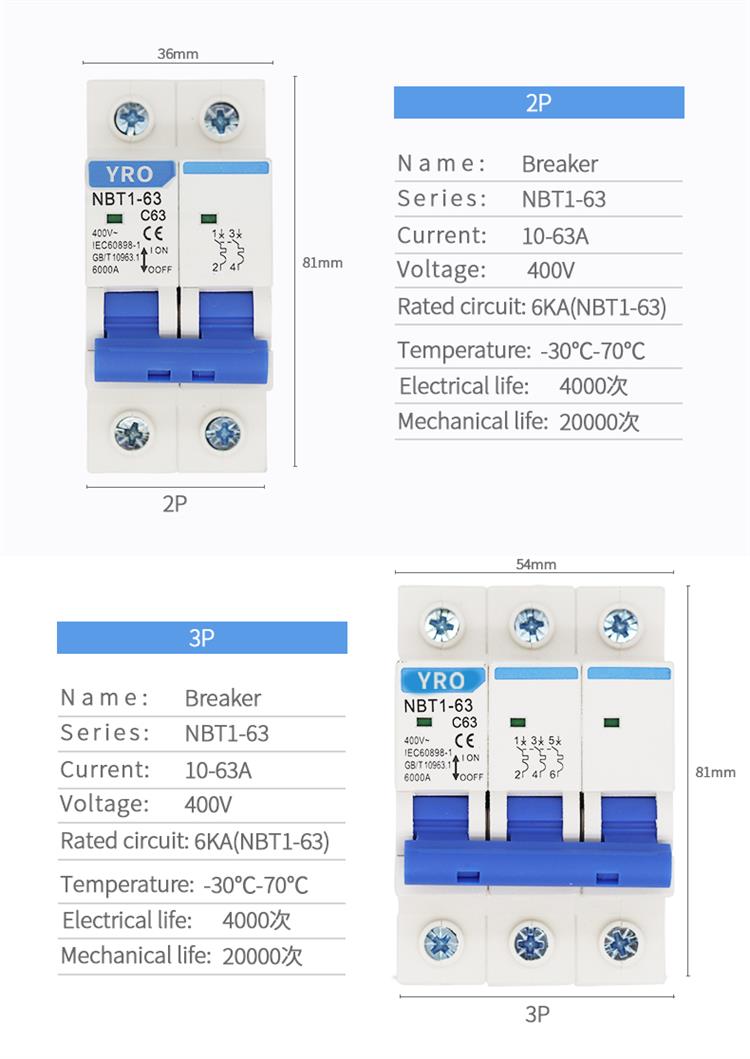

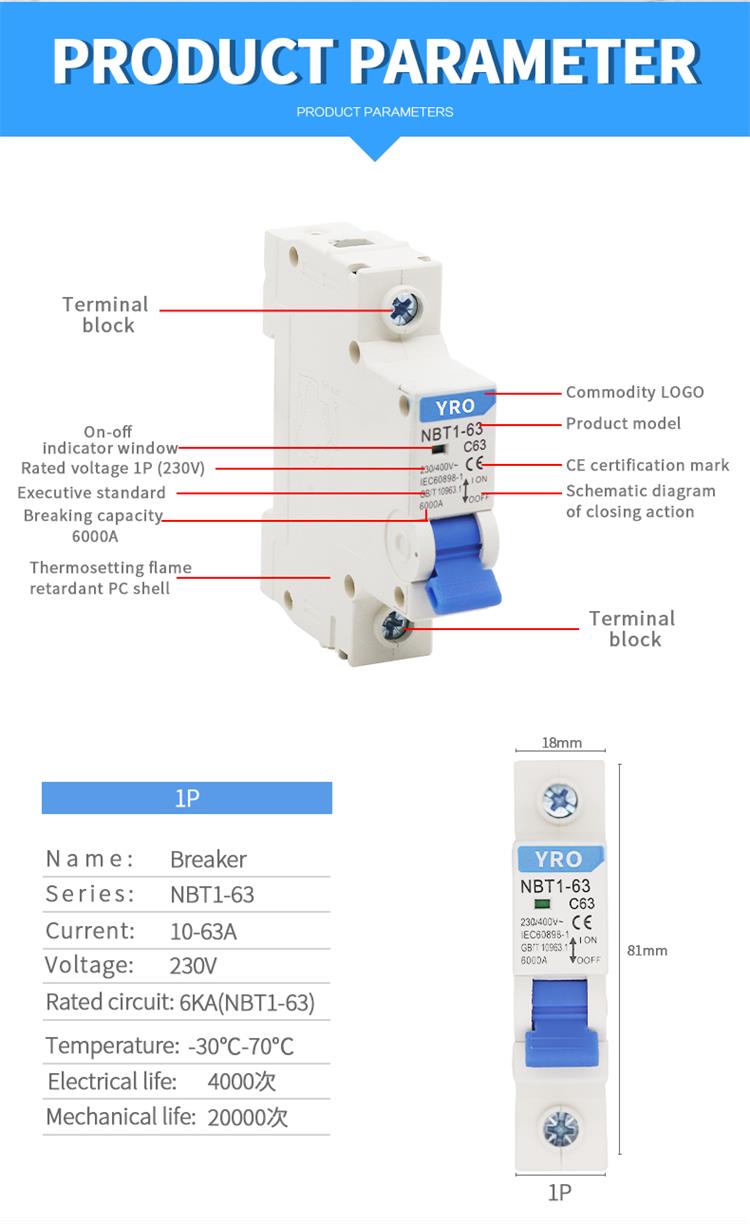

Product Specification



Product Model

Rated Current(A)

Pole

Rated

Voltage(V)

Breaking Capacity

Tripping curve

NBT1-63

1,3,6,10,16,20,25,32,40,50,63

1,2

230/240

6kA

B,C,D

1,2

230/400,240/415

2,3,4

400/415





Product Features



1. Protection grade: IP20B (terminal), IP40 (installed in distribution box)

2. Ambient temperature: – 35 ° C to + 70 ° C

3. Storage environment temperature: – 40 ° C ~ + 85 ° C

4. Double lock clamp structure





An innovative enterprise integrating scientific research, production and sales is committed to the R & D, promotion and popularization of DC side electrical protection elements in photovoltaic power generation system.

People oriented, return enterprises and benefit society. YRO is willing to make progress and grow with you.

Minimum order quantity starts from 1pcs.

Lead time of most parts is less than 3 days.





The company scientific design, professional manufacturing, good cost-effective, the company products have been favored by the majority of domestic users, sales network throughout the country. The company insists on “people-oriented” and pays attention to personnel training. With the experience of the world top 500 and domestic advanced large enterprises, the human resource management mode suitable for its own characteristics is established, and learning organization is built to create opportunities, platforms and development space for excellent talents. At present, the company has a vigorous, pioneering and enterprising high-quality talent team.





FAQ



Q1: Can water in a breaker box cause a fire?

A1: The increased resistance in the circuit that corroded terminals and connections can cause produces heat, which may eventually ignite a fire. Water getting inside the panel box can also cause circuit breakers to malfunction. Although the damage may not be visible, opening the panel box yourself could be dangerous.



Q2: How do you fix an overloaded breaker?

A2: Solutions to Overloads. The immediate solution to an overload is simple: Shift some plug-in devices from the overloaded circuit to another general-purpose circuit. Then flip the circuit breaker back on or replace the fuse and turn stuff back on.



Q3: How do you split the load on a breaker?

A3: If you split a single circuit breaker into two and run them in parallel with each other then the breaker pair *SHOULD* allow twice as much current into that portion of the circuit without tripping.



Q4: Can you overload a breaker panel?

A4: Make sure you do not overload your service panel. A panel’s total amperage is printed near or on the main circuit breaker, which controls all the circuits in the panel. For example a 100-amp service panel may have circuit breakers that add up to more than 200 amps. This is normal.



Q5: What happens when a breaker is overloaded?

A5: Exceeding the rated load for the circuit wiring causes the circuit breaker to trip, shutting off the power to the entire circuit. If there were no breaker in the circuit, an overload would cause the circuit wiring to overheat, which could melt the wire insulation and lead to a fire.
