Specification:
|
Model |
YRL7-63LB |
|||
|
Electrical Features |
||||
|
Mode |
Electromagnetic |
|||
|
Type |
AC,A |
|||
|
Rated current In |
6,8,10,13,16,20,25,32,40A,50A,63A,100A |
|||
|
Poles |
1P+N/2P/3P+N/4P |
|||
|
Rated voltage Ue |
230/240V/400/415V~ |
|||
|
Insulation voltage Ui |
500V |
|||
|
Rated frequency |
50/60HZ |
|||
|
Rated residual operating current(n) |
30,100,300mA |
|||
|
Break time under |
≤0.1s |
|||
|
Rated breaking capacity |
6,000A |
|||
|
Energy limiting class |
3 |
|||
|
Rated impulse withstand voltage(1.5/50) Uimp |
4,000V |
|||
|
Dielectric test voltage at ind. Freq. for 1min |
2kV |
|||
|
Pollution degree |
2 |
|||
|
Thermo-magnetic release characteristic |
B.C |
|||
|
Mechanical Features |
||||
|
Electrical life |
4,000 Cycles |
|||
|
Mechanical life |
10,000 Cycles |
|||
|

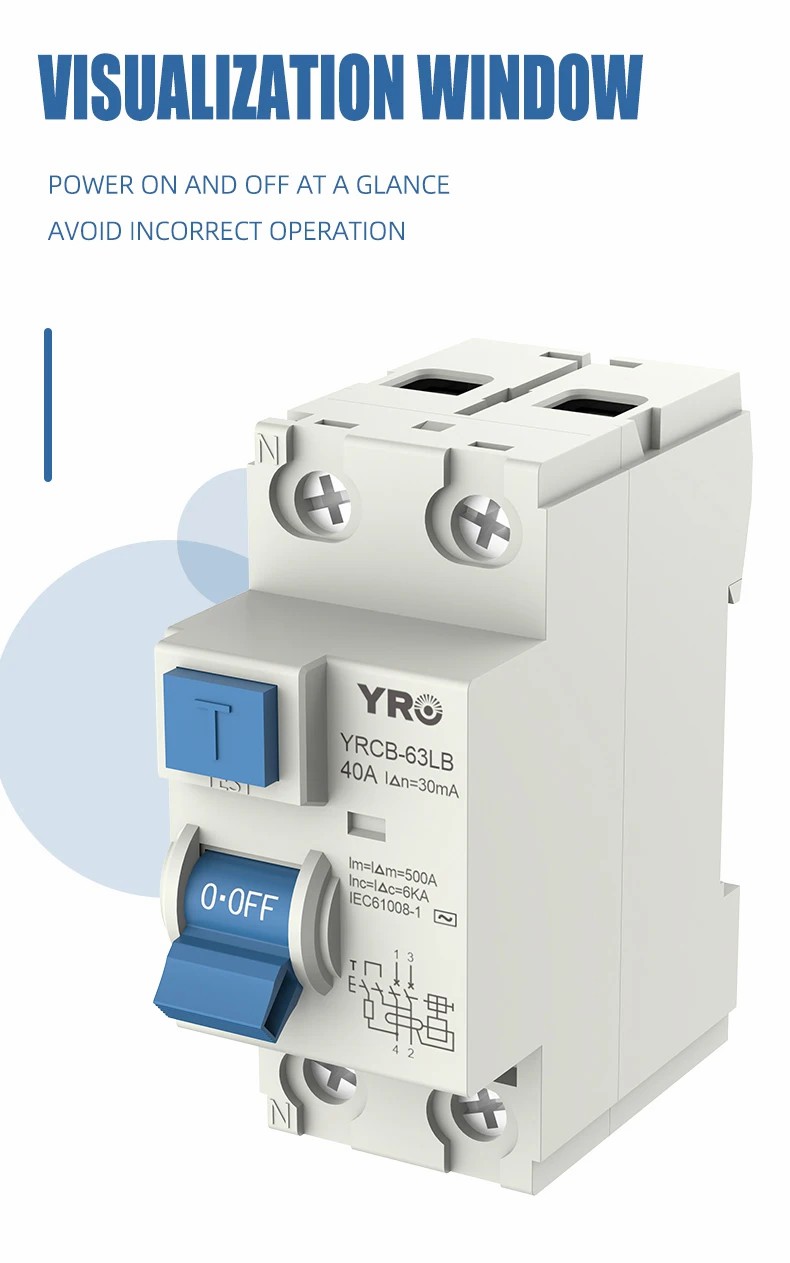

Contact position indicator |
Yes |
|||
|
Protection degree |
IP20 |
|||
|
Reference temperature for setting of thermal element |
30℃ |
|||
|
Ambient temperature(with daily average≤35℃) |
-5℃~+40℃ |
|||
|
Storage temperature |
-25℃~+70℃ |
|||
|
Terminal connection type |
Cable/Pin-type busbar/ |
|||
|
U-type busbar |
||||
|
Terminal size top/bottom for cable |
25mm2 18-3AWG |
|||
|
Terminal size top/bottom for busbar |
25mm2 18-3AWG |
|||
|
Tightening torque |
2.5Nm 22ln-lbs |
|||
|
Mounting |
On DIN rail EN60715(35mm) |
|||
|
by means of fast clip device |
||||
|
Connection |
From top and bottom |
|||
|
Combination with accessories |
||||
|
Auxiliary contact |
OF |
|||
|
Alarm contact |
FB |
|||
|
Shunt release |
MX |
|||
Exhibition:
Company Benefits:
FAQ:
Q:When I can receive quotation and detail information after send the enquiry?
A: Reply will be sent in 24hours.
Q:What's the difference between you and other suppliers?
A: We have our own design box with PC/ABS material.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:Can I get a sample for test before place order?
A:Of course!
Q:How's the delivery?Because I really need them is urgently?
A: Samples cost 5-7 days. Bulk order cost 12-15 days.
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C, Trade Assurance.
