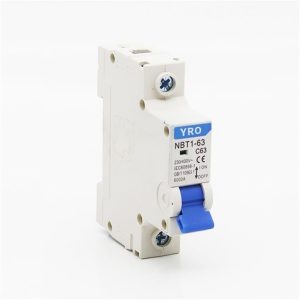

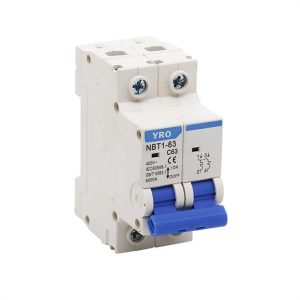

Double Pole 63a Mcb

NBT1-63 series small air switch has skillfully set the threshold of closing force of the operating handle in the products with higher rated current level (50a and above). Only when the operating force reaches a certain value, In order to make the contact close and make the contact close at a certain high speed, the influence of human factors on the contact closing speed is relatively eliminated, the electric wear loss of the contact is reduced, and the service life and reliability of the circuit breaker are improved. The comprehensive effect of NBT1-63 series small air switch is characterized by good current limiting characteristic, short arcing time, long service life and reliable performance.

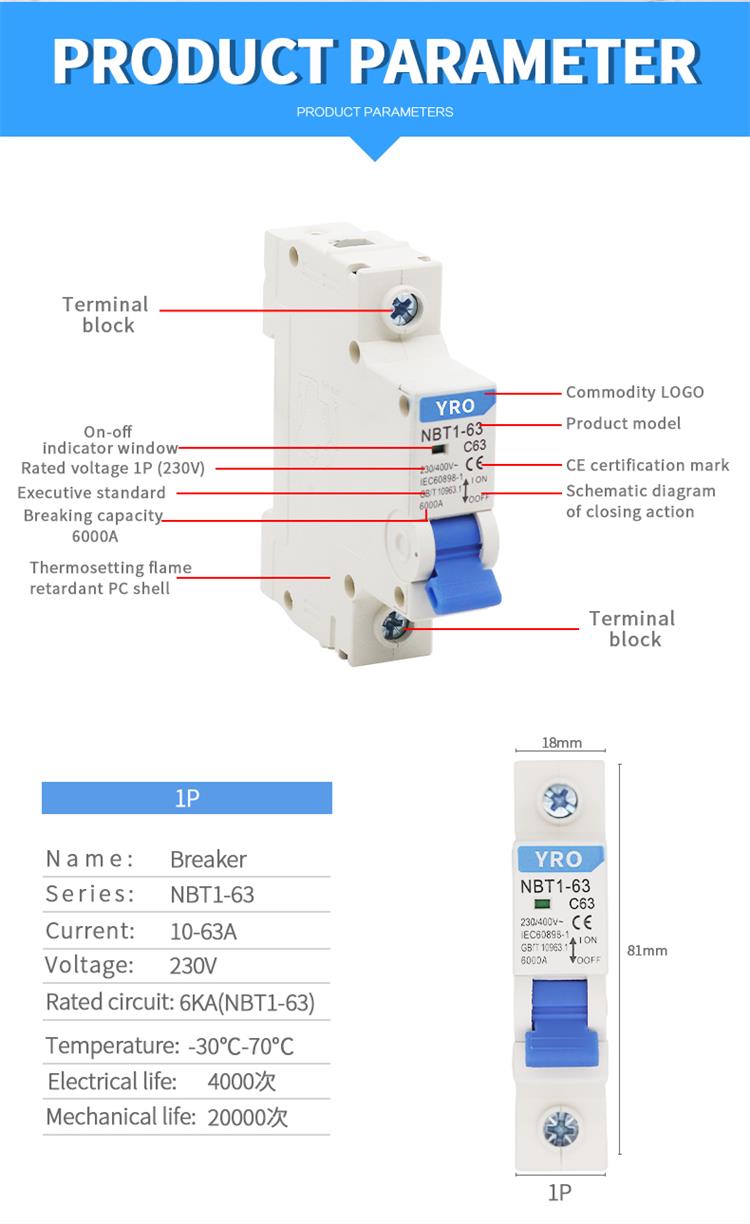

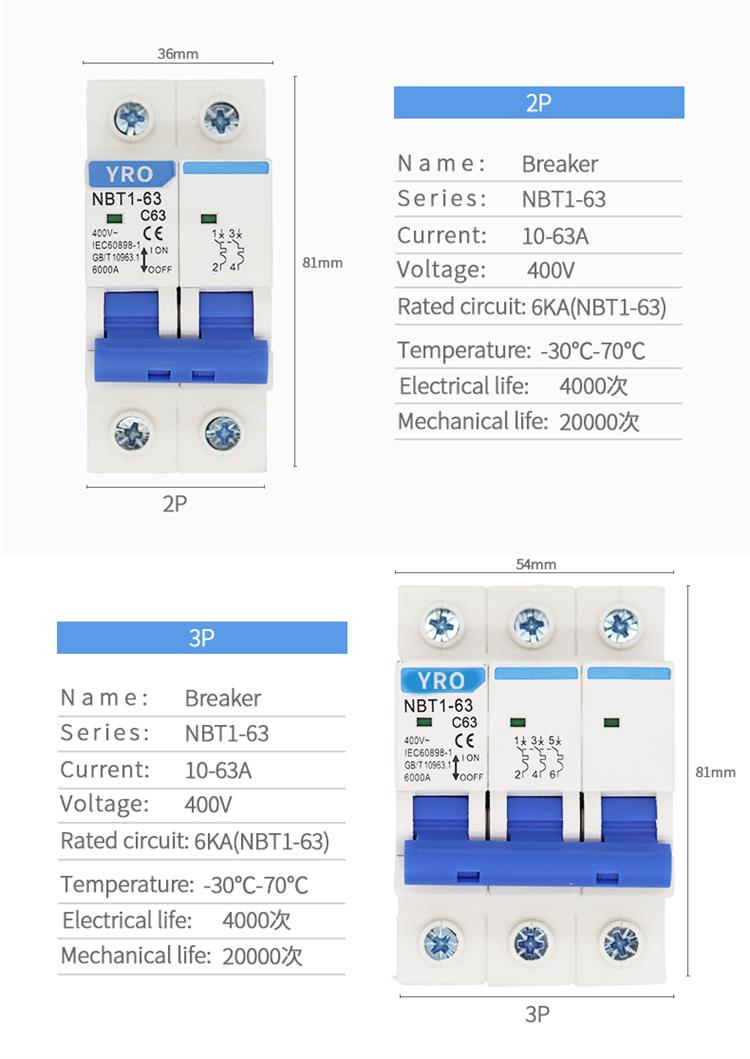

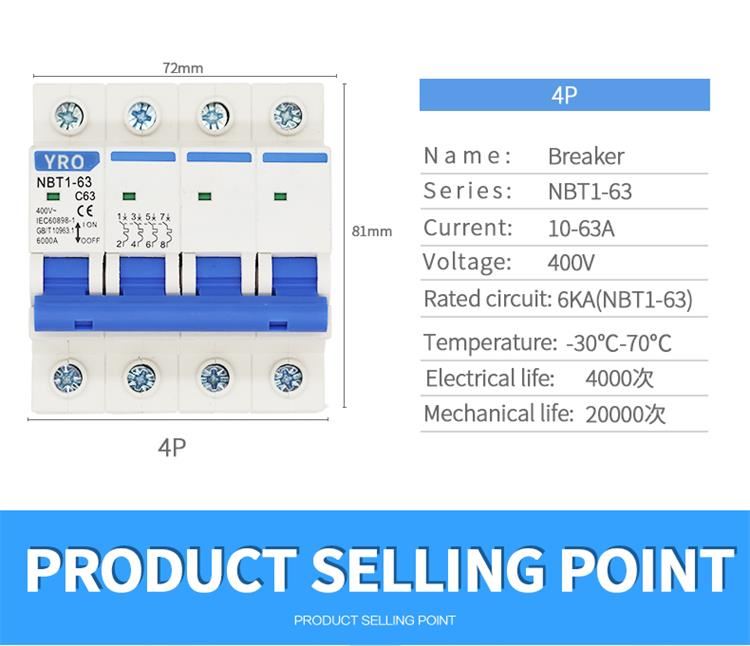

Product Specification

Product Features

1. As many as 7 kinds of independent installation accessories, the expansion function is stronger, to meet the diversified needs of customers

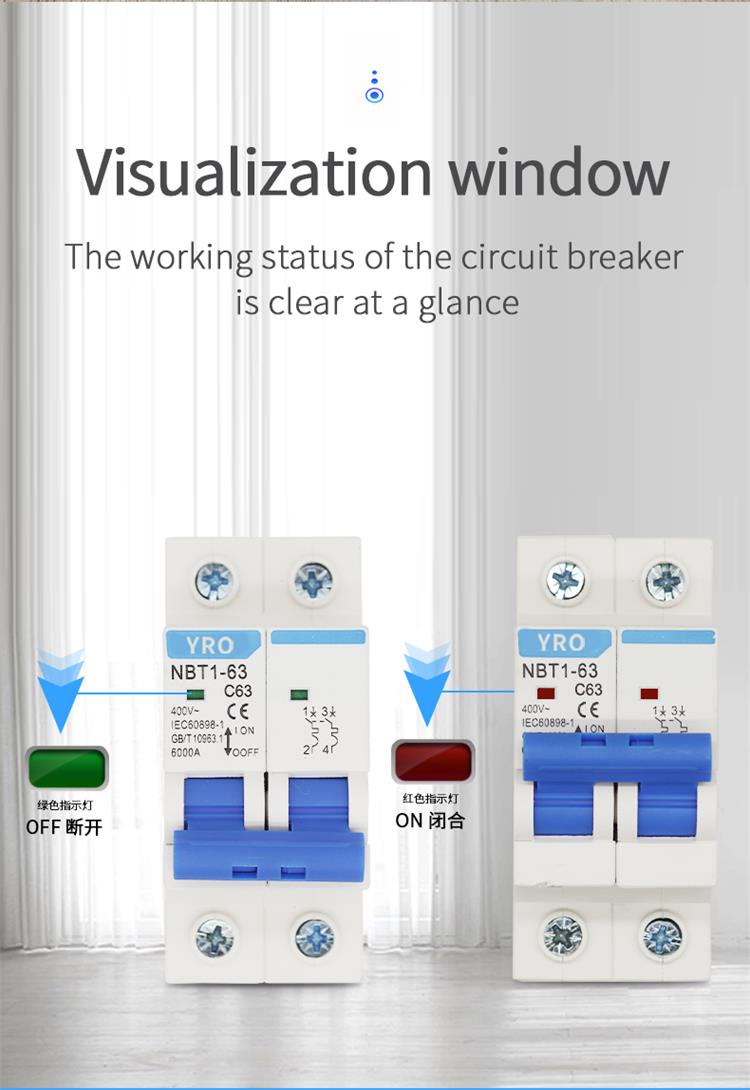

2. The contact status indicator window is added to the whole series of products to reliably indicate the opening and closing status of the circuit breaker.

3. The whole series of unified industrial design, more beautiful appearance

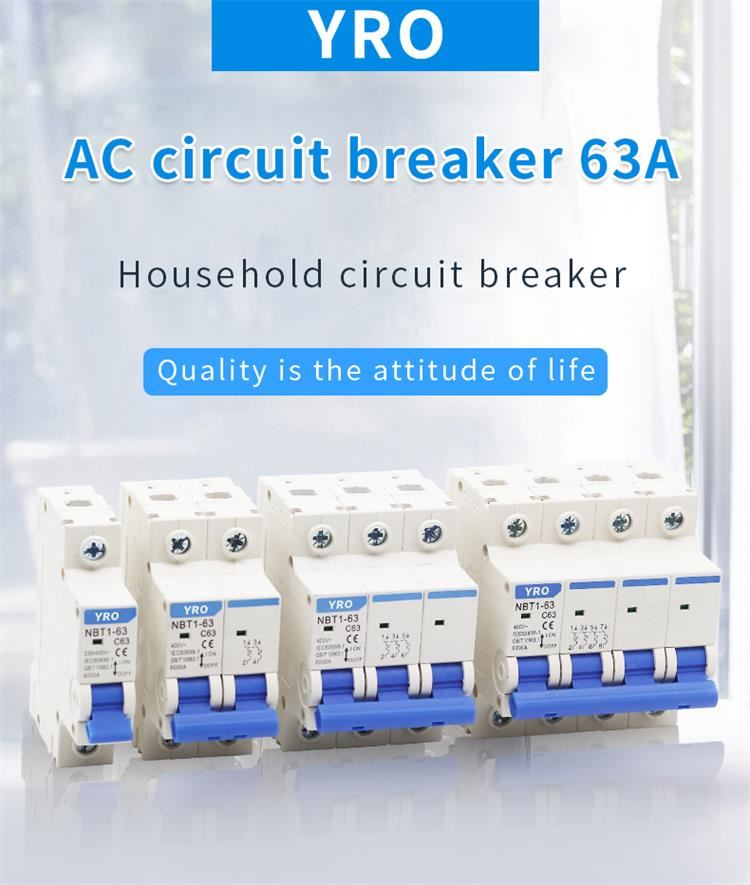

4. NBT1 series products include 63A, 125A three kinds of shell frame air switch switch, give users a complete solution

Our R&D team keeps developing new items for customers to ensure that we keep the flow of new hot selling point .If you have any questions or suggestions ,please do not hesitate to contact us for further assistance.

Design for special packing

Products printing and logo OEM

The make customers satisfied all the time via a full range of services ,including design service, sourcing solutions, products sampling, research and development, quality, control, certification, delivery and after sales

Today, with the country in full swing in the promotion of new energy vehicles to achieve green transport, we consistently adhere to provide most reliable insurance concept for the electricity in the world, and actively develop highly interchangeable and highly versatile fuses for new energy autos, which are of various specifications for different current and voltage classes in line with international standards.

Our company, in a scientific and rigorous attitude, makes obligations for low carbon, environmental protection and ecological environment put forwarded by the country.

FAQ

Q1: How many amps does it take to trip a 15 amp breaker?

A1: An important note to remember is that circuit breakers can only handle about 80% of their overall amperage. That means a 15-amp circuit breaker can handle around 12-amps and a 20-amp circuit breaker can handle about 16 amps.

Q2: Is it hard to replace a breaker switch?

A2: Although the process is not difficult—in fact, it's considerably easier than many routine wiring projects—the main power bus bars will be exposed as you replace a circuit breaker and there is a danger of serious shock if you're not careful.

Q3: What does a tripped circuit breaker mean?

A3: An overloaded circuit is the most common reason for a circuit breaker tripping. It occurs when a circuit is attempting to draw a greater electrical load than it is intended to carry. Hence, the breaker or fuse is intended to trip or blow before the circuit wires can heat to a dangerous level.

Q4: Does a breaker box need to be grounded?

A4: Without a grounding wire, the circuit breakers on your electrical panel board may not work properly. Because the wire touches the metal enclosure, the circuit would not be broken and the circuit breaker would not trip to cut power to the circuit. If you touched the metal, you would be shocked.

Q5:How does your company do regarding the quality control?

A5: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. IQC inspects the components, the patrol inspection is done during production and all the goods to be tested 100% before leaving the factory.
