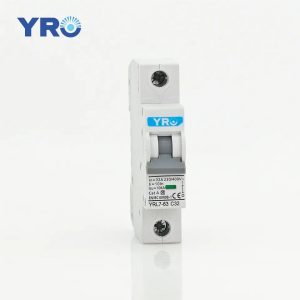

Electrical Circuit Breaker Switch YR17-63 1P AC230V

Category List

Product Description

YRL7-63&YRL7-63Pro Series AC MCB circuit breaker series is used in lighting distribution system ormotor distribution system for protecting overload and short-circuitin the system.
The product is novel in structure, light in weight,reliable and excellent in performance. It has high breaking capacity, YRL7-63 series up to 6kA and YRL7-63Pro series up to 10kA.
Its case and items are adopted with high fire-resistant and shockproof plastics.The product, with long life, is mainly used in AC 50/60Hz single-pole 230V or two, three, four-pole 400V circuit for overload and short circuit protection as well as for unfrequented on-and-off switching electric equipment and lighting circuit in normal case.

Technical Data

Type	YRL7-63&YRL7-63Pro
Poles	1P 2P 3P 4P
Rated current	1/2/3/4/6/8/10/16/20/25/32/40/50/63
Rated voltage	230/240V; 400V/415V AC
Characteristic capacity	4.5KA/6KA/10KA
Electrical life	6000times
Mechanical life	20000times
Tropicalizes	Treatment 2
Curve	B,C,D
Certificate	CE IEC CB UKCA KEMA
Standards	IEC 60898-1
Rated impulse withstand voltage	6.2kV
Connection terminal	Screw terminal / Pillar terminal with calmp
Connection capacity	Rigid conductor up to 25mm²
Fastening torque	2.0Nm
Installation	On symmetrical DIN rail 35mm / Panel mounting

— Solar power system: At the connection between solar photovoltaic panels and the grid, the YRL7-63DC circuit breaker can monitor and cut off the current to prevent overload and short circuit.

— Wind power generation system: Between the wind turbine output current and the transmission line, the YRL7-63DC circuit breaker can be used to detect and isolate potential faults to ensure the safe operation of the circuit.

— Electric vehicle charging piles: For DC fast charging piles, YRL7-63DC circuit breaker can be used to control the current of charging equipment and cut off the circuit when needed to protect charging piles, electric vehicles and the power grid.

— Industrial automation system: In the DC electrical system of factories and industrial equipment, YRL7-63DC circuit breaker can provide circuit protection and cut off the circuit when the current is abnormal to ensure the safe operation of the equipment.

— New energy storage system: In battery energy storage systems or other new energy systems, the YRL7-63DC circuit breaker can monitor and cut off the current to protect the battery and system from overload or short circuit.

It is important to select and install the appropriate circuit breaker based on specific application requirements and safety regulations. If you need detailed information for a specific application scenario, please contact us and we will provide you with the most direct product services.
