●Protect circuits from overcurrent.

●Overload protection and short-circuit protection.

●Widely used in solar PV photovoltaic systems.

●Structure, small size and convenient use.

●Passed KEMA, CE, TUV certification.

Product Description

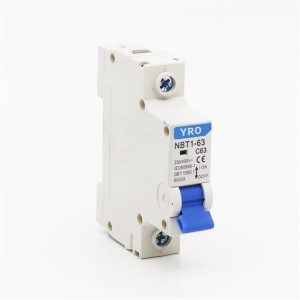

NBT1-63 series (hereinafter referred to as circuit breaker) is a new product developed by our company. NBT1-63 series small air switch has reliable performance, accurate protection characteristics, high breaking capacity and small volume. It is the latest product in the 21st century. NBT1-63 series small air switch is mainly used for over-current protection of power line facilities and electrical equipment in buildings and similar places with AC frequency of 50 Hz, rated voltage of 230V / 400V and rated working current of no more than 63A. It can also be used for infrequent on-off operation.

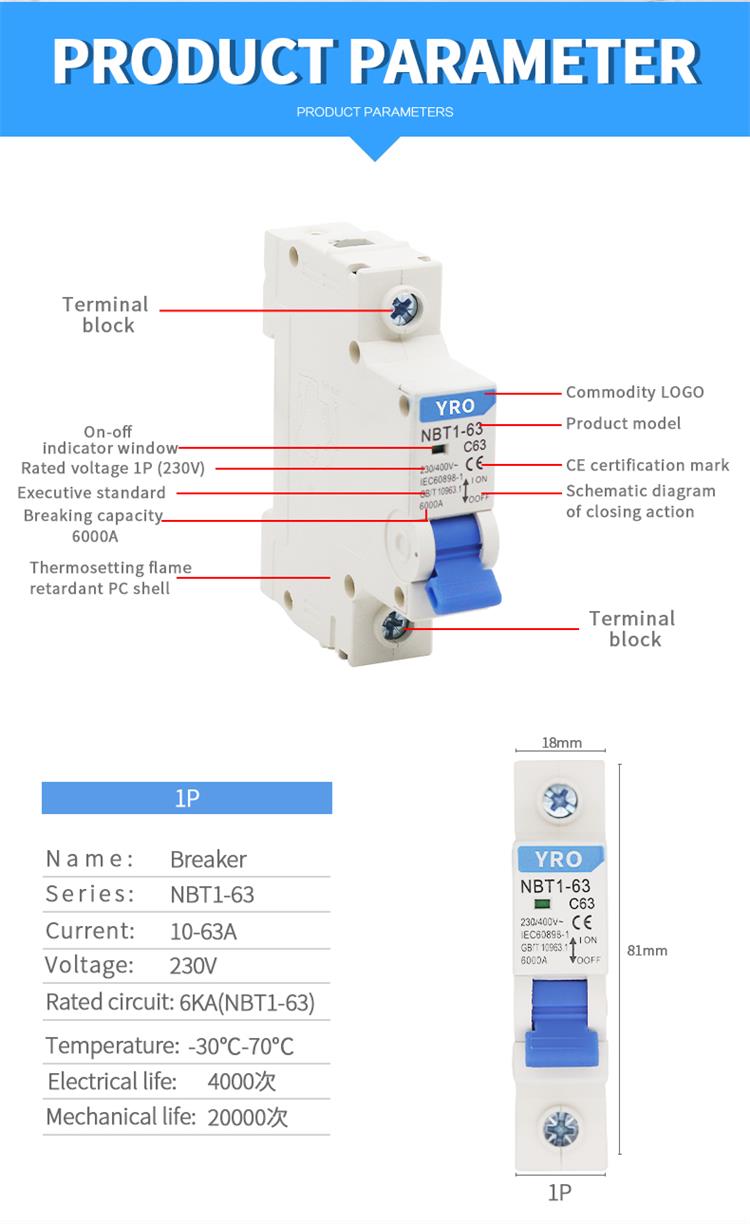

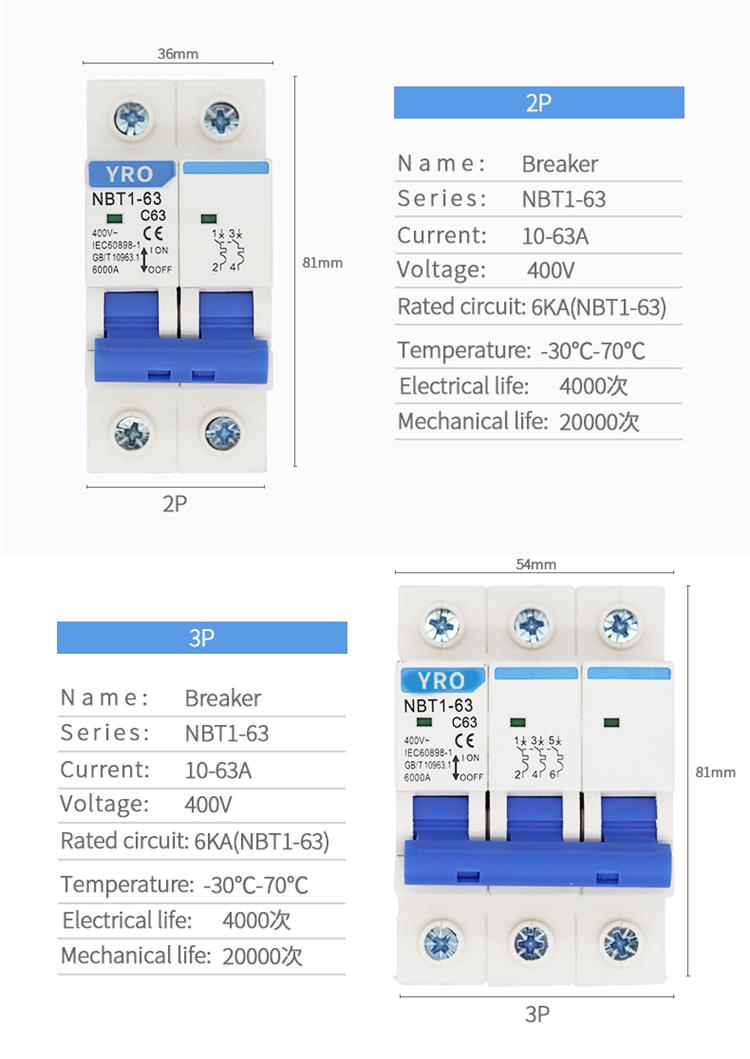

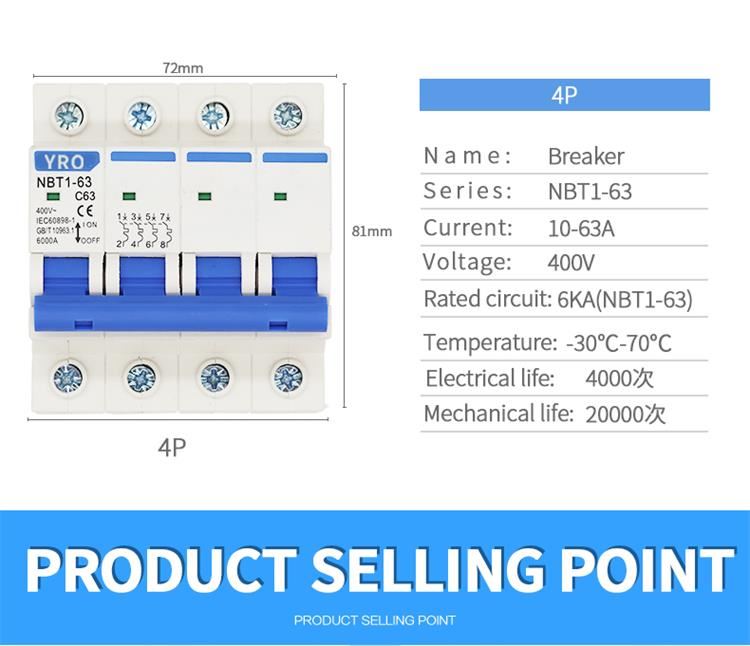

Product Specification



Product Model

Rated Current(A)

Pole

Rated

Voltage(V)

Breaking Capacity

Tripping curve

NBT1-63

1,3,6,10,16,20,25,32,40,50,63

1,2

230/240

6kA

B,C,D

1,2

230/400,240/415

2,3,4

400/415

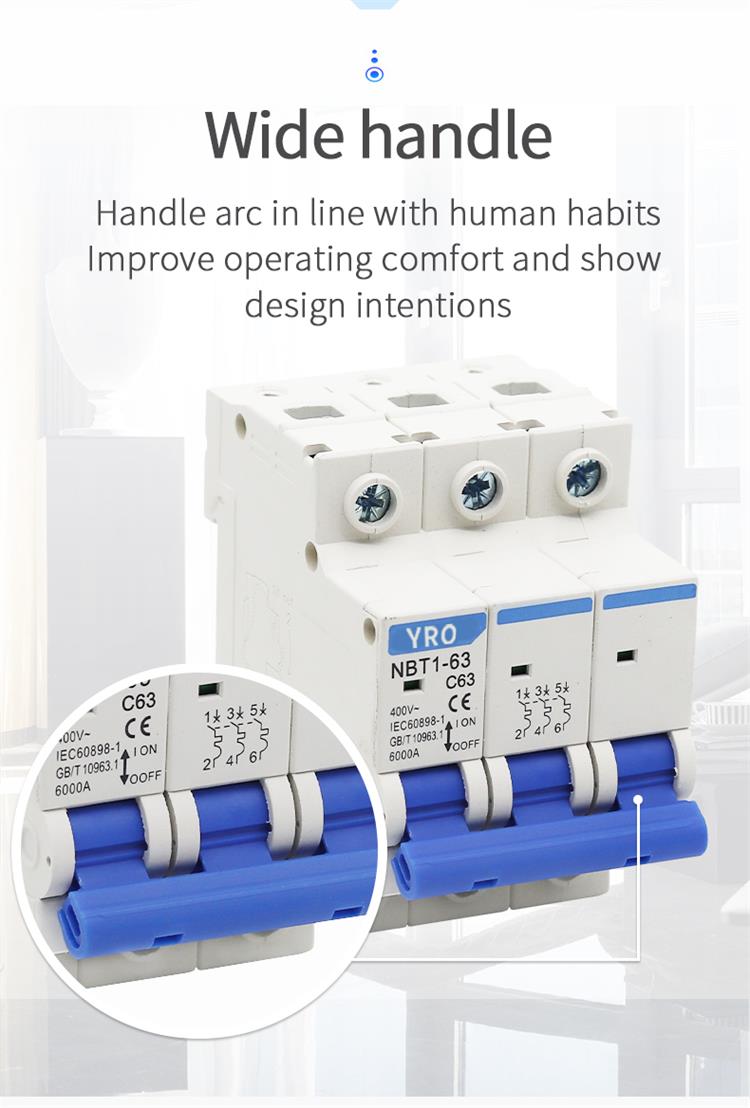

Product Features



1. Universal model, widely used

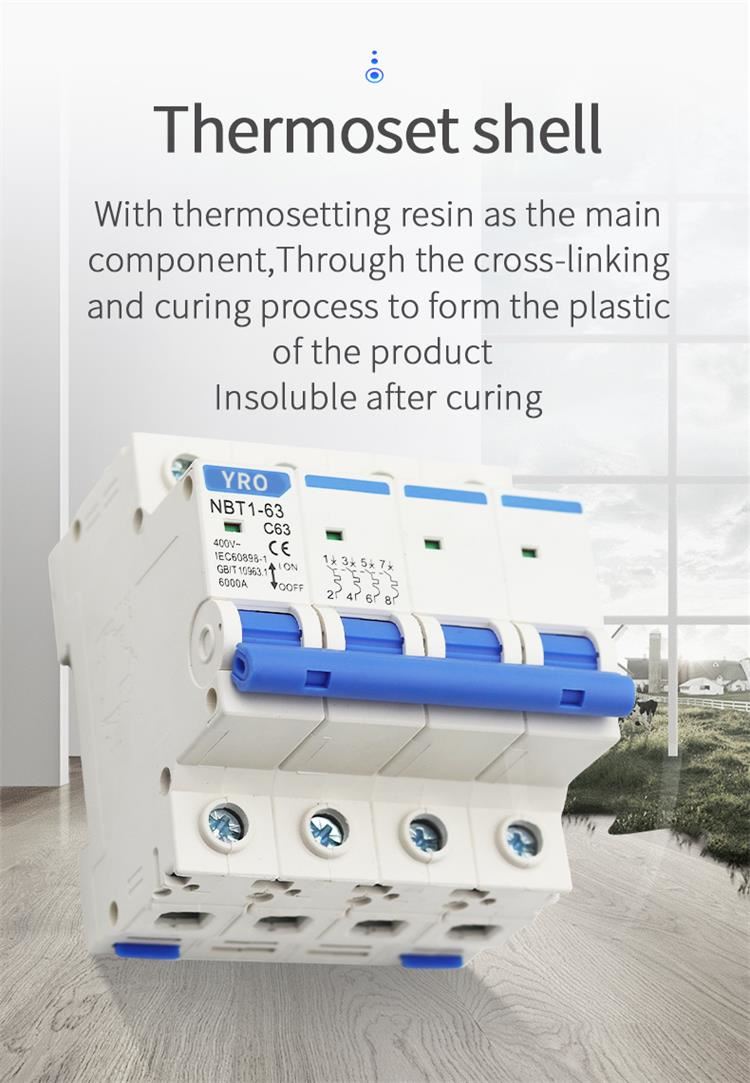

2. Adopt high flame retardant and high temperature resistant materials

3. The circuit breaker has good current limiting characteristics, short arcing time, high breaking capacity, accurate protection characteristics, long service life and reliable performance

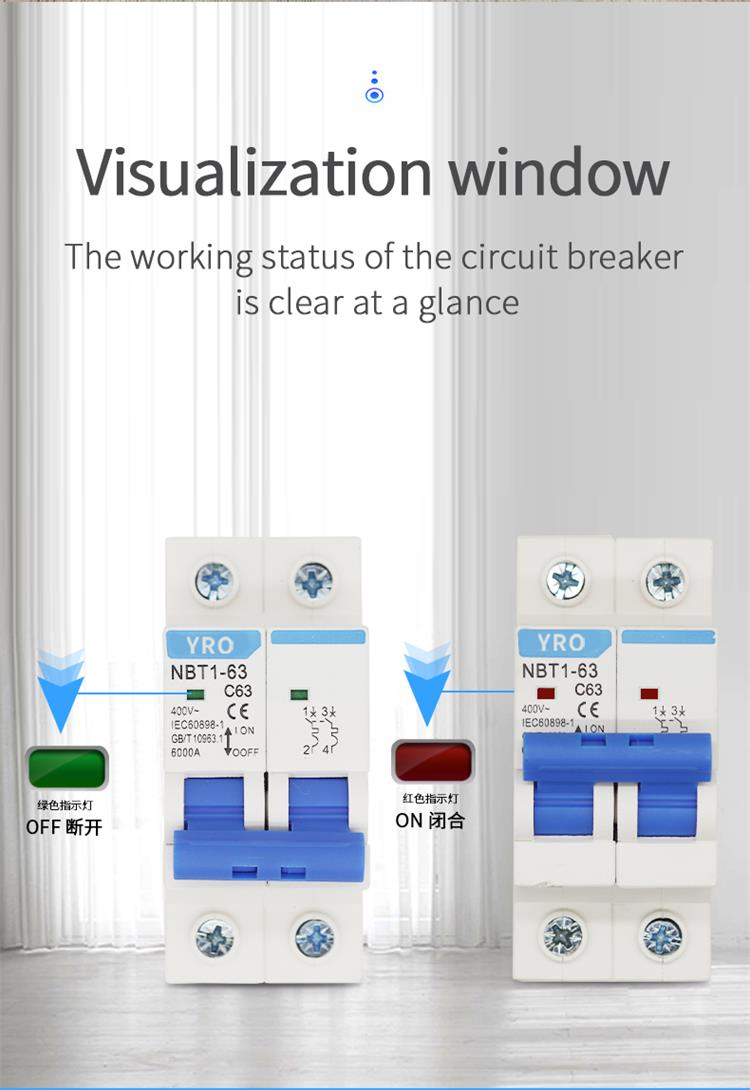

4. It has obvious indication of contact position status





Lead time of most parts is less than 3 days.

You’ll get price in 4 hours after your inquiry.

Top 10 supplier in WENZHOU inventory.

12 Years Experience in this field.





YUEQING YRO ELECTRIC CO.,LTD was established in June 2008. With the integration of technology, industry and trade as the link, it provides products and services in the new energy, electrical automation and distribution industries. It is determined to become a high-end brand service provider of low-voltage electrical appliances. The standardized system and humanized management mode are the company's usual management responsibilities. The company adheres to the people-oriented and harmonious development, and the vigorous development of the enterprise has created a broad development platform for the employees, and truly achieves the goal of "using talents to achieve career and career to achieve talents".





FAQ



Q1: Where does the white wire go in a breaker box?

A1: If you're installing a standard breaker, the neutral (white) wire connects here, too. If you're installing an arc-fault circuit interrupter (AFCI) breaker, you'll connect the neutral to the breaker and run a “pigtail” wire to the neutral bus.



Q2: What is circuit breaker with diagram?

A2: A circuit breaker is an automatically operated electrical switch designed to protect an electrical circuit from damage caused by excess current, typically resulting from an overload or short circuit. Its basic function is to interrupt current flow after a fault is detected,



Q3: Where does the ground wire go in a breaker box?

A3: For service entrance, in the United States, the ground wire is bonded to the neutral bus bar and to the ground bus bar—if present—or the can. You will often times find a breaker panel combined with service entrance hardware. In any sub-panel, the ground wire is bonded to the ground bus bar or the can.



Q4: Is a tripped breaker dangerous?

A4: A tripped breaker is often just a one-time annoyance, but it can indicate potentially dangerous problems with your home's electrical system. Older homes in particular were not designed to handle today's increasing electrical demand.



Q5: Can a circuit breaker be reset automatically?

A5: The circuit breaker can simply be reset following an interruption. This is why fuses are increasingly being replaced by automatic circuit breakers.
