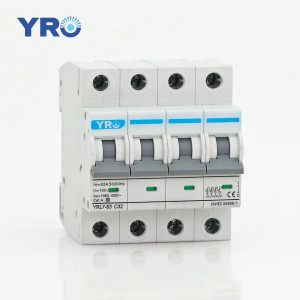

Miniature Circuit Breaker YR17-63 4P AC400V

YRL7-63&YRL7-63Pro Series AC MCB circuit breaker series is used in lighting distribution system ormotor distribution system for protecting overload and short-circuitin the system. The product is novel in structure, light

Miniature Circuit Breaker YR17-63 4P AC400V

Read More Contact Us

YRL7-63&YRL7-63Pro Series AC MCB circuit breaker series is used in lighting distribution system ormotor distribution system for protecting overload and short-circuitin the system.
The product is novel in structure, light in weight,reliable and excellent in performance. It has high breaking capacity, YRL7-63 series up to 6kA and YRL7-63Pro series up to 10kA.
Its case and items are adopted with high fire-resistant and shockproof plastics.The product, with long life, is mainly used in AC 50/60Hz single-pole 230V or two, three, four-pole 400V circuit for overload and short circuit protection as well as for unfrequented on-and-off switching electric equipment and lighting circuit in normal case.



Technical Data

Type

YRL7-63&YRL7-63Pro

Poles

1P 2P 3P 4P

Rated current

1/2/3/4/6/8/10/16/20/25/32/40/50/63

Rated voltage

230/240V; 400V/415V AC

Characteristic capacity

4.5KA/6KA/10KA

Electrical life

6000times

Mechanical life

20000times

Tropicalizes

Treatment 2

Curve

B,C,D

Certificate

CE IEC CB UKCA KEMA

Standards

IEC 60898-1

Rated impulse withstand voltage

6.2kV

Connection terminal

Screw terminal / Pillar terminal with calmp

Connection capacity

Rigid conductor up to 25mm²

Fastening torque

2.0Nm

Installation

On symmetrical DIN rail 35mm / Panel mounting



— Solar power system: At the connection between solar photovoltaic panels and the grid, the YRL7-63DC circuit breaker can monitor and cut off the current to prevent overload and short circuit.

— Wind power generation system: Between the wind turbine output current and the transmission line, the YRL7-63DC circuit breaker can be used to detect and isolate potential faults to ensure the safe operation of the circuit.

— Electric vehicle charging piles: For DC fast charging piles, YRL7-63DC circuit breaker can be used to control the current of charging equipment and cut off the circuit when needed to protect charging piles, electric vehicles and the power grid.

— Industrial automation system: In the DC electrical system of factories and industrial equipment, YRL7-63DC circuit breaker can provide circuit protection and cut off the circuit when the current is abnormal to ensure the safe operation of the equipment.

— New energy storage system: In battery energy storage systems or other new energy systems, the YRL7-63DC circuit breaker can monitor and cut off the current to protect the battery and system from overload or short circuit.



It is important to select and install the appropriate circuit breaker based on specific application requirements and safety regulations. If you need detailed information for a specific application scenario, please contact us and we will provide you with the most direct product services.
