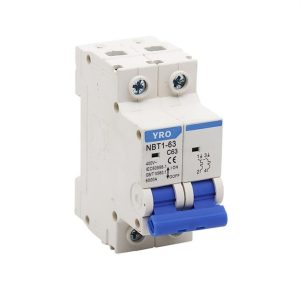

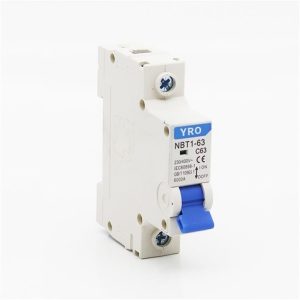

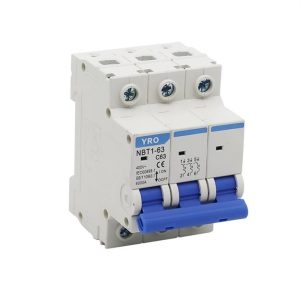

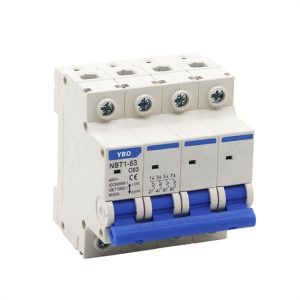

Single Phase Miniature Circuit Breaker

NBT1-63 series (hereinafter referred to as circuit breaker) is a new product developed by our company. NBT1-63 series small air switch has reliable performance, accurate protection characteristics, high breaking capacity

Single Phase Miniature Circuit Breaker

●Protect circuits from overcurrent.

●Overload protection and short-circuit protection.

●Widely used in solar PV photovoltaic systems.

●Structure, small size and convenient use.

●Passed KEMA, CE, TUV certification.

Read More Contact Us

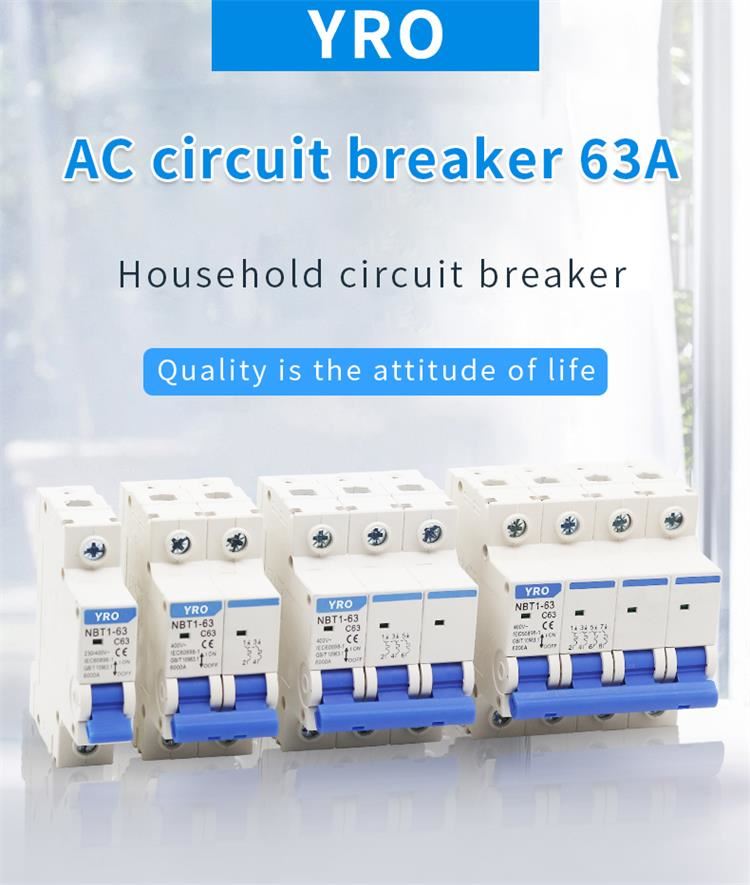

NBT1-63 series (hereinafter referred to as circuit breaker) is a new product developed by our company. NBT1-63 series small air switch has reliable performance, accurate protection characteristics, high breaking capacity and small volume. It is the latest product in the 21st century. NBT1-63 series small air switch is mainly used for over-current protection of power line facilities and electrical equipment in buildings and similar places with AC frequency of 50 Hz, rated voltage of 230V / 400V and rated working current of no more than 63A. It can also be used for infrequent on-off operation.

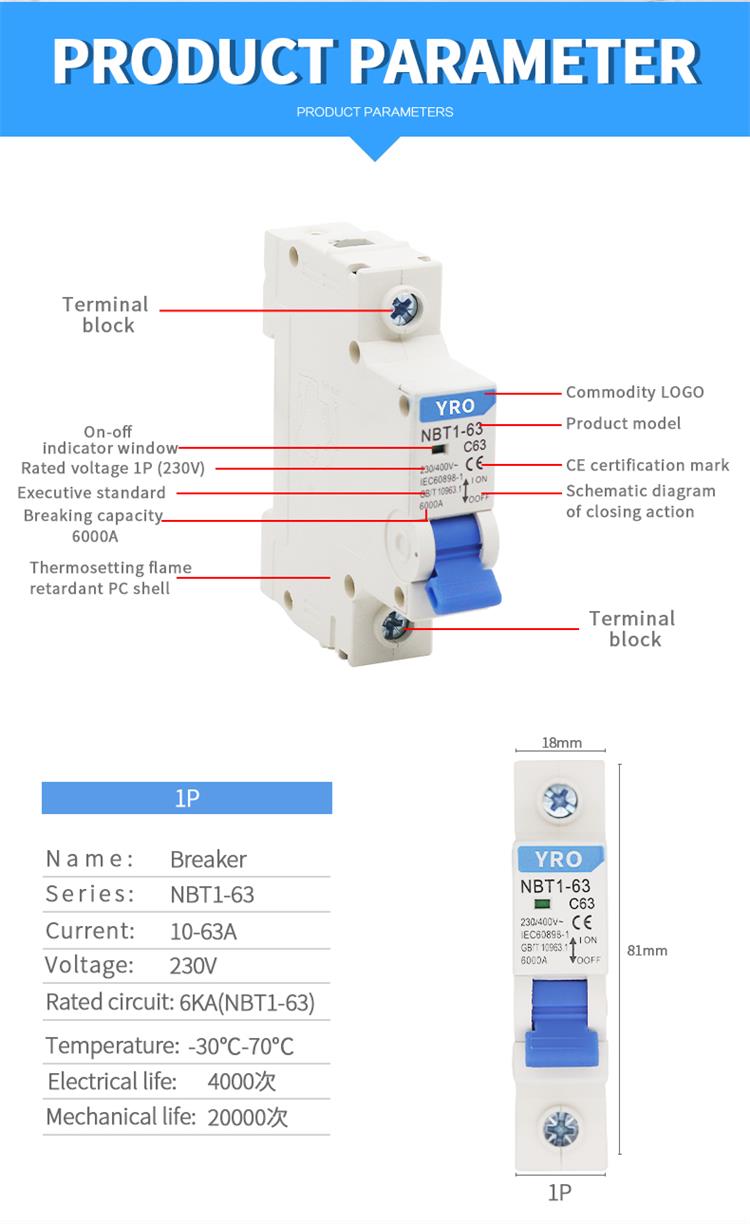

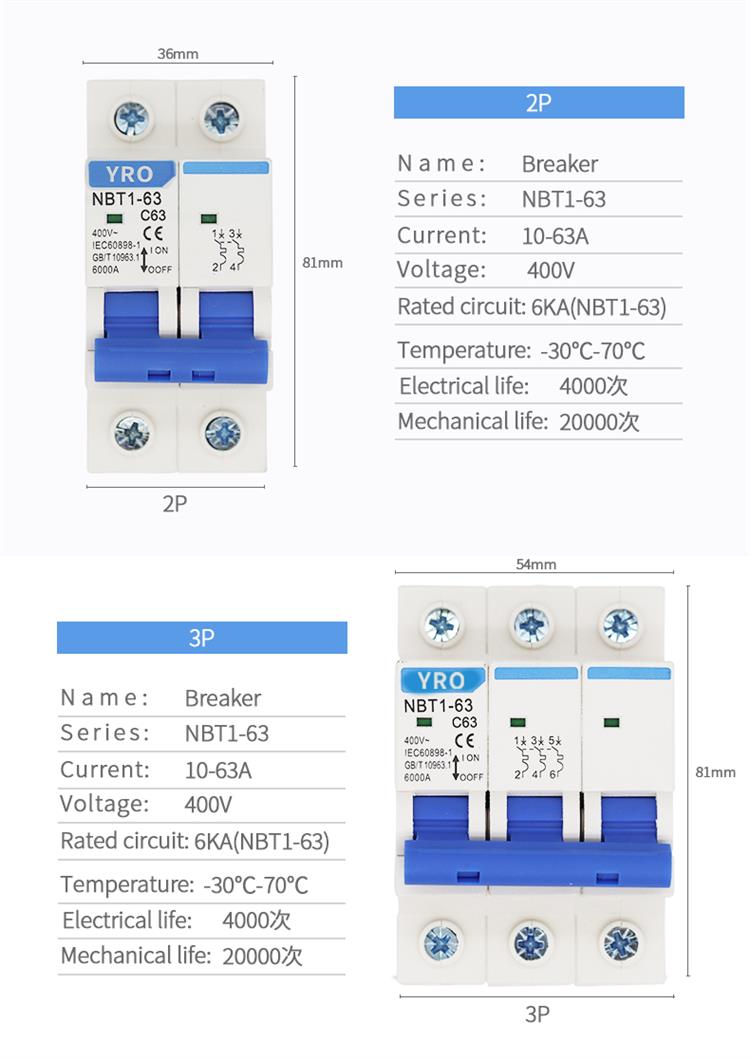

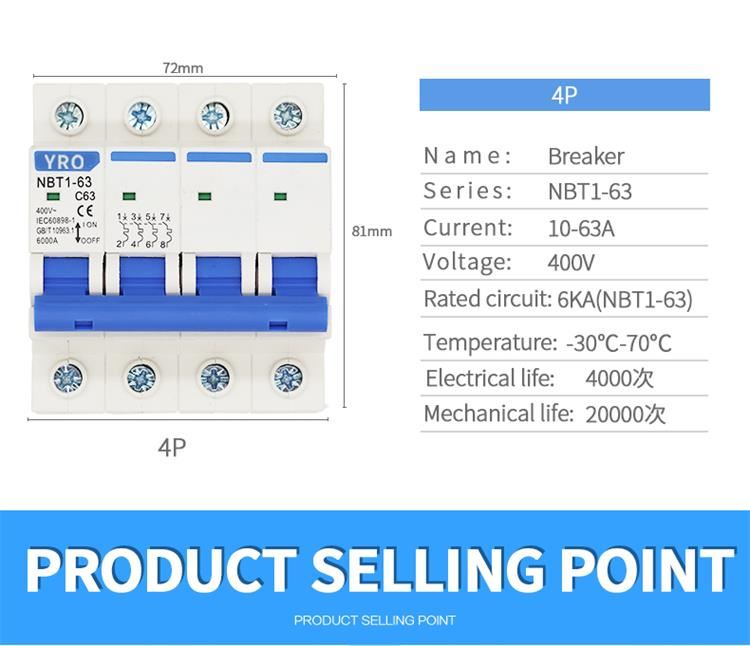

Product Specification



Product Model

Rated Current(A)

Pole

Rated

Voltage(V)

Breaking Capacity

Tripping curve

NBT1-63

1,3,6,10,16,20,25,32,40,50,63

1,2

230/240

6kA

B,C,D

1,2

230/400,240/415

2,3,4

400/415

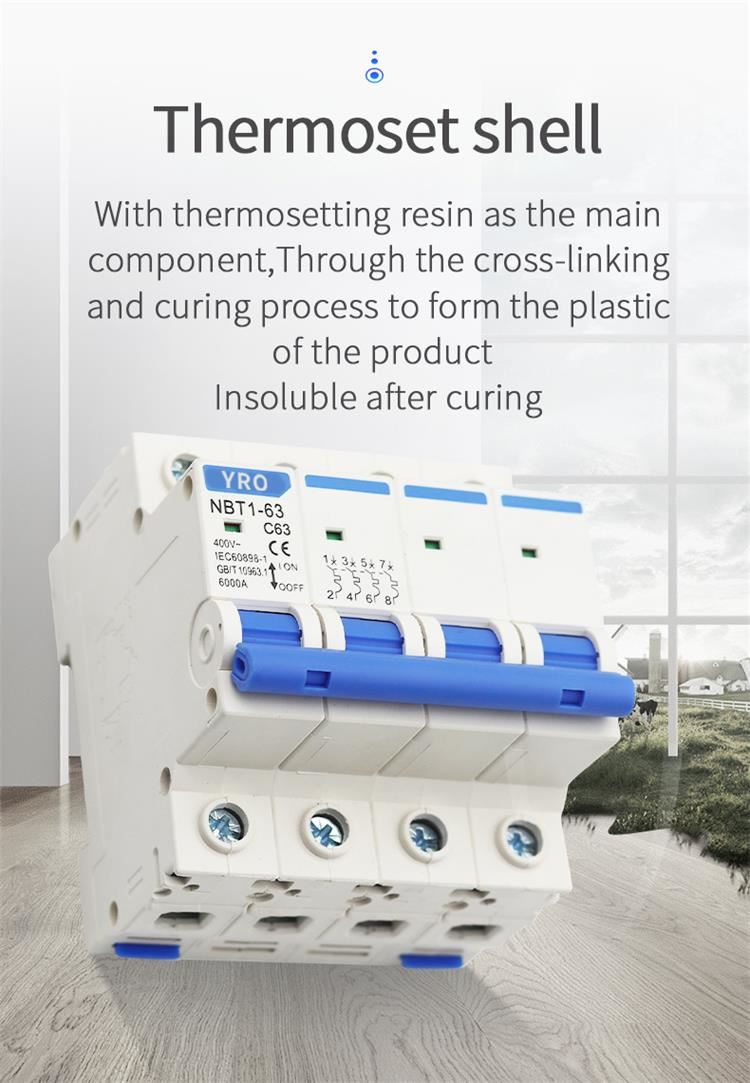

Product Features



1. Bistable mounting clasp, tool free installation.

2. The product assembly is compact and the wiring is more reliable.

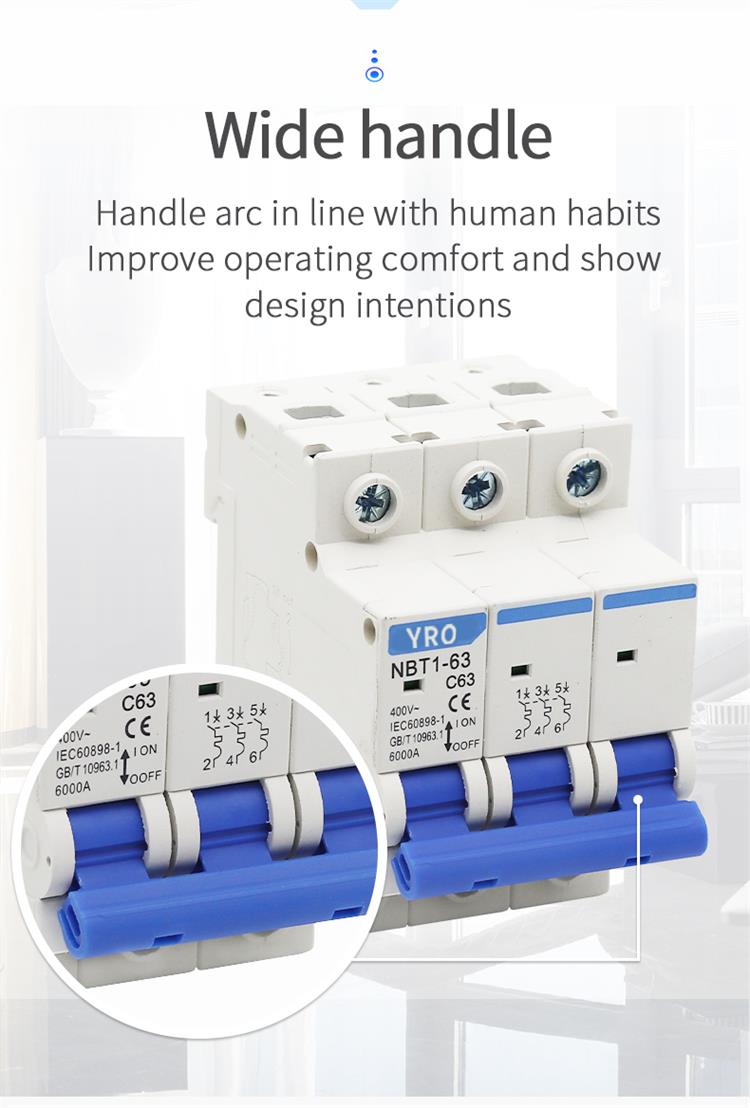

3. Anti skid design, increase the user’s handle.

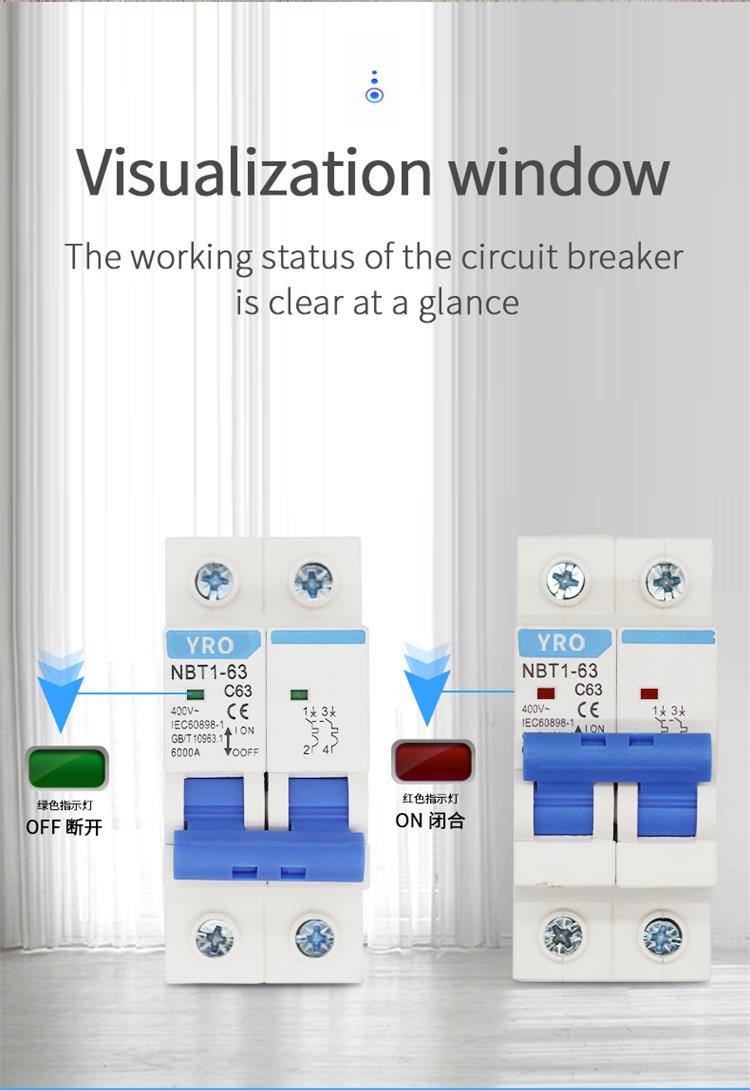

4. State indication window of circuit breaker.







Top 10 supplier in WENZHOU inventory.

12 Years Experience in this field.

2 years quality warranty for all products.

YRO has 1000 direct source suppliers.





The company has always adhered to independent innovation, researched and developed a series of intelligent electrical products with independent intellectual property rights, such as small intelligent circuit breaker and intelligent reclosing circuit breaker, which have reached the international advanced level, providing basic support for the application of electrical products in the Internet of things.





FAQ



Q1: How do I know if my fuse box is grounded?

A1: The simple way to find out is to use a volt meter and put the red lead in the hot side of the outlet or touch it to the black wire. The other lead touch it to the metal box. If you get a reading of around 110 to 120 volts it’s grounded.



Q2: Can a breaker box explode?

A2: If the circuit breaker won’t reset, and trips instantly, then you probably have a short in the circuit. This is a more complicated and serious reason for a breaker tripping because it can result in an excessive electric current that can potentially cause circuit damage, overheating, fire or even explosion.



Q3: What happens when you put a 20 amp receptacle on a 15 amp circuit?

A3: If your question is “can I connect a receptacle rated for 20 amps to a circuit designed for 15 amps?”, the answer is yes, because the receptacle can handle more current than the circuit is rated for. If you exceed 15 amps, the breaker will blow, and protect the receptacle.



Q4: What is the largest size copper wire allowed on a 15 amp breaker?

A4: In a way, it all starts with the size of the wire. 14-gauge wire is the smallest allowed for the permanent wiring of a circuit. It is rated as able to carry up to 15 amps of current. 12-gauge wire is the next size larger and is allowed to carry up to 20 amps.



Q5: How far can you run a 20 amp circuit?

A5: The total circuit would be about 60 -70 feet in length. It would only be supplying about 5 outlets and one light. It would be a light load, running small things, no heaters or med/large equipment. #12 provides reasonable performance up to about 100′ with general loads like you describe.
