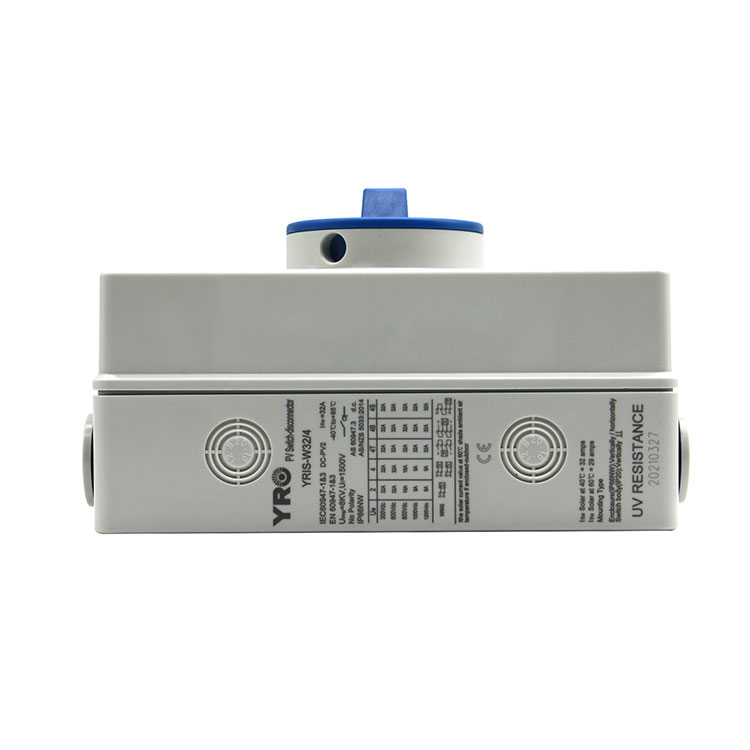

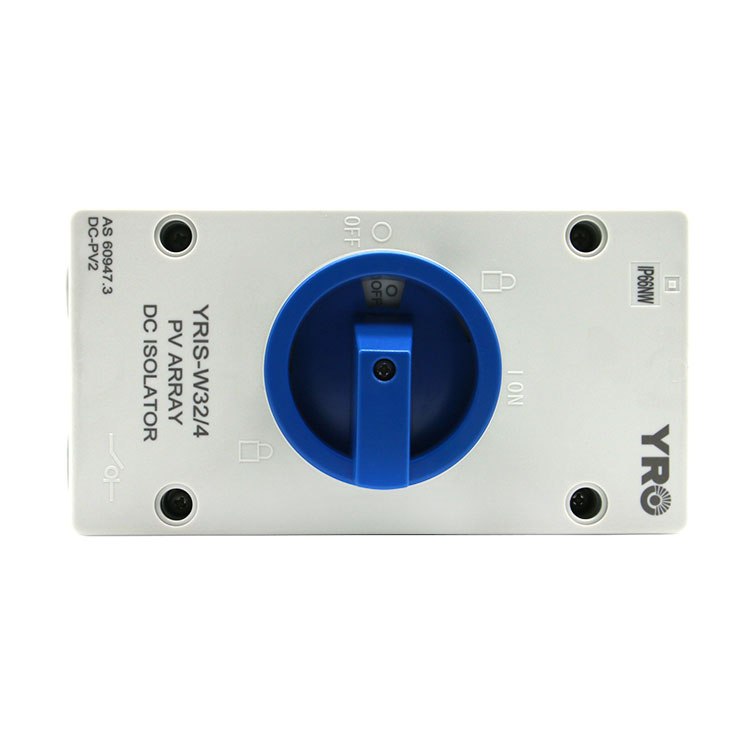

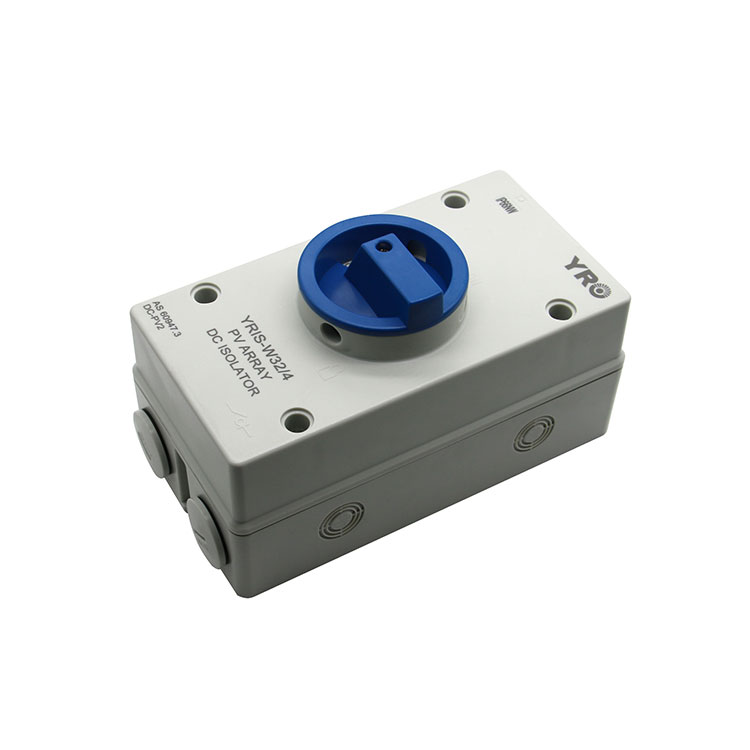

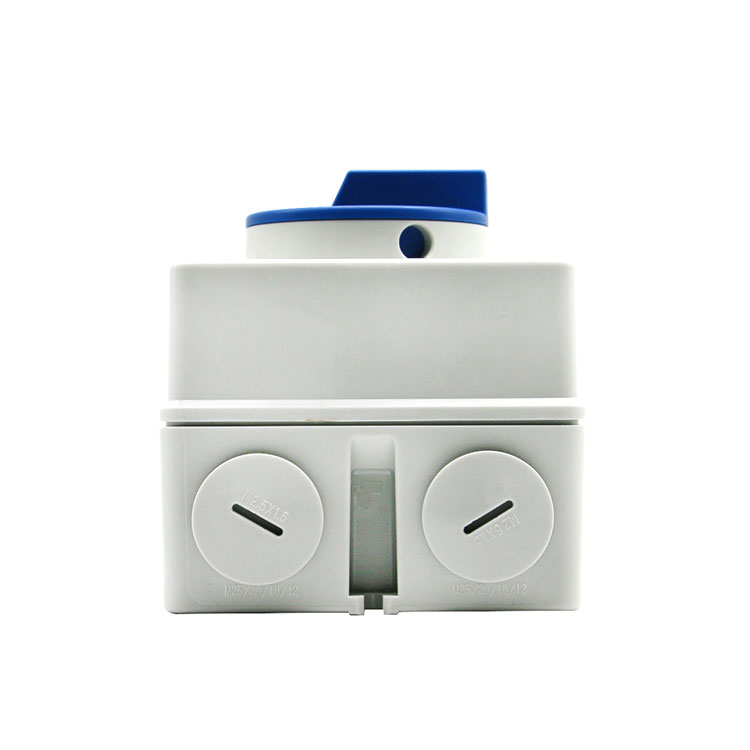

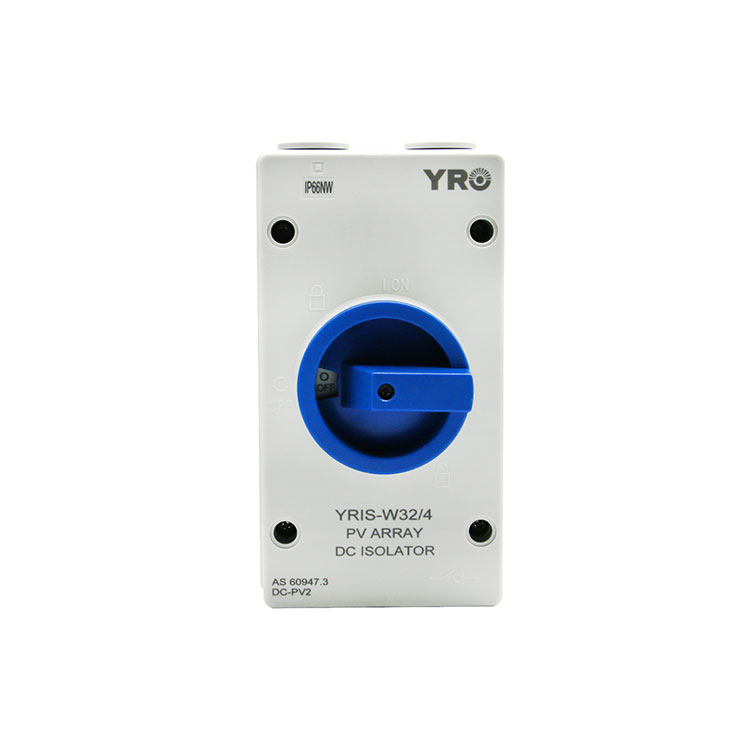

●DC Power Isolation Switch
●For photovoltaic system protection
●PC material V-0 flame retardant insulation
●Waterproof dustproof and impact resistant
●Cut off the voltage direct current to the solar panel.
|
Model |
YRIS-W32/4 |
|
Pole |
3P/4P |
|
Rated voltage |
1000VDC to 1200VDC |
|
Rated current |
10A/16A/20A/25A/32A |
|
Dimensions |
108X101X166mm |
|
Waterproof degree |
IP66 |
|
Breaking capacity |
1000/1700 |
|
Certificate |
CE/CB/TUV/IEC/SAA |
|
Standards |
IEC60947-3 |
|
Ambient temperature |
-25℃-- +85℃ |
|
Insulated voltage |
DC 1500V |
|
Connection type |
M20 M25 Solar connector |
|
Color |
Gray/Black; Gray/Red |
