●DC SPD Surge protective device
●Protect sensitive electronic equipment
●Short-current interription overload protection
●Provide common and different modes protection
●Against lightning surge voltages in solar system

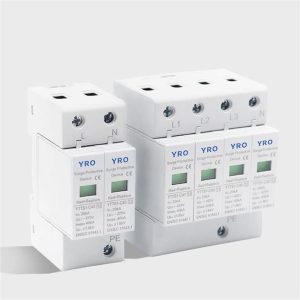

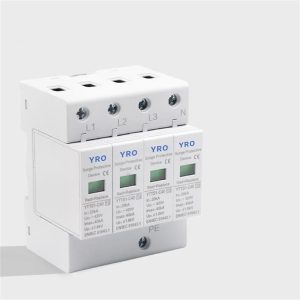

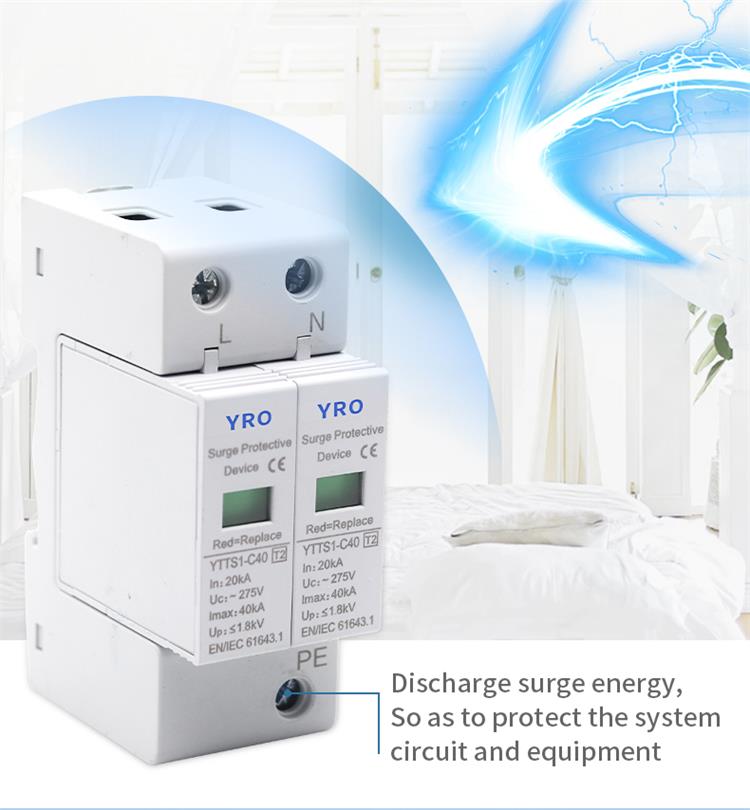

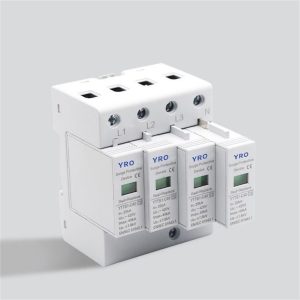

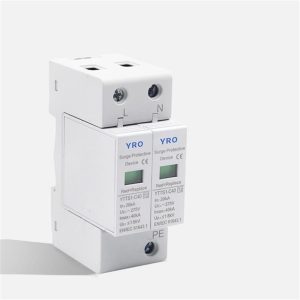

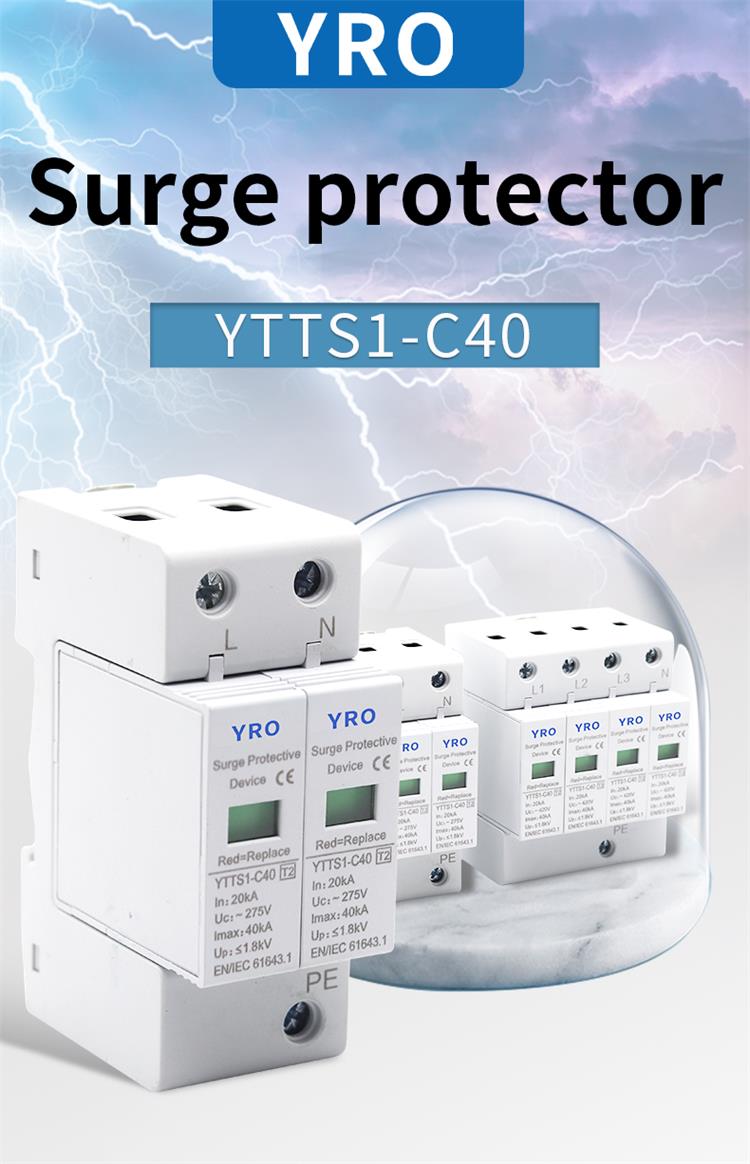

YTTS1-C40 series products are mainly used for class C protection of power distribution system, to protect electrical and electronic equipment from the impact of lightning electromagnetic pulse induced voltage, operation transient and resonance (< 100 μ s) overvoltage. They are widely used in power supply protection of communication equipment, electrical equipment, electrical equipment, security monitoring, traffic, industrial control, aviation and other fields. This series of products have the characteristics of fast response time, low residual pressure, timely tripping, etc., and the flame retardant level reaches V-0 level, which can prevent fire to the greatest extent and play a role in safety protection.
|

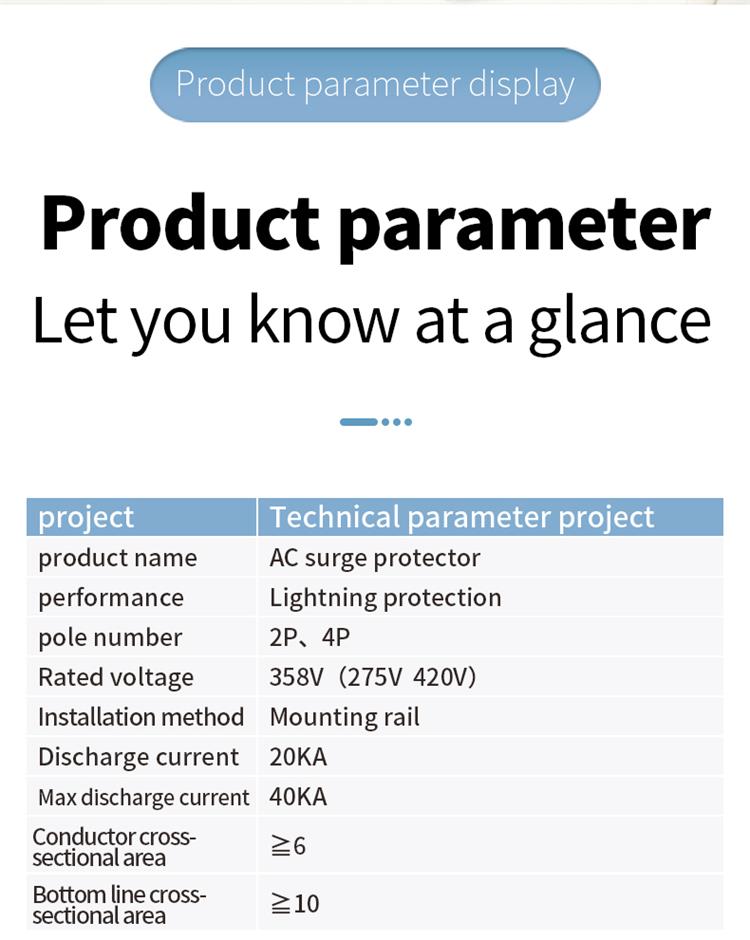

Rated Voltage(max. continous voltage) |
Uc |
275V~ |
|
Nominal discharge current(8/20μs) |
In |
20kA |
|
Max. discharge current(10/350μs) |
Imax |
40kA |
|
voltage protection level |
Up |
≤1.8kV |
|
Response time |
tA |
≤25ns(L-N) |
|
Max.Back up fuse |
|
125AgL/gG |
|
Operating Temperature range |
Tu |
-40~80℃ |
|
Cross-sectional area |
|
1.5mm²~25mm² solid/35mm²flexible |
|
Mounting on |
|
35 DIN rail |
|
Enclosure material |
|
Purple module & light gray,UL94-V0 |
|

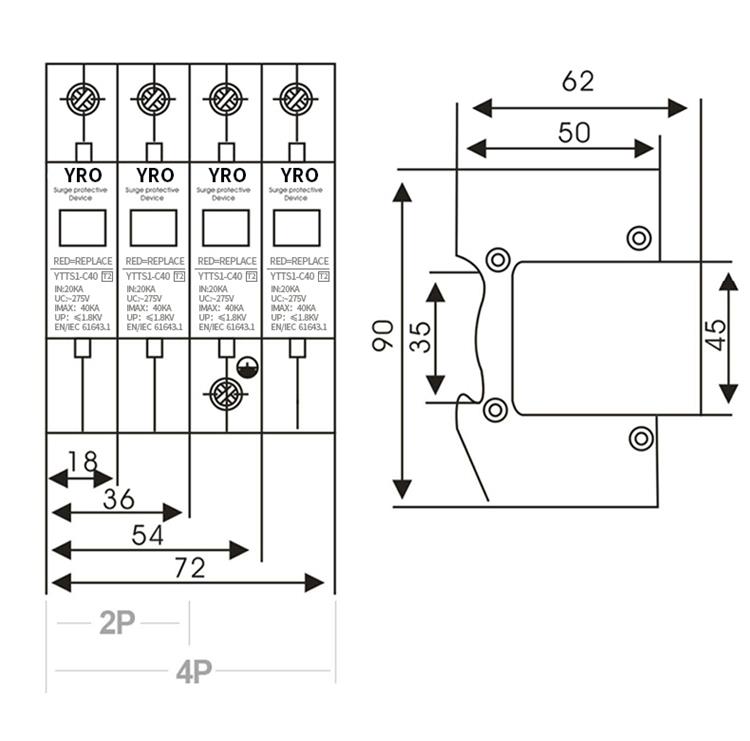

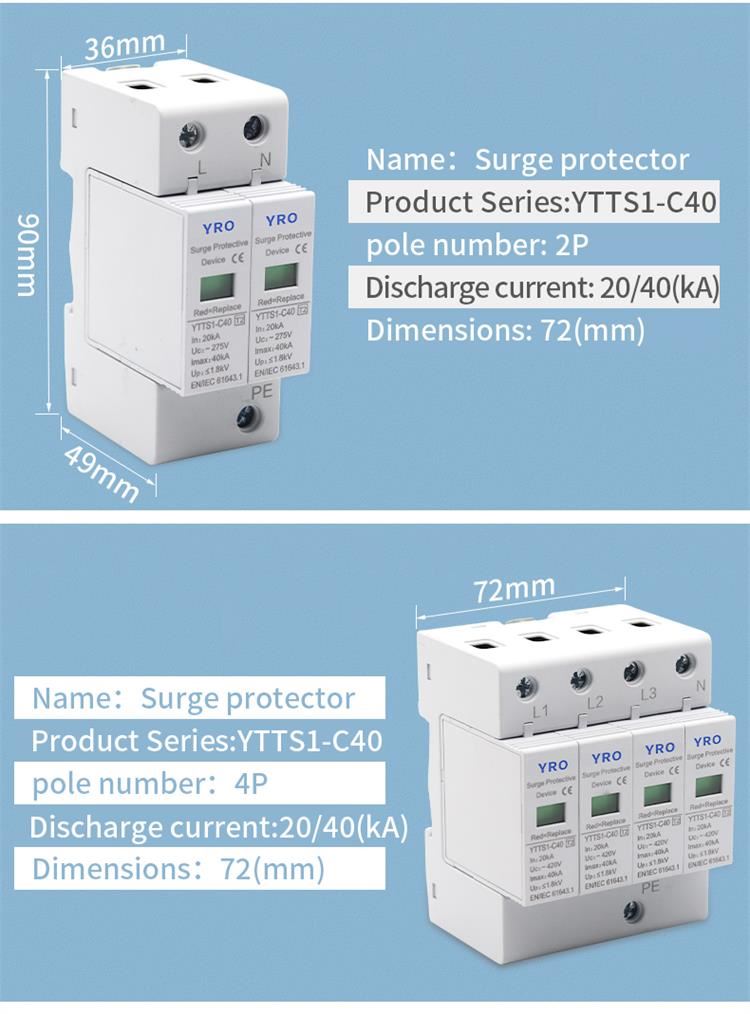

Dimension |
|
4mods |
|
Type of remote signaling capacity |
|
Switching contact |
|
Switching Capacity |
|
AC:250V/0.5A; DC:250V/0.1A; 125V/0.2A; 75V/0.5A |
|
Cross sectional area for temote signaling contact |
|
Max.1.5mm² solid/flexible |
|
Test standards |
|
GB 18802.1; IEC 61643-1 |
1. The color of the visual window indicates the working state of the protection, green (normal) and red (fault)
2. High quality lightning protection components are selected and have passed CQC certification;

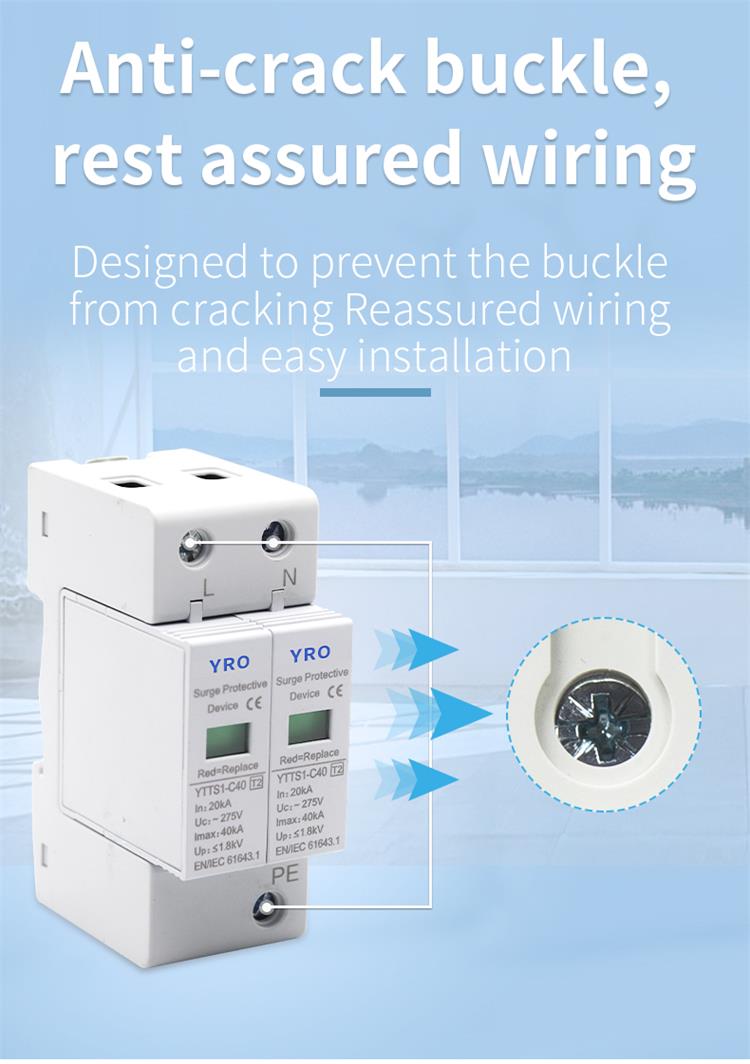

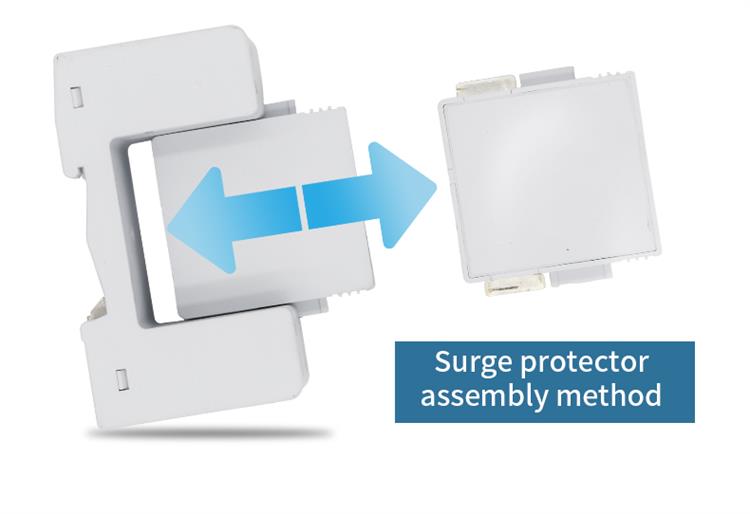

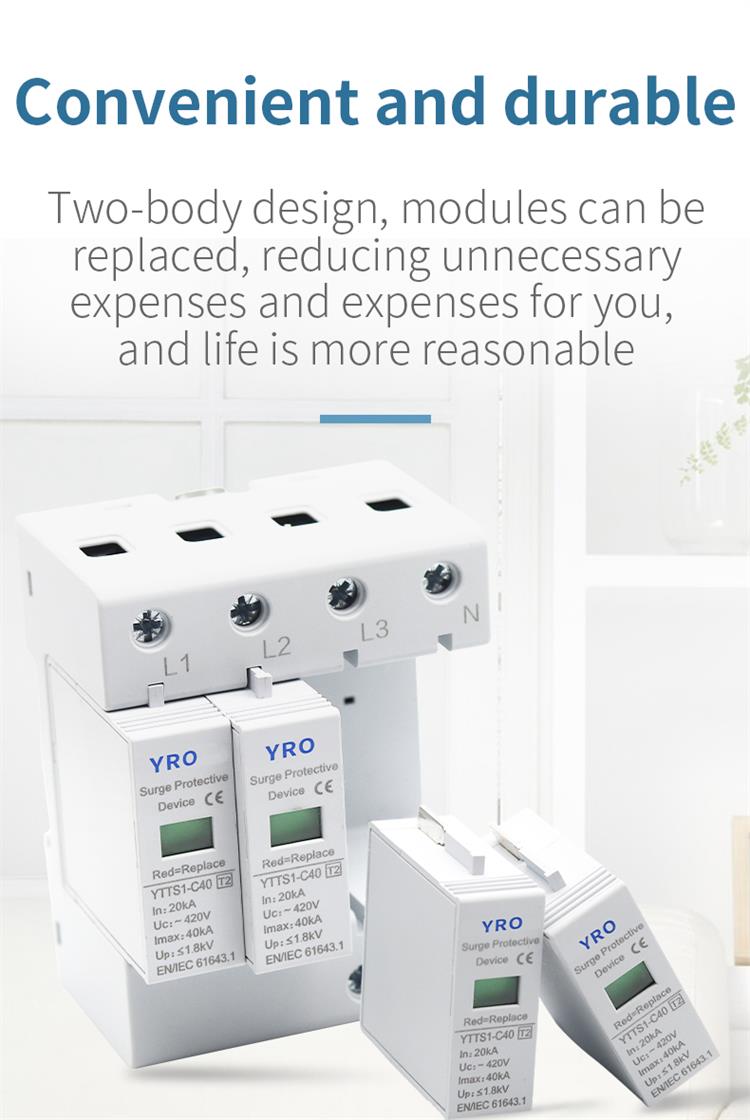

3. Pluggable modular structure design, beautiful appearance;
4. Temperature control release device, long service life, failure indication;
