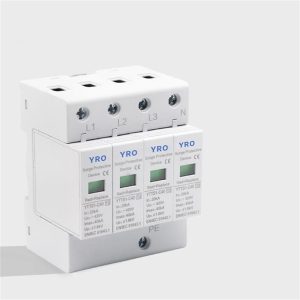

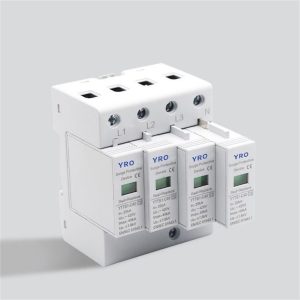

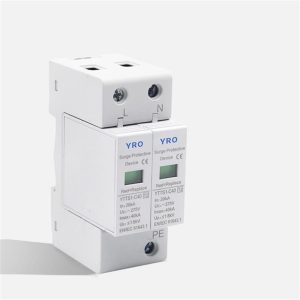

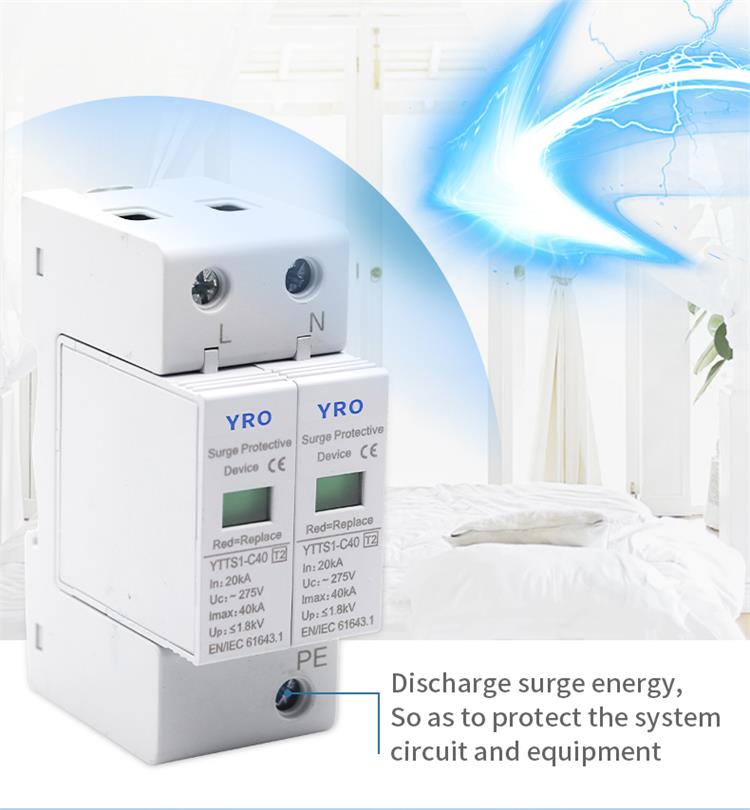

YTTS1-C40 series products are mainly used for class C protection of power distribution system, to protect electrical and electronic equipment from the impact of lightning electromagnetic pulse induced voltage, operation transient and resonance (< 100 μ s) overvoltage. They are widely used in power supply protection of communication equipment, electrical equipment, electrical equipment, security monitoring, traffic, industrial control, aviation and other fields. This series of products have the characteristics of fast response time, low residual pressure, timely tripping, etc., and the flame retardant level reaches V-0 level, which can prevent fire to the greatest extent and play a role in safety protection.

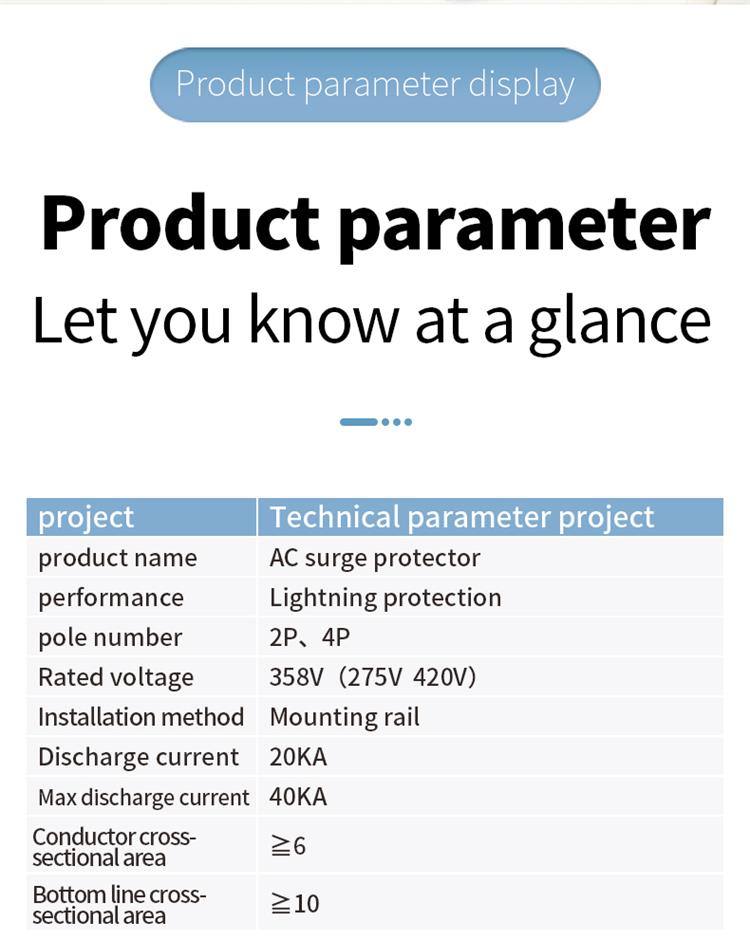

Product Specification
|
Rated Voltage(max. continous voltage) |
Uc |
275V~ |
|
Nominal discharge current(8/20μs) |
In |
20kA |
|
Max. discharge current(10/350μs) |
Imax |
40kA |
|
voltage protection level |
Up |
≤1.8kV |
|
Response time |
tA |
≤25ns(L-N) |
|
Max.Back up fuse |
|
125AgL/gG |
|
Operating Temperature range |
Tu |
-40~80℃ |
|
Cross-sectional area |
|
1.5mm²~25mm² solid/35mm²flexible |
|
Mounting on |
|
35 DIN rail |
|
Enclosure material |
|
Purple module & light gray,UL94-V0 |
|

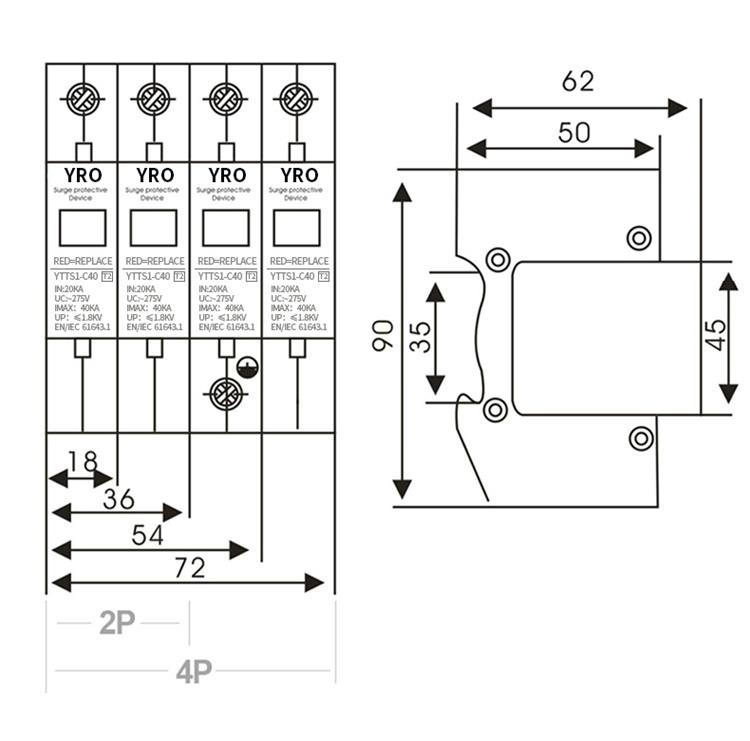

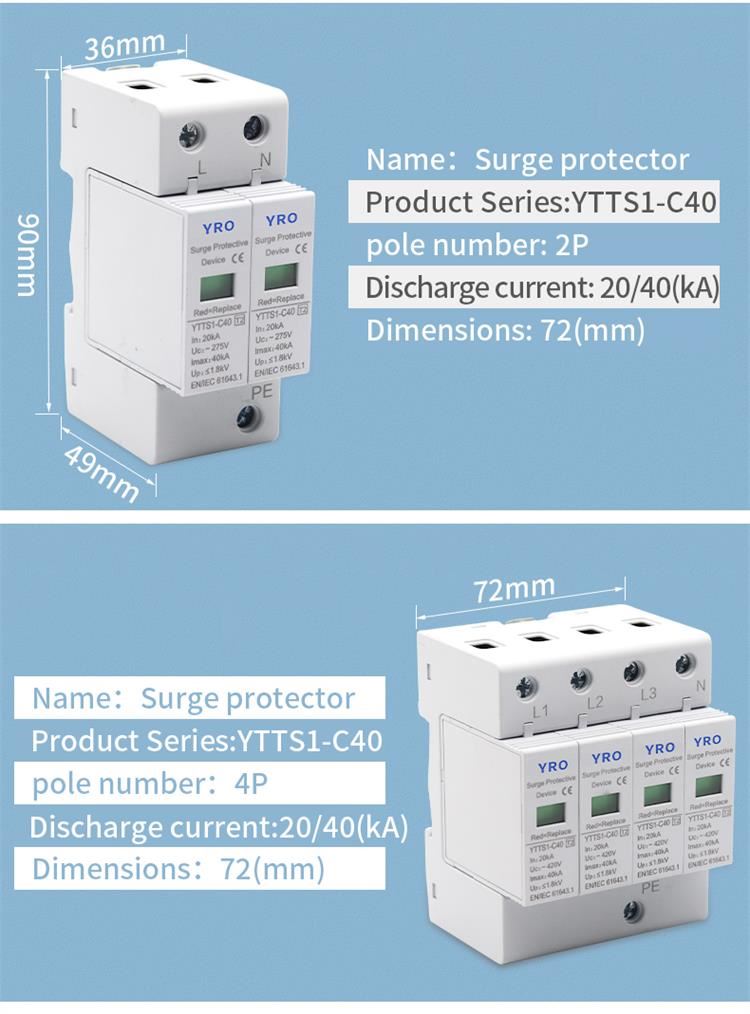

Dimension |
|
4mods |
|
Type of remote signaling capacity |
|
Switching contact |
|
Switching Capacity |
|
AC:250V/0.5A; DC:250V/0.1A; 125V/0.2A; 75V/0.5A |
|
Cross sectional area for temote signaling contact |
|
Max.1.5mm² solid/flexible |
|
Test standards |
|
GB 18802.1; IEC 61643-1 |
Product Features

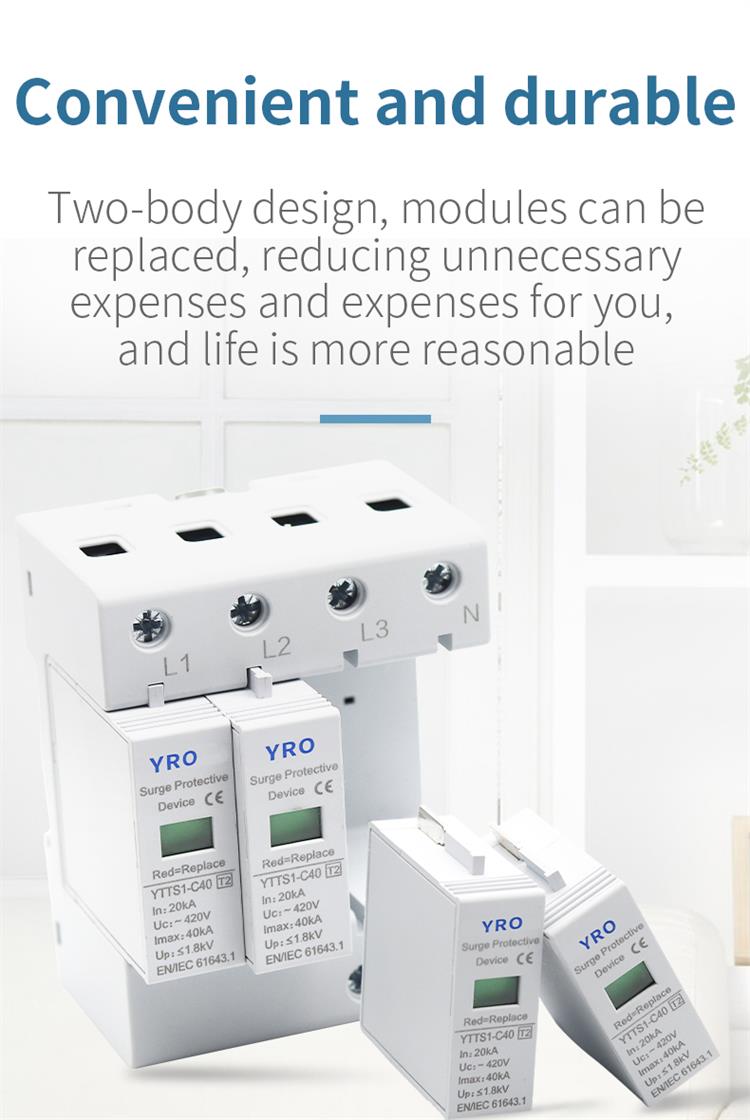

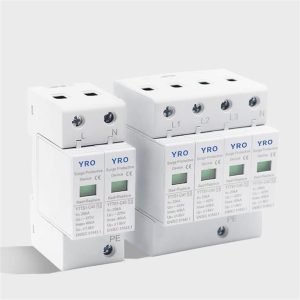

1. It can be combined to form 2p, 3P, 4P modes, suitable for various power grid systems

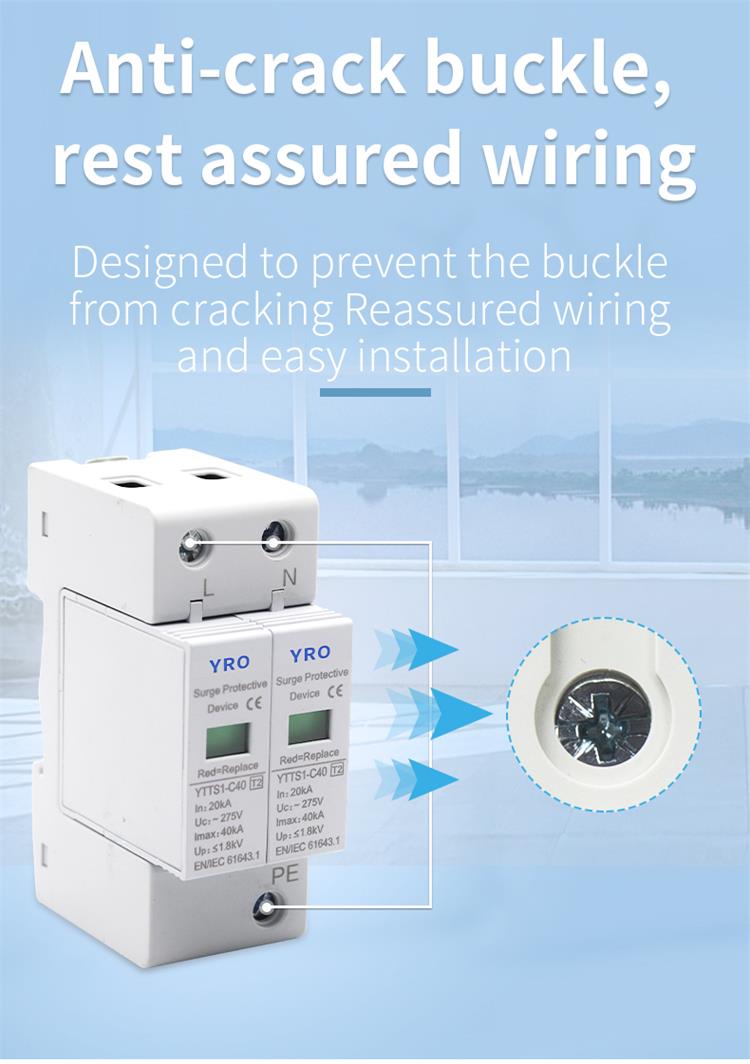

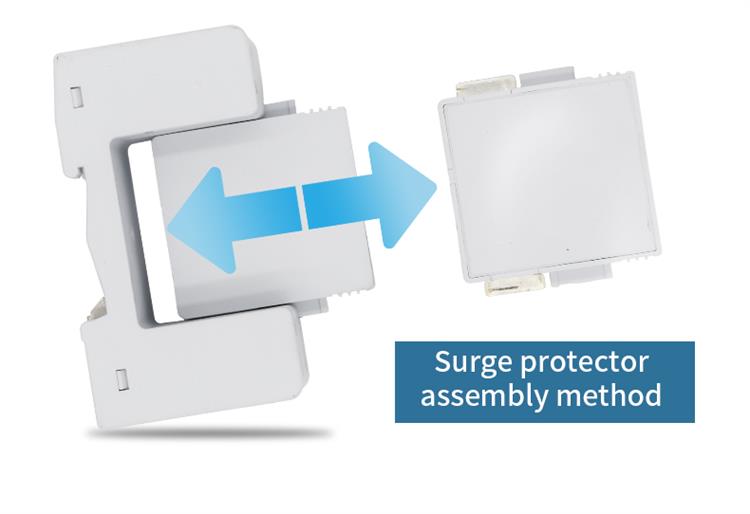

2. Standard modular design, simple installation and easy maintenance
3. Small leakage current and change rate, low residual voltage, large flow rate and fast response time
4. Temperature control protection circuit, built-in thermal protection, short circuit fault automatic release device
One of the largest circuit breaker manufacturer in China, a large market share, production of over 10,000 units per month.
Wide variety of products, totally 6 main series and over 200 models of mcb products.
Quality assurance: products are with IEC standard and GB standard, with CE certificate and could provide test reports and Certificate of origin.
Perfect pre-sale service and after-sale service, with 24 hours online trading manager service and promise 1 year free replacement and 5 years products warranty.
SPD supplier, lightning protection device supplier, surge protection device: high tech company specializing in the production of varistor and surge arrester. The company has varistor chip production and testing equipment, and can independently develop and develop varistor suitable for different occasions.
Only buy the right ones, not the expensive ones. YRO is your wise choice.
FAQ
Q1: Do I need surge protector for TV?
A1: Desktop computers, laptops, televisions, gaming systems, and charging phones should all be plugged into a surge protector. Although items like coffee pots or alarm clocks can feel like the most important items to protect in your home, they do not need surge protectors.
Q2: How do I choose a surge protective device?
A2: Here are some rules of thumb for installing a surge protection device (SPD): Familiarise yourself with types, or category, of SPDs. Assess the risk of lightning strikes and discharge capacities. Use devices to protect the surge arrester itself.
Q3: Do I have to fit surge protection?
A3: When should surge protection be fitted? … Electrical installations in single dwelling units are not required to have SPDs installed, but their use is not precluded and it may be that in discussion with a client such devices are installed, reducing significantly risks associated with transient over-voltages.
Q4: Are whole house surge protectors worth it?
A4: Do Whole House Surge Protectors Really Work? Yes! A whole-house suppressor instantly blocks the surge from entering home circuits to provide comprehensive lightning protection. Individual plug-in suppressors can’t protect electronics that aren’t plugged in, but are hard-wired instead.
Q5: Can I install a whole house surge protector myself?
A5: While you can easily plug a simple surge protector into any outlet yourself, a whole house surge protector involves (carefully) accessing the main power panel box or hiring an electrician.
