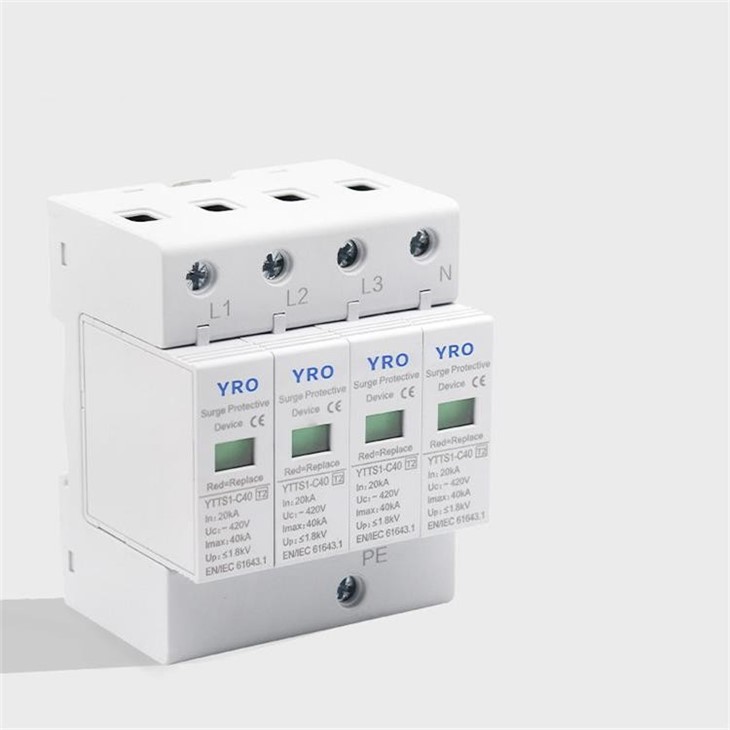

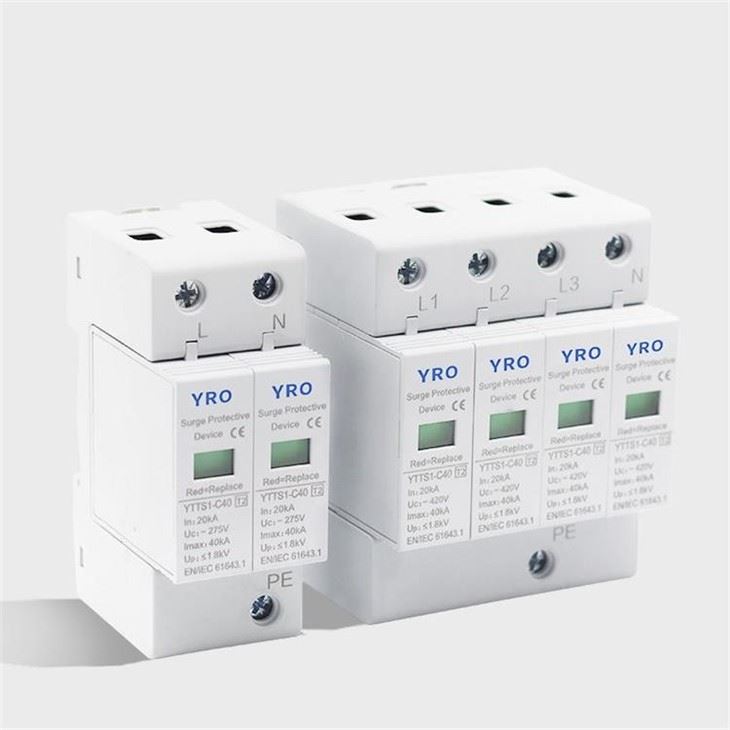

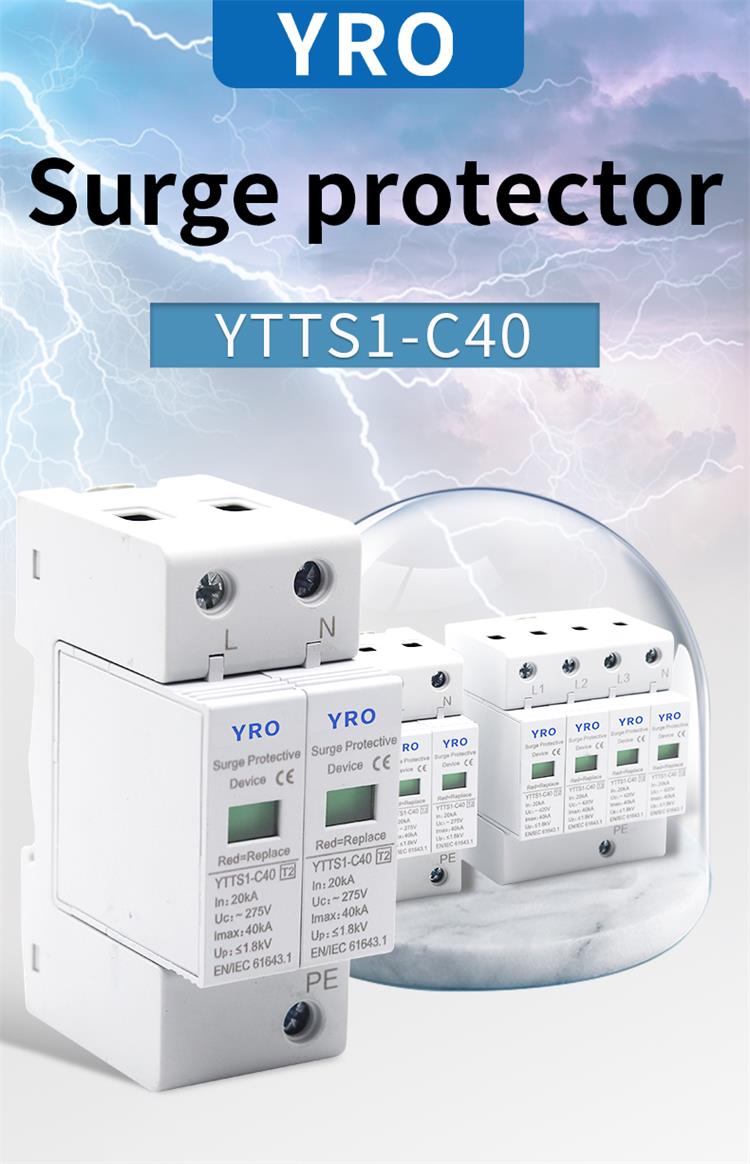

Waterproof 220 Volt Surge Protector

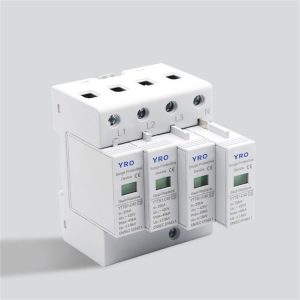

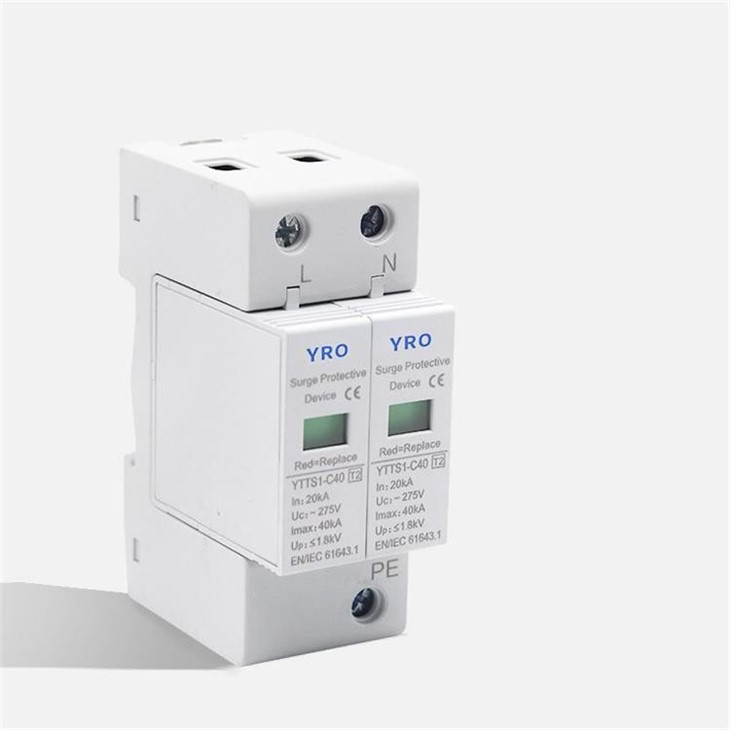

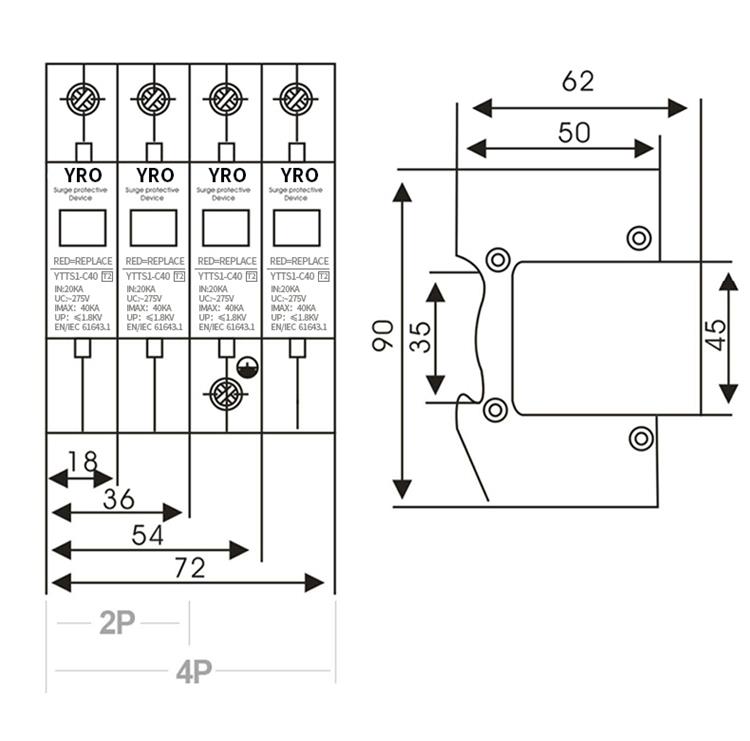

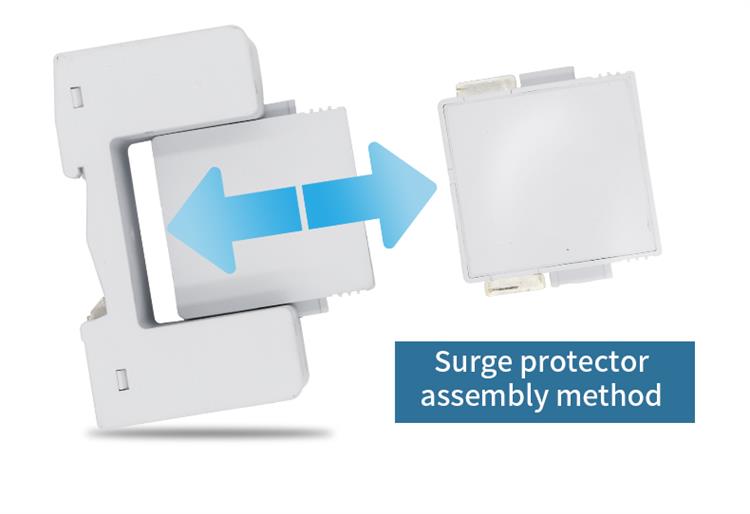

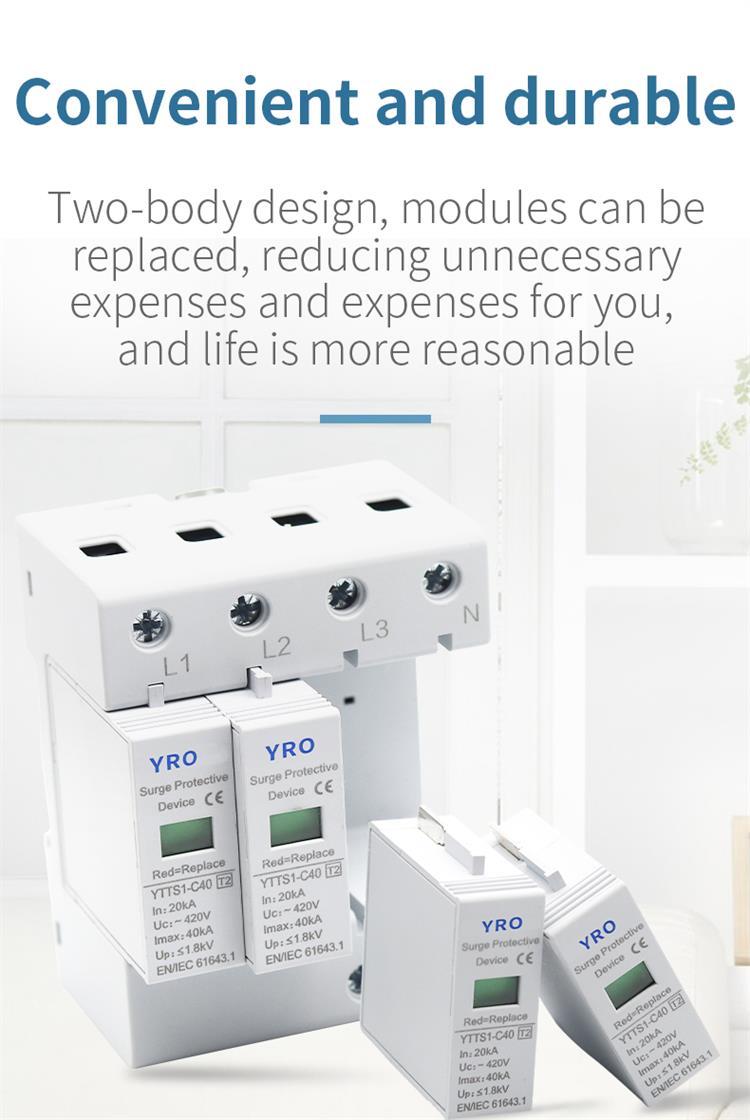

YTTS1-C40 series surge protection device is suitable for TT, it, TN-C-S power supply systems with AC frequency of 50 Hz / 60 Hz, 380 V and below. It can be used as equipotential connection during lightning stroke. Its design conforms to the technical standards of GB 18802.1-2002 and iec61643-1:1998. The shell is designed to be installed on 35mm electrical guide rail. The product has built-in failure separation device. When the power supply protection fails due to over-current, overheating and breakdown, the failure separation device will occur At the same time, the visual alarm indication module can be replaced under the condition of working voltage.

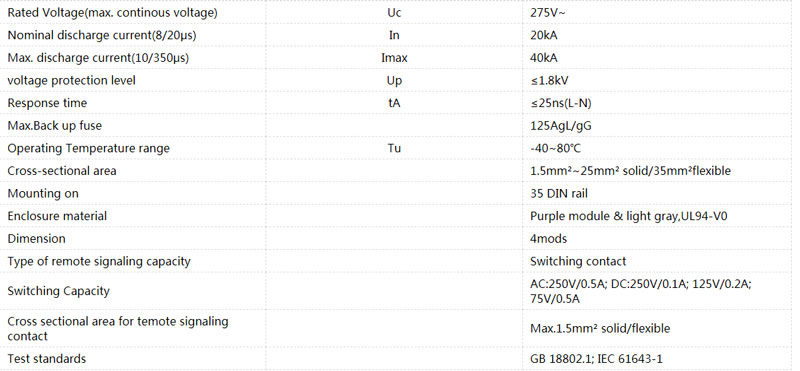

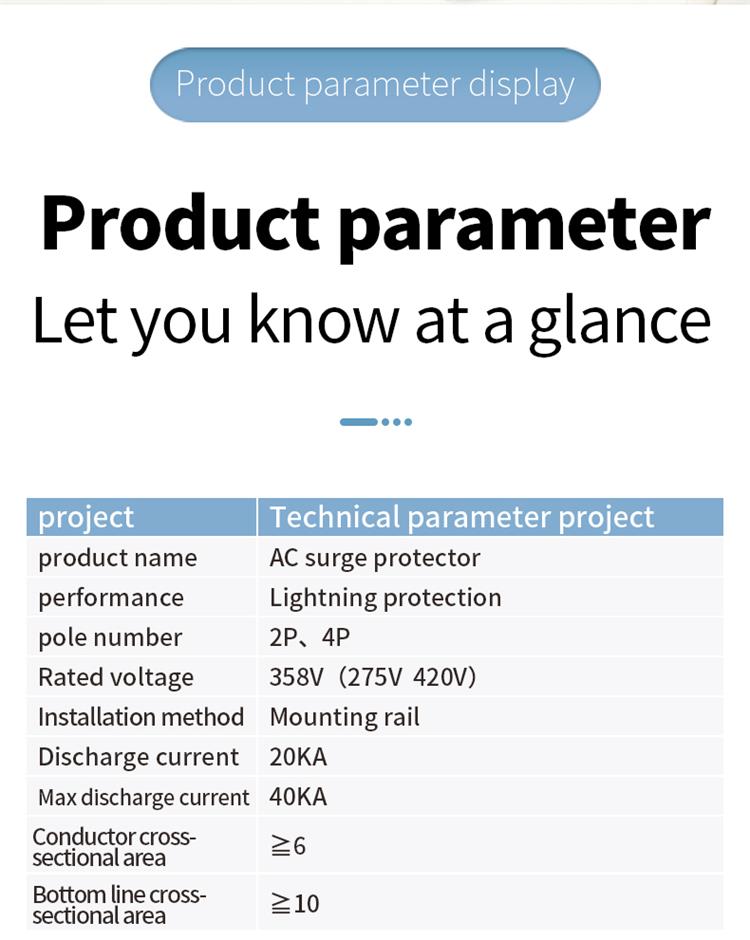

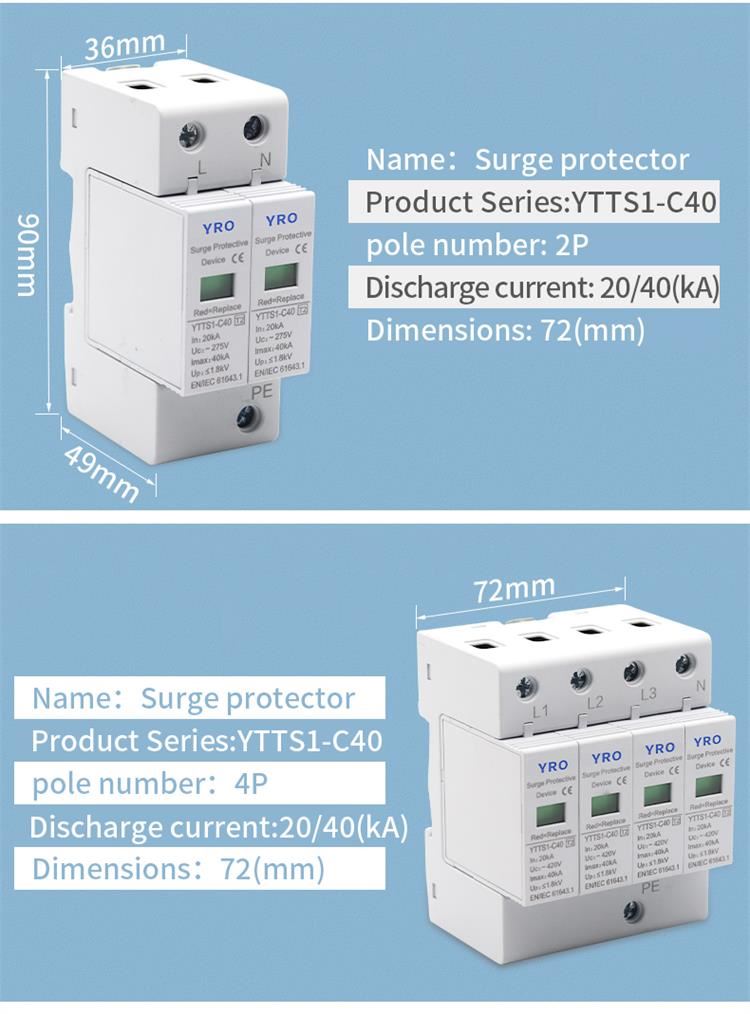

Product Specification

Product Features

1.Temperature control protection circuit, built-in protection, stable and reliable work.

2.Built in overheat, instantaneous over-current automatic circuit breaker.

3.Failure automatic monitoring indication, standard module installation.

4.5-year quality assurance, lifetime free technical support.

Minimum order quantity starts from 1pcs.

Lead time of most parts is less than 3 days.

You’ll get price in 4 hours after your inquiry.

Top 10 supplier in WENZHOU inventory.

By Express: such as DHL, UPS, TNT, FedEx etc. The dispatch time is about 3-7 days

Air Freight: when your order more than 100kgs which will be more economical than express

Sea Freight: We will updated sea freight once we know your sea port where goods will be delivered.

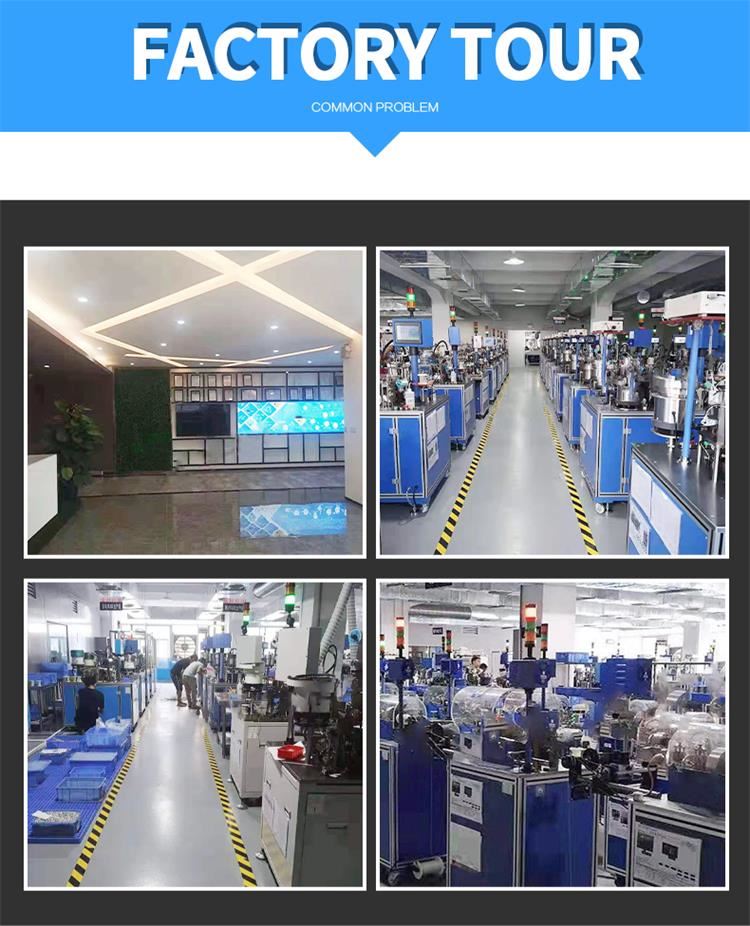

We provide "five-year warranty" and fast and high-quality service all over the world. The company implements 6S management and ISO9001 quality management system, and has a comprehensive testing equipment and means. YRO attaches great importance to the construction of intellectual property rights, takes the road of independent research and development, and has a number of patents. In the process of R & D and production, we should attach importance to environmental protection and strive for harmonious coexistence with the earth's environment.

FAQ

Q1: Is overload protection the same as surge protection?

A1: A circuit breaker is designed to cut power to the board to prevent damage and possibly even a fire. Whether surge protected or not, most power boards will have a circuit breaker fuse or overload switch built in. It's important to note that an overload switch does NOT provide any form of surge protection.

Q2: Do I need surge protector for ps4?

A2: Your electronics can be damaged by power surges and surge protector help mitigate the possibility. They are usually rated by how much surge they can handle. These protect and should be used on any electronics you don't want to lose in the case of a volt spike that they can't handle, which can happen to anyone.

Q3: Where should surge protection be installed?

A3: Surge protection (type 1 or type 2) should be fitted at the origin of the supply to the property. This can be installed inside the existing consumer unit, fed from the consumer unit and fitted in its own enclosure, or fed from the supply tails and fitted in its own enclosure.

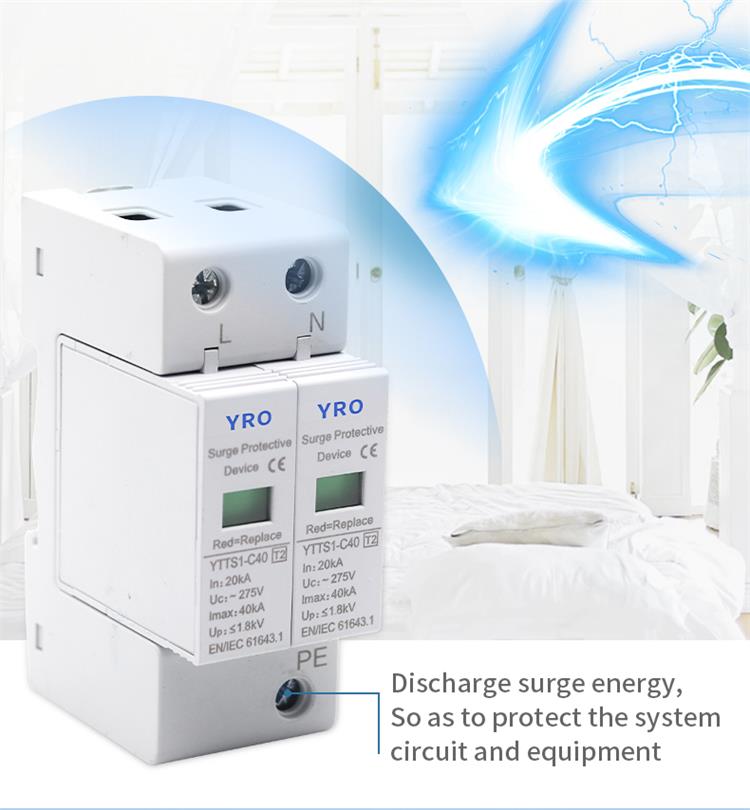

Q4: What does a surge protection device do?

A4: A surge protector or surge suppressor is an appliance or device designed to protect electrical devices from voltage spikes. A surge protector attempts to limit the voltage supplied to an electric device by either blocking or shorting to ground any unwanted voltages above a safe threshold.
