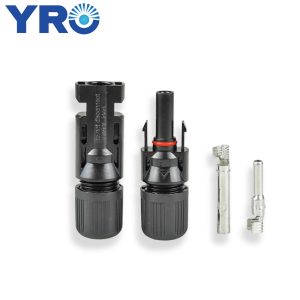

●Mutiple plugging and unplugging cycles
●Mating safety provided by keyed housings
●High Voltage and Current carrying capacity
●Housing made of PPO material, anti-UV IP67
●Accomodates deferent insulation diamaters PV cable
Simple on-site processing.
Accommodates PV cable with different insulation diameters.
Mating safety provided by keyed housings.
Multiple plugging and unplugging cycles.
High current carrying capacity.
|
OrderNO. |
P/N Part P/N |
Cable special |
||
|
Connector |
Terminal |
Conductor size(mm²) |
CableOD((j)Dmm) |
|
|
YSC-1 K-2.5 |
YSC-CMMM-H
|
YSC-CM-T14 |
AWG14(2.5 mm²) |
4)45-4)8.5
|
|
YSC-1 K-4 YSC-1 K-6 |
YSC-CM-T12 YSC-CM-T10 |
AWG12(4.0 mm²) AWG10(6.0 mm²) |
||
|
YSC-1 K-10 |
YSC-CM-T7 |
AWG7(10mm²) |
||
|
YSC-1.5K-2.5 |
YSC-CFPM-H
|
YSC-CM-T14 |
AWG14(2.5 mm²) |
4)4.5- 4)8.5
|
|
YSC-1.5K-4 |
YSC-CM-T12 |
AWG12(4.0 mm²) |
||
|
YSC-1.5K-6 |
YSC-CM-T10 |
AWG10(6.0 mm²) |
||
|
Rated Current |
30A(2.5-6mm²) 45A(4-6mm²) |
|
Rated Voltage |
1000V DC |1500V DC |
|
lest Voltage |
6000V(50Hz, 1min) |
|
Overvoltage type/Pollution Degree |
2 CAT III/2 |
|
Contact Resistance Of Plug Connector |
ImΩ |
|
Contact Material Copper, Tin-plated |
Copper, Tin-plated |
|
Insulation Material |
PPO/PC |
|
Degree Of Protection |
IP2X/IP67 |
|
Flame Class |
UL94-V0 |
|
Safety Class |
II |
|
Suitable Cable |
OD4.5-8.5(2.5-6.0mm²) |
|
Insertion Force/Withdrawal Force |
<50N/>50N |
|
Connecting System |
Crimp connection |
|
Temperature Range |
-40°C~+125C |
