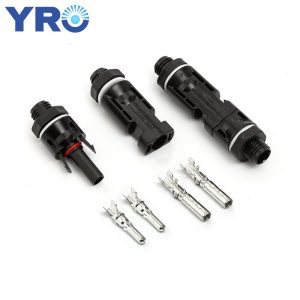

Solar Connector 1000V Panel Connector
Solar Connector 1000V Panel Connector

Solar Connector 1000V Panel Connector

●Mutiple plugging and unplugging cycles

●Mating safety provided by keyed housings

●High Voltage and Current carrying capacity

●Housing made of PPO material, anti-UV IP67

●Accomodates deferent insulation diamaters PV cable

Product Description

Introduce

Simple on-site processing.
Accommodates PV cable with different insulation diameters.
Mating safety provided by keyed housings.
Multiple plugging and unplugging cycles.
High current carrying capacity.

Technical Data

OrderNO.

P/N Part P/N

Cable special

Connector

Terminal

Conductor size(mm²)

CableOD((j)Dmm)

YSC-1 K-2.5



YSC-CMMM-H



YSC-CM-T14

AWG14(2.5 mm²)



4)45-4)8.5



YSC-1 K-4

YSC-1 K-6

YSC-CM-T12

YSC-CM-T10

AWG12(4.0 mm²)

AWG10(6.0 mm²)

YSC-1 K-10

YSC-CM-T7

AWG7(10mm²)

YSC-1.5K-2.5



YSC-CFPM-H



YSC-CM-T14

AWG14(2.5 mm²)



4)4.5- 4)8.5



YSC-1.5K-4

YSC-CM-T12

AWG12(4.0 mm²)

YSC-1.5K-6

YSC-CM-T10

AWG10(6.0 mm²)



Technical Data

Rated Current

30A(2.5-6mm²) 45A(4-6mm²)

Rated Voltage

1000V DC |1500V DC

lest Voltage

6000V(50Hz, 1min)

Overvoltage type/Pollution Degree

2 CAT III/2

Contact Resistance Of Plug Connector

ImΩ

Contact Material Copper, Tin-plated

Copper, Tin-plated

Insulation Material

PPO/PC

Degree Of Protection

IP2X/IP67

Flame Class

UL94-V0

Safety Class

II

Suitable Cable

OD4.5-8.5(2.5-6.0mm²)

Insertion Force/Withdrawal Force

<50N/>50N

Connecting System

Crimp connection

Temperature Range

-40°C~+125C
