●DC SPD Surge protective device

●Protect sensitive electronic equipment

●Short-current interription overload protection

●Provide common and different modes protection

●Against lightning surge voltages in solar system

Product Description

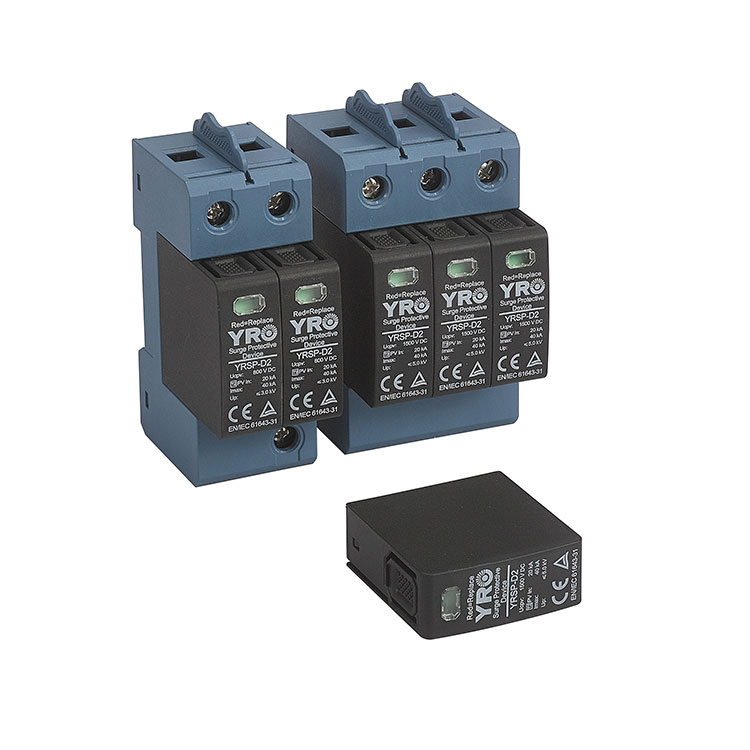

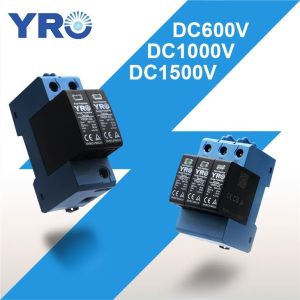

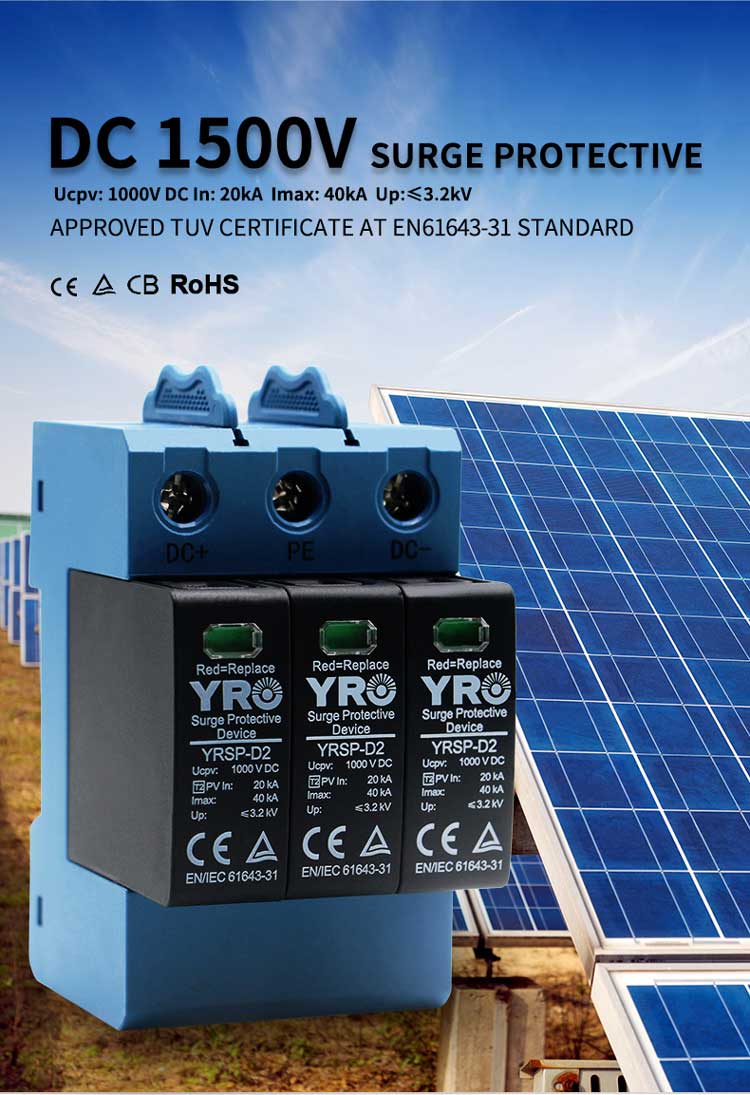

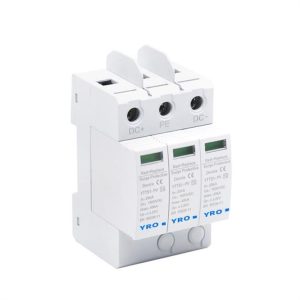

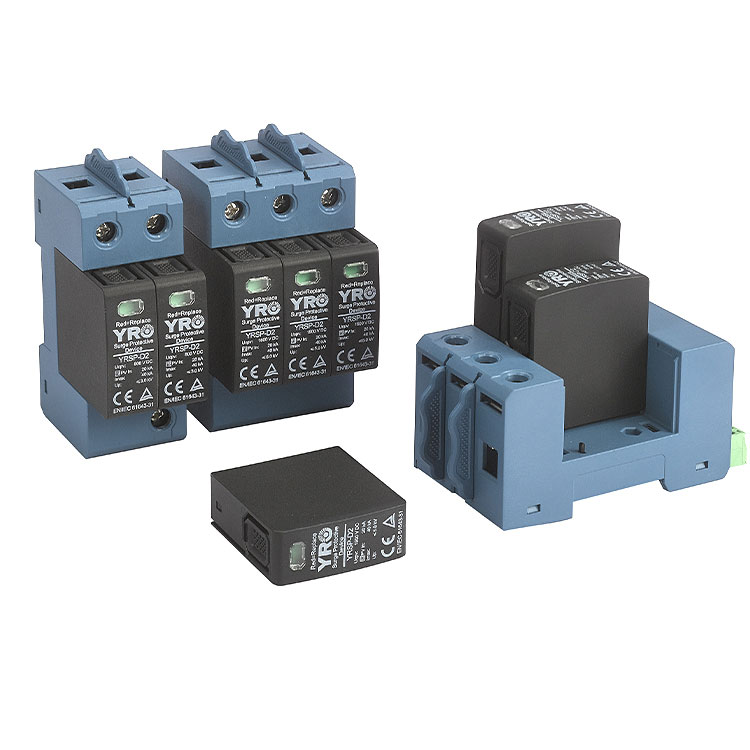

YRSP-D2 800VDC 1500VDC SPD DC Pv Surge Protective Device





YTTS1-PV Surge protective device, protect against lightning surge voltages in solar system (photovoltaic power supply system).
These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection. Its installed location are recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long.
High energy MOVs equipped with specific thermal disconnectors and related failure indicators.



Products features

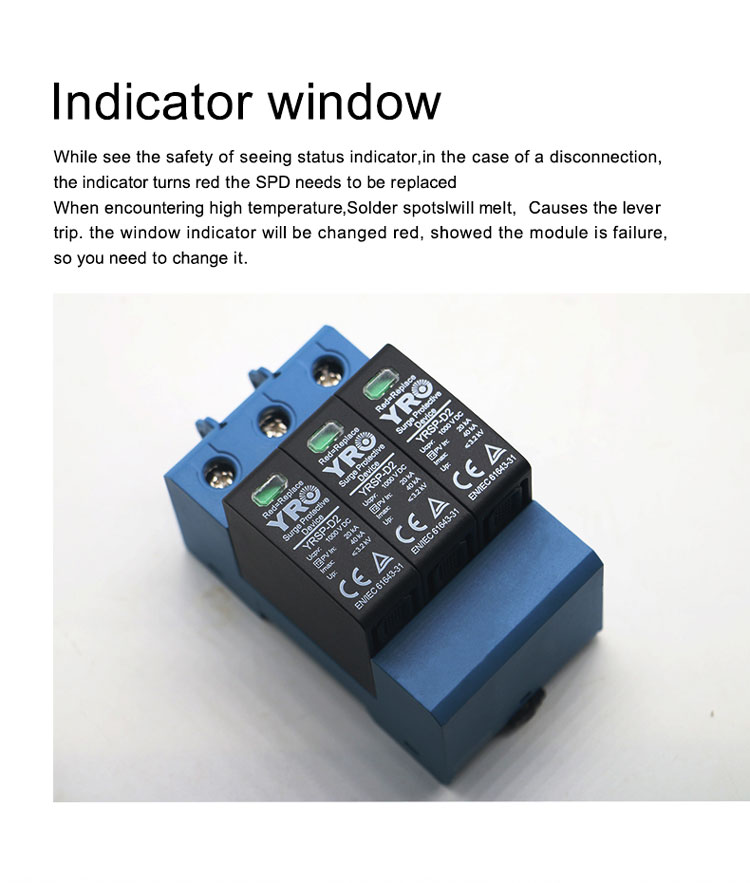

  1. Indicator window is obvious (green is OK, red indicates failure)
    2. Fully enclosed terminal

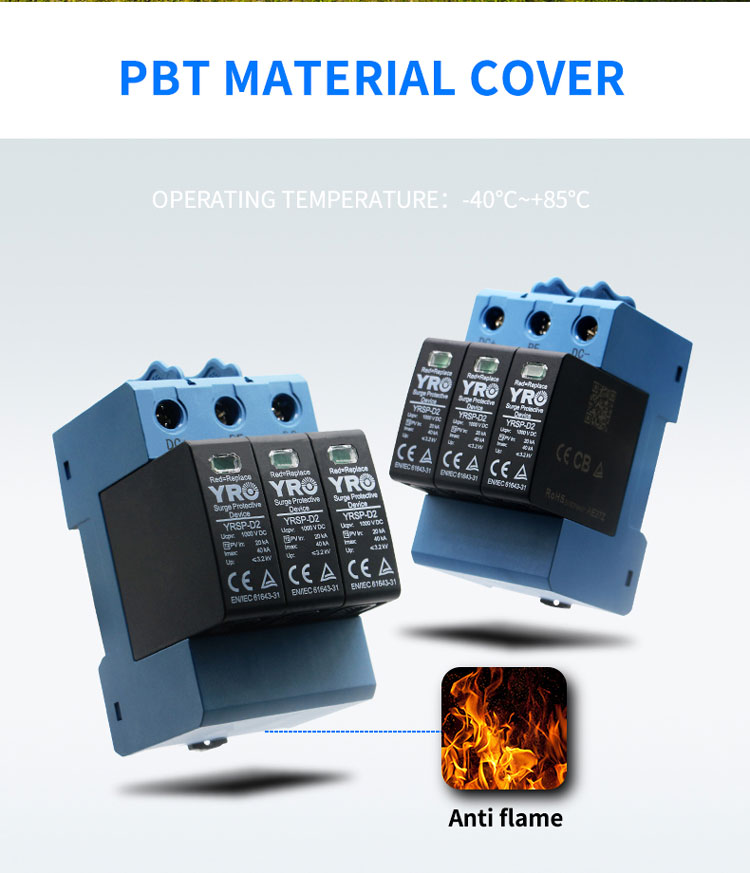

    3. The shell is made of PC flame retardant material, fire insulation

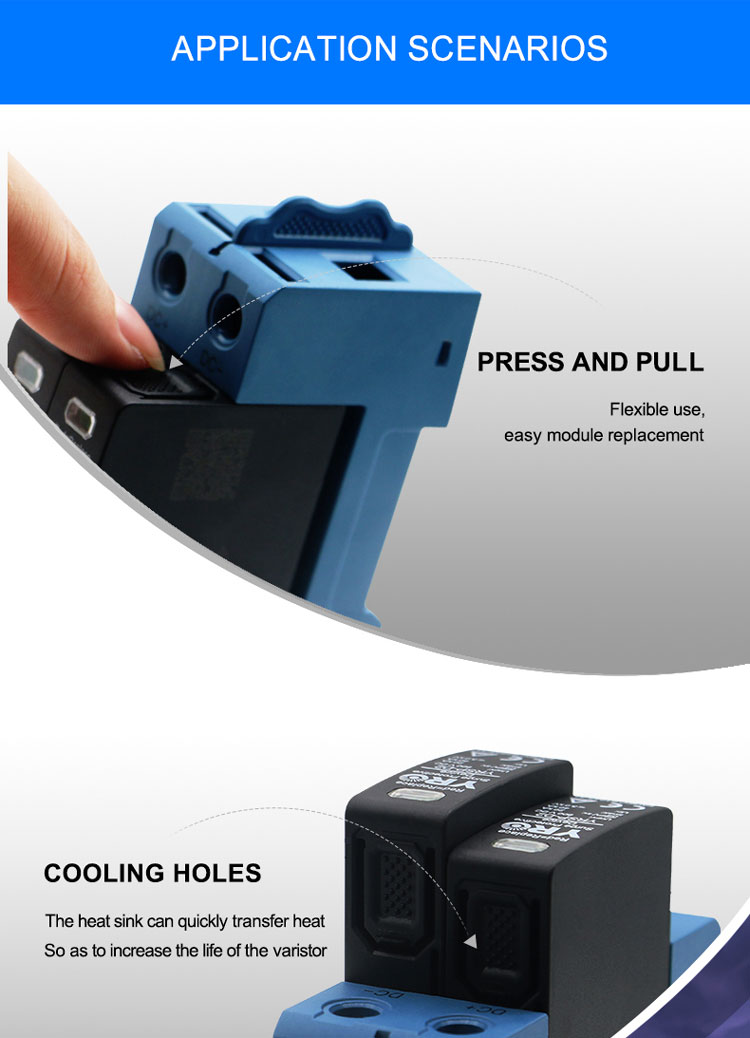

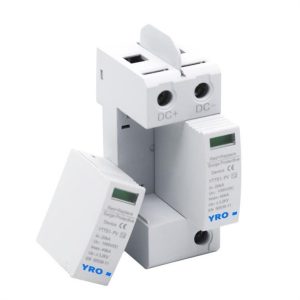

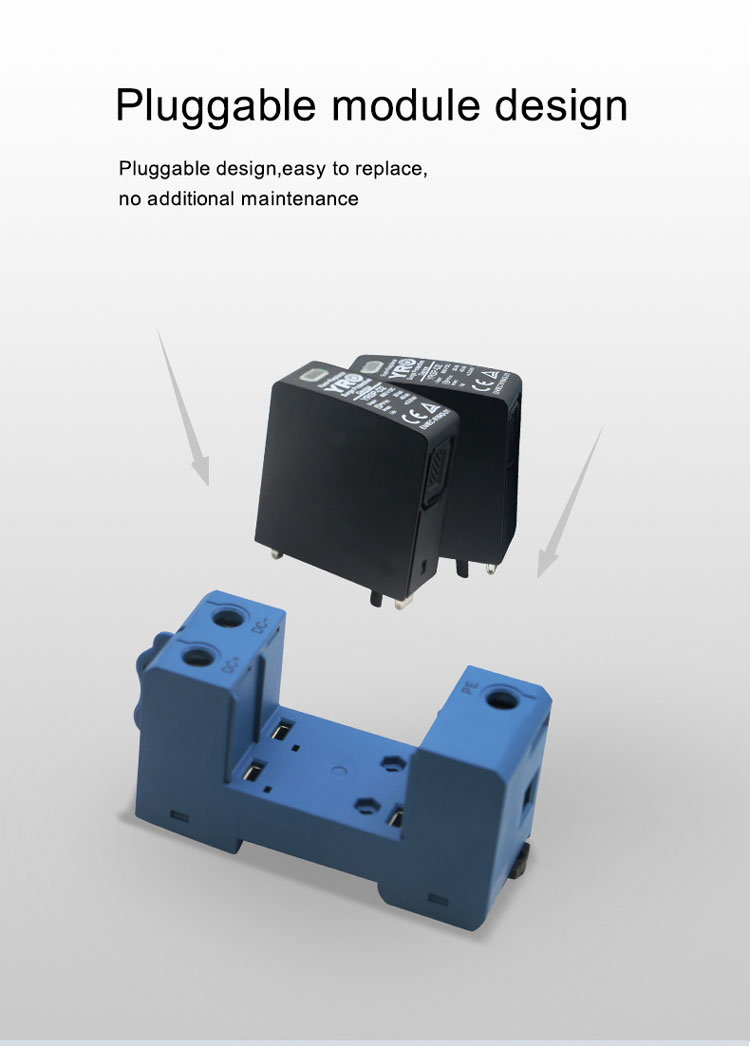

    4. Replaceable module





Technical data



Rated Voltage(max. continous voltage)

Uc

600-1500v

Nominal discharge current(8/20μs)

In

20kA

Max. discharge current(10/350μs)

Imax

40kA

voltage protection level

Up

≤3kV

Response time

tA

≤25ns(L-N)

Max.Back up fuse



125AgL/gG

Operating Temperature range

Tu

-40~80℃

Cross-sectional area



1.5mm²~25mm² solid/35mm²flexible

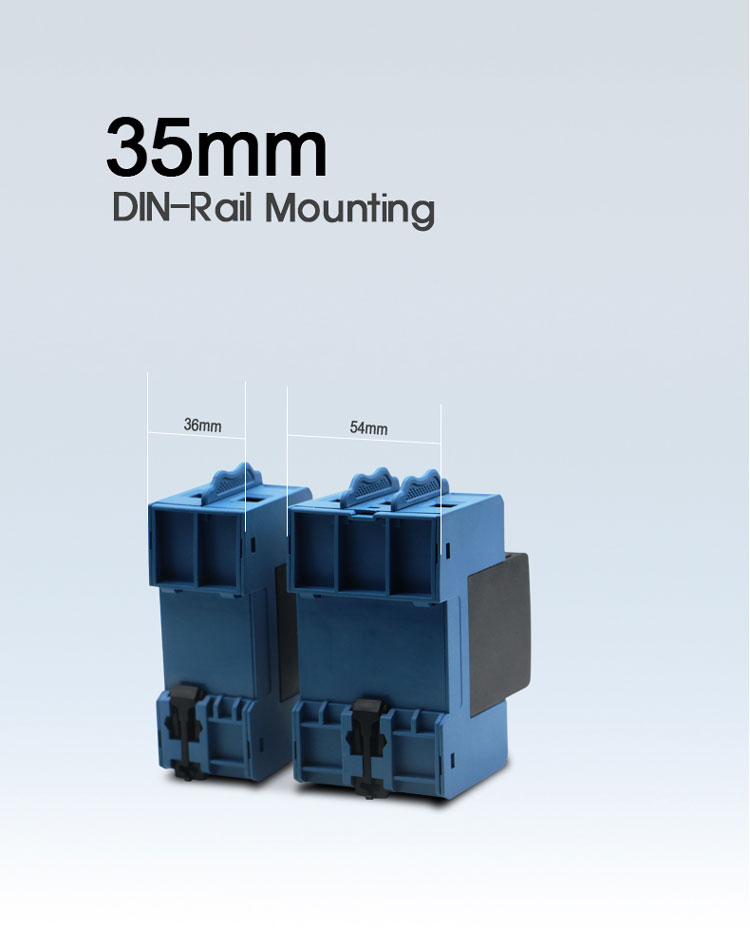

Mounting on



35 DIN rail

Enclosure material



Purple module & light gray,UL94-V0

Dimension



4mods

Type of remote signaling capacity



Switching contact

Switching Capacity



AC:250V/0.5A; DC:250V/0.1A; 125V/0.2A; 75V/0.5A

Cross sectional area for temote signaling contact



Max.1.5mm² solid/flexible

Test standards



GB 18802.1; IEC 61643-1



Message

Related products

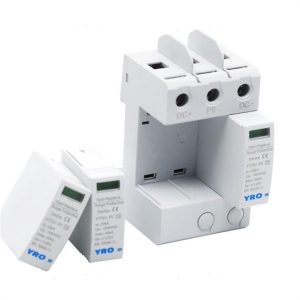

Dc Lightning Surge Protection Device

Dc Lightning Surge Protection Device

Click to Learn More

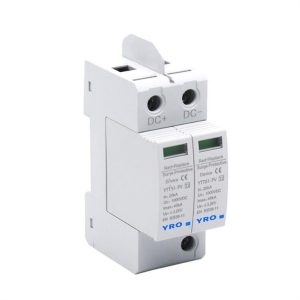

Lightning Surge Protection Devices
