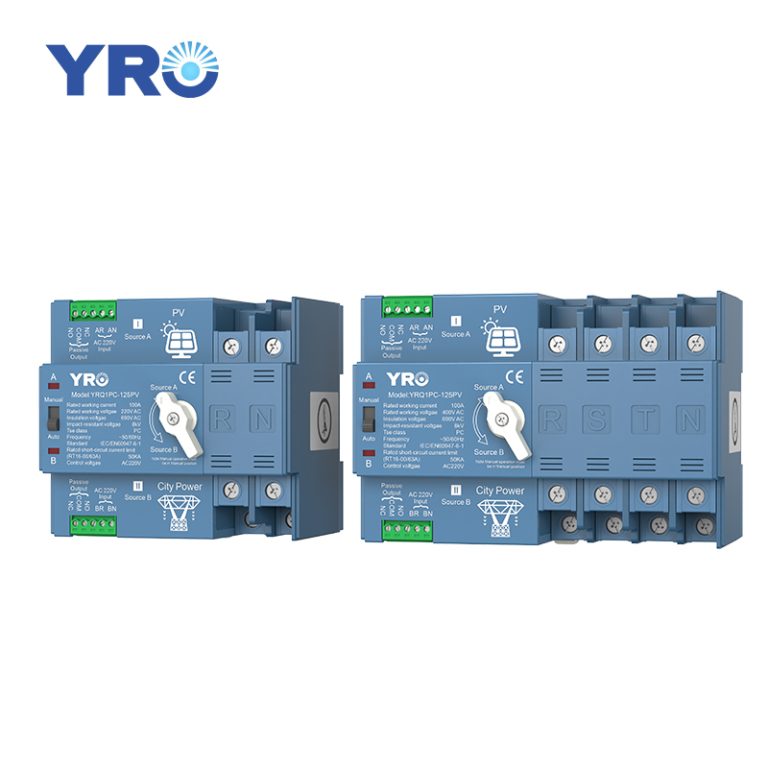

Specification
|
Model |
YRQ1PC-125 |
|||
|
Poles |
2,3,4 |
|||
|
Rated Current Ie (A) |
10A~125A |
|||
|
Installation |
Din rail |
|||
|
Rated insulation voltage Ui (V) |
AC690, 50/60HZ |
|||
|
Rated working voltage Ue (V) |
AC400, 50/60HZ |
|||
|
Rated impulse withstand voltage (KV) |
8KV |
|||
|
Connecting and breaking |
6.0Ie 1.05Ue cosØ=0.50±0.05, 50 times |
|||
|
Operating performance |
2.0Ie 1.05Ue cosØ=0.80±0.05, 6000 times |
|||
|
Rated limited short-circuit current Iq |
50KA |
|||
|
SCPD (FUSES ) |
RT16-00-63A |
|||
|
Control circuit |
Rated supply voltage Us: AC220V, 50HZ. |
|||
|
Ancillary circuit |
Two isolated relays, each relay with 2 groups of passive |
|||
|
Switching time |
<50ms |
|||
|
Action time |
<50ms |
|||
