●Small size, safe to use, easy to install
●Guide rail installation, pull-out plug-in design
●For photovoltaic DC combiner boxes, inverters
●Overcurrent protection and active disconnection
●Heat dissipation on both sides, constant temperature work

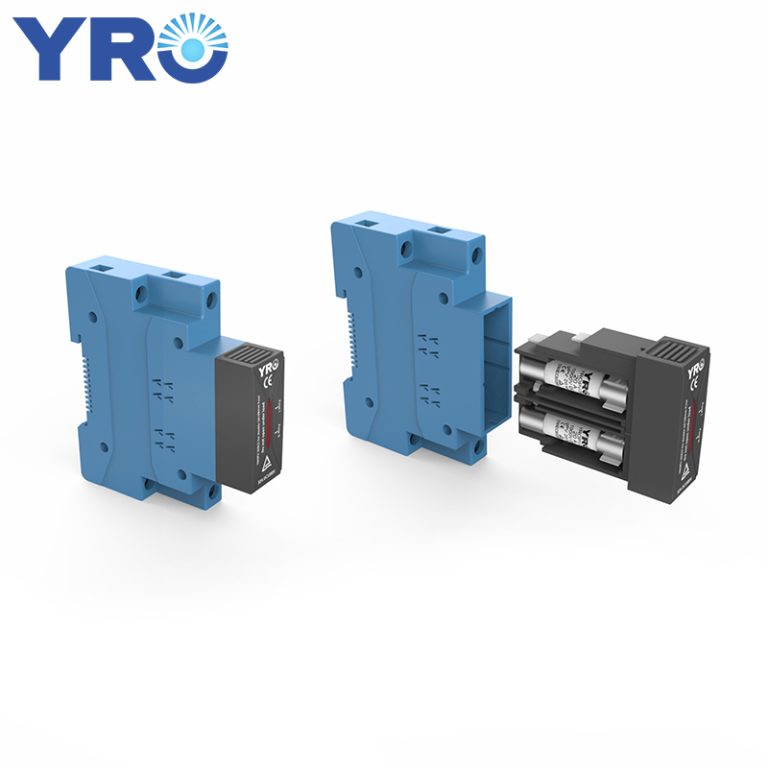

YRO YROPV-32BD is a 1000V DC fuse holder with 2 poles input combines and 2 pole output, holding 2 pieces of 1 0*38mm 1000V fuse link up to 32A. The fuse holder can be application in 1000V solar combiner box, solar inverter and solar equipments.Protect the DC circuit from over-current damaging
YROPV-32BD This fuse holder can be applied to 1000V solar combiner boxes, solar inverters and solar equipment. Protect DC circuits from overcurrent damage.
| Pole | Rated Voltage Ue (V DC) | Rated Current In (A) | Rated breaking capacity(KA) | The Most High Power Consumption(W) |
| 2P | 1000 | 1,2,3,4,5,6,8,10,12,15,20,25,30,32 | 20 | 7 |
|
Connection(mm2) |
2 .5-1 0 |
|
Working temperature(°C) |
-30-+70 |
|
Resistance And Damp Hot |
Class 2 |
|
Altitude(m) |
<2000 |
|
Relative Humidity |
<95% |
|
Protection Class/Degree |
IP20 |
|
Pollution |
3 |
|
Installation Environment |
No obvious shock and vibration |
|
Installation Class/Type |
Class lll/DIN rail |
