●Small size, safe to use, easy to install
●Guide rail installation, pull-out plug-in design
●For photovoltaic DC combiner boxes, inverters
●Overcurrent protection and active disconnection
●Heat dissipation on both sides, constant temperature work
YROPV-30 and YROPV-32B fuse bases are designed and manufactured in compliance with standards IEC60269-6-6 and IEC60947-3.
Guide rail installation, pull-out plug-in design, it is more convenient to replace the fuse core, and the space is accurate

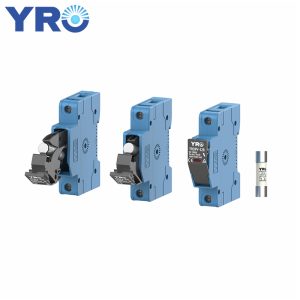

YRO PV DC YROPV-30 Fuse and YROPV-32B Fuse Holder was designed and manufactured , complying with the standard IEC60269-6 and IEC60947-3. The Rated Current up to 32A,rated voltage up to1000V DC. It applied for PV DC combiner box, inverter etc, with the main function of over-current protection and effective disconnection.
According to IEC60269-6
Rated voltage: DC 1000V
Operating class gPV for Solar protection
Rated current: 1-32A
Rated breaking capacity: DC 20KA
| Pole | Rated Voltage Ue (V DC) | Rated Current In (A) | Rated breaking capacity(KA) | The Most High Power Consumption(W) |
| 1P | 1000 | 1,2,3,4,5,6,8,10,12,15,20,25,30,32 | 20 | 3.5 |
|
Connection(mm2) |
2 .5-1 0 |
|
Working temperature(°C) |
-30-+70 |
|
Resistance And Damp Hot |
Class 2 |
|
Altitude(m) |
<2000 |
|
Relative Humidity |
<95% |
|
Protection Class/Degree |
IP20 |
|
Pollution |
3 |
|
Installation Environment |
No obvious shock and vibration |
|
Installation Class/Type |
Class lll/DIN rail |
