●Small size, safe to use, easy to install
●Guide rail installation, pull-out plug-in design
●For photovoltaic DC combiner boxes, inverters
●Overcurrent protection and active disconnection
●Heat dissipation on both sides, constant temperature work
The around temperature Max value can be up to 90 °C, min limit value up to -40 °C, the installation altitude is not over 2000m ( our company can customize based on one's request if you need some special)

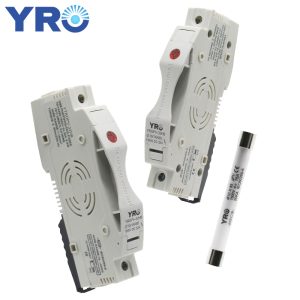

The fuse base consists of a plastic gland with contacts and fuse carriers or is riveted and can be used as a support for fuse connections of corresponding size. It has the characteristics of small size, convenient installation, safe use and beautiful appearance.
gPV means all range DC breaking protection in solar photovoltaic power generation system .
This series of products is a variable cross-section melt made of 1 # (99.99) pure silver tape (or silver wire wound), welded with environmentally friendly low-temperature tin and encapsulated in a melt tube made of high-strength 95 porcelain. The melt tube The medium is filled with high-purity quartz sand that has been chemically treated and treated with a special process as an arc extinguisher The two ends of the medium and the melt are firmly electrically connected with the contacts by spot welding. The fuse base is made of a plastic pressed shell equipped with contacts and fuse-carrying parts, or connected by riveting, and can be used as a supporting part for fuse-links of corresponding sizes. This series of fuses have small size, convenient installation, safe use and appearance features such as beautiful appearance.
|
Volts |
1500V |
|
Amps |
2A-32A |
|

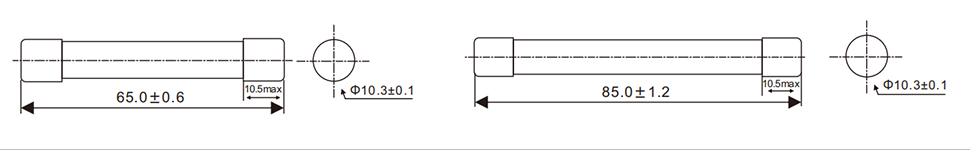

Fusible Core Specificatior(1) |
10 X 65mm |
|
Fusible Core Specification) |
10X85mm |
|
Class of Operation |
gPV |
|
Standard |
GB/T 13539.6 IEC 60269-6 |
|
Breaking Capacity |
20kA |
