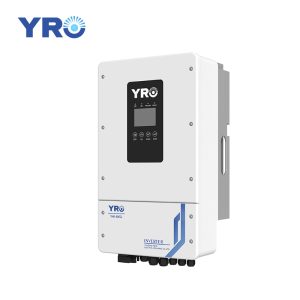

MODEL |
YHI-5KSL | YHI-6KS | YHI-8KSL | YHI-10KSL |
|
PV input |
||||
| Vmax PV(Vdc)(absolute Max.) | 500 | 500 | 500 | 500 |
| Max.PVinput current /lsc PV(A) | 26+26/34+34 | 26+26/34+34 | 26+26/34+34 | 26+26/34+34 |
| Noof MPPT Trackers /Number input strngs | 2/2+2 | 2/2+2 | 2/2+2 | 2/2+2 |
| MPPT voltage range (@ fullpower)(Vdc) | 125-425(240-425) | 125-425(240-425) | 125-425(240-425) | 125-425(240-425) |
| Power pvMax(W) | 8800 | 10400 | 11200 | 12500 |
| Battery (charge/discharge) | ||||
| Battery type | Li-ion/Lead-acid | |||
| Battery Norma Voltage(Range)(Vdc) | 48V(40-60V) | |||
| Max charge/discharge Current(A) | 160 | 190 | 190 | 190 |
| Max charge/discharge Power(W) | 7000 | 8800 | 8800 | 8800 |
| AC Grid (input and output) | ||||
| Input/Output Frequency and Voltage | 50/60Hz;230Vac(single phase) | |||
| Normal/Max.input/output current (A) | 30.5/30.5 | 35/35 | 39.2/39.2 | 43.5/43.5 |
| Max. cont.Power/Apparent Power (W/VA) | 7000/7000 | 8000/8000 | 9000/9000 | 10000/10000 |
| Power factor(adjustable) | 1.0(-0.8~+0.8) | |||
| AC Load output (stand alone) | ||||
| Input/Output Frequency and Voltage | 50/60Hz;230Vac (single phase) | |||
| Nominal Current(A) | 30.5 | 35 | 39 | 43.5 |
| Max.cont.Power/Apparent Power (kW/kVA) | 7000/7000 | 8000/8000 | 9000/9000 | 10000/10000 |
| Power factor(adjustable) | 1.0(-0.8~+0.8) | |||
| Eciency | ||||
| Max.Effciency/Euro Effciency /MPPT Effciency | 97.60%/9700%/9990% | |||
| Protection | ||||
| Integrated Protection | PV Input lightning Protection/Anti-islanding Protection/DC circuit breaker/ PV String Input Reverse Polarity Protection/Insulation Resistor Detection/ Residual Current Monitoring Unit /Output Over Current Protection/ Output Shorted Protection /Output Over Voltage Protection | |||
| Surge Protection | DC Typell/AC Typell | |||
| Certifications and Standards | ||||
| Grid Regulation | VDE 0126,AS4777,NRS2017G98,G99IEC61683,EC62116,IEC61727 | |||
| Safety Regulation | IEC62109-1,EC62109-2 | |||
| EMC | EN61000-6-1.EN61000-6-3.FCC 15class B | |||
| General Data | ||||

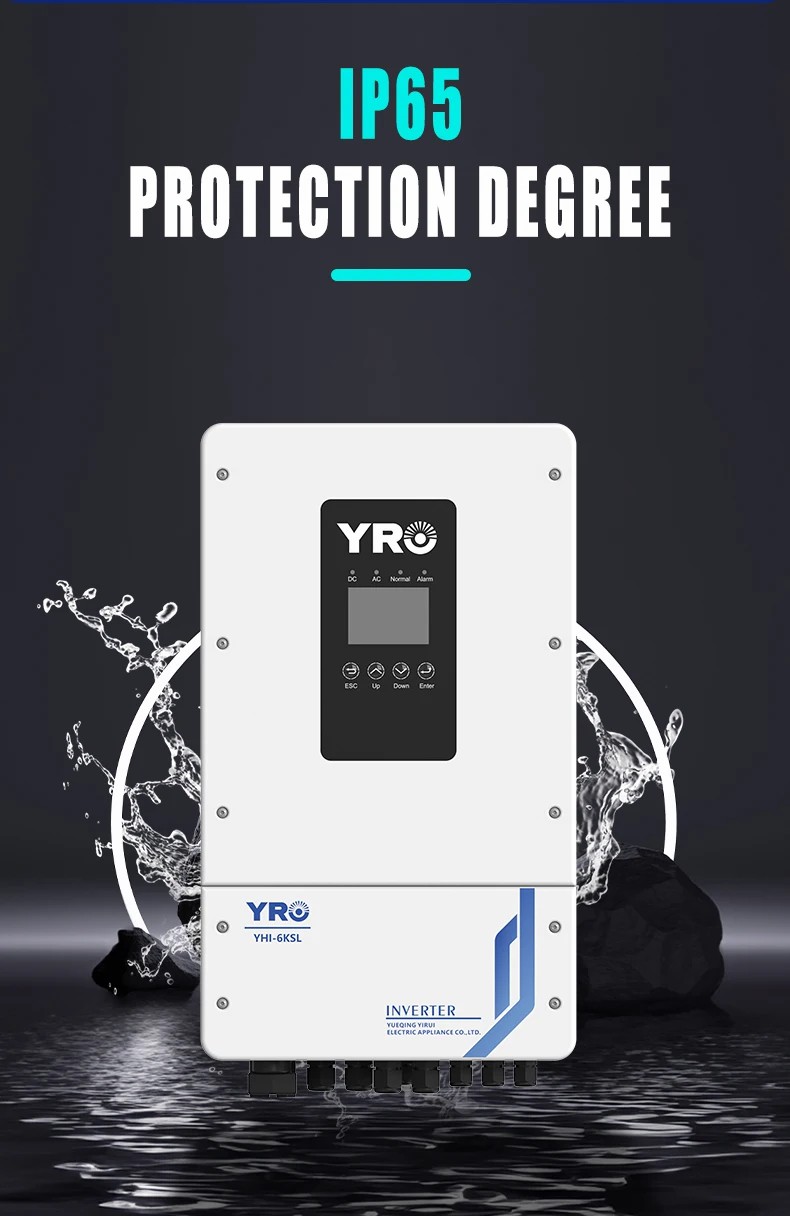

| Operating Temperature Range(C)/Protection Degree/Cooling /Noise(dB)/Protective class | -25~60C>45CDerating/IP65/Smartcooling/<30dB/ClassIv | |||
| Weight (kg) | 30.5 | |||
| Size (mm) | 410W×632H×238D | |||
| Installaton Style | Wall-mounted | |||
| Warranty | 5 years | |||
