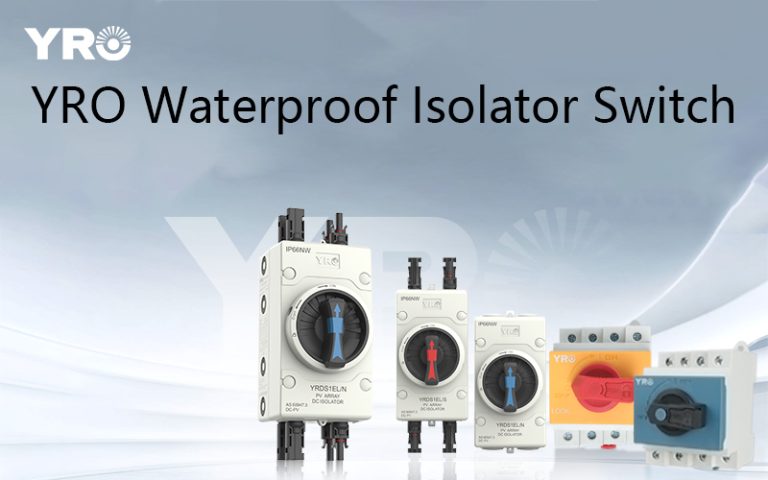

YRDS1 series isolator switches are suitable for isolating lines in high-voltage direct current transmission and distribution systems, such as cutting off high-voltage direct current between solar panels and inverters.
In the harsh working environment, it provides safe and reliable control of the power supply, high safety, and can be used with confidence.
Model |

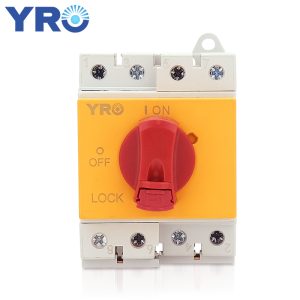

YRDS1DB-N32/4 |
Pole |
2P/4P |
Rated voltage |
1000VDC to 1200VDC |
Rated current |
10A/16A/20A/25A/32A |
Dimensions |
108X101X166mm |
Waterproof degree |
IP66 |
Breaking capacity |
1000/1700 |
Certificate |
CE/CB/TUV/IEC/SAA |
Standards |
IEC60947-3 |
Ambient temperature |
-25℃– +85℃ |
Insulated voltage |
DC 1500V |
Connection type |

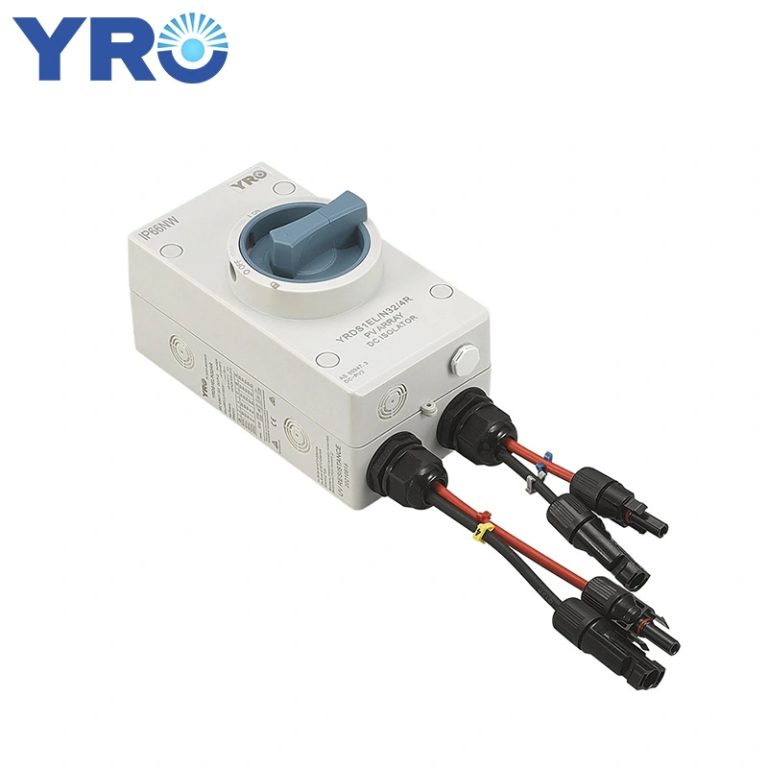

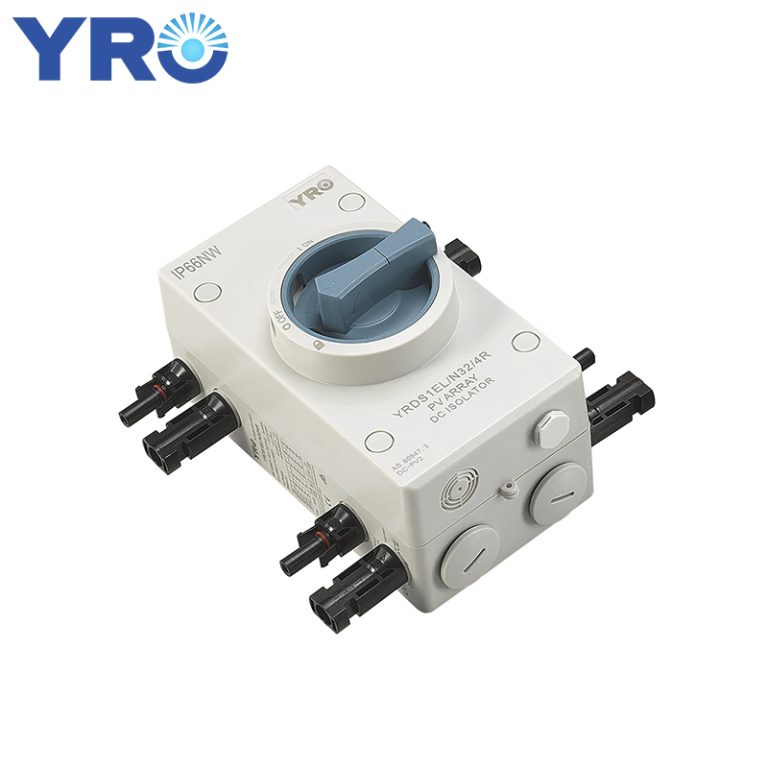

M20 M25 Solar connector |
Color |
Yellow/White; Gray/Red |
