PV Combiner Box

DC Combiner Boxes 2in 1out DC1000V
DC Combiner Boxes 2in 1out DC1000V
DC Combiner Boxes 2in 1out DC1000V
DC Combiner Boxes 2in 1out DC1000V

DC Combiner Boxes 2in 1out DC1000V

● IP65 Waterproof enclosure.
● Build-in TUV listed DC switchgears.
● From 1 to 24 strings customized solutions.
● Over-voltage, over-load, lightning protection.
● Real-time detection, long-distance communication.

Product Description

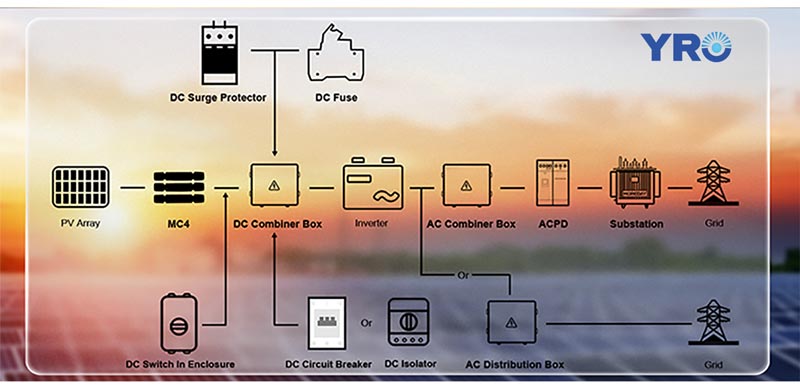

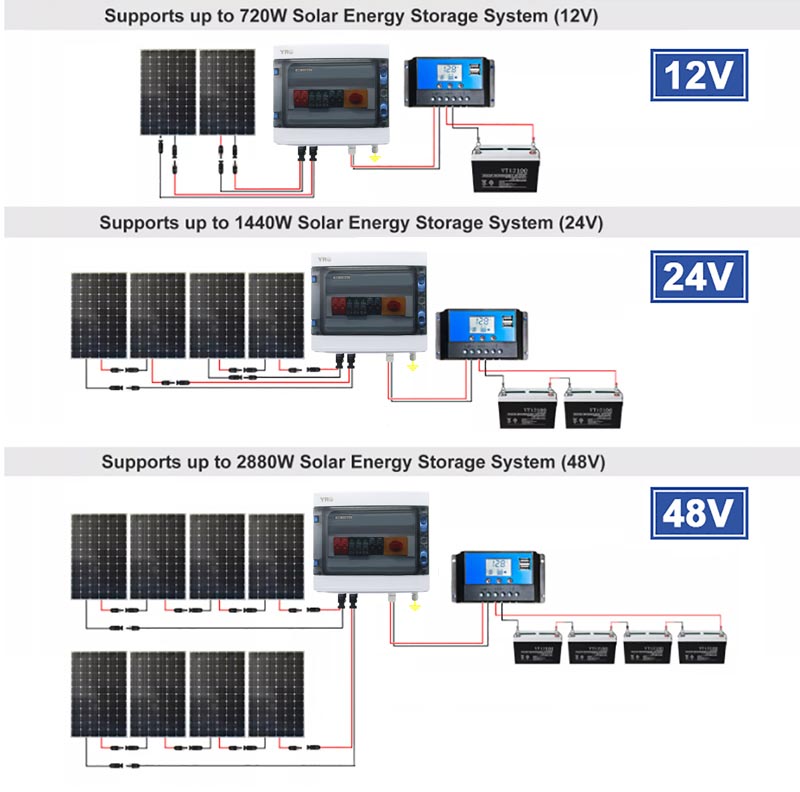

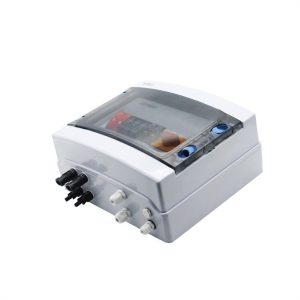

PV Combiner box is a perfect device for outdoor installation and use. Suitable for photovoltaic on-grid/off-grid solar power generation systems, solar panel systems, PV array, RV solar power, home solar panel systems. It can support solar panel systems up to 720W in 12V system, 1440W in 24V system, 2880W in 48V system.

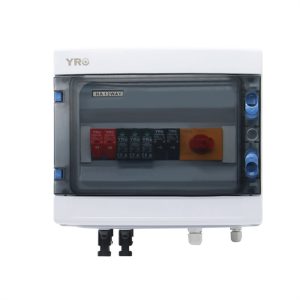

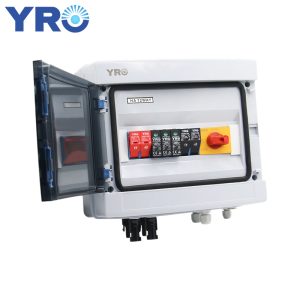

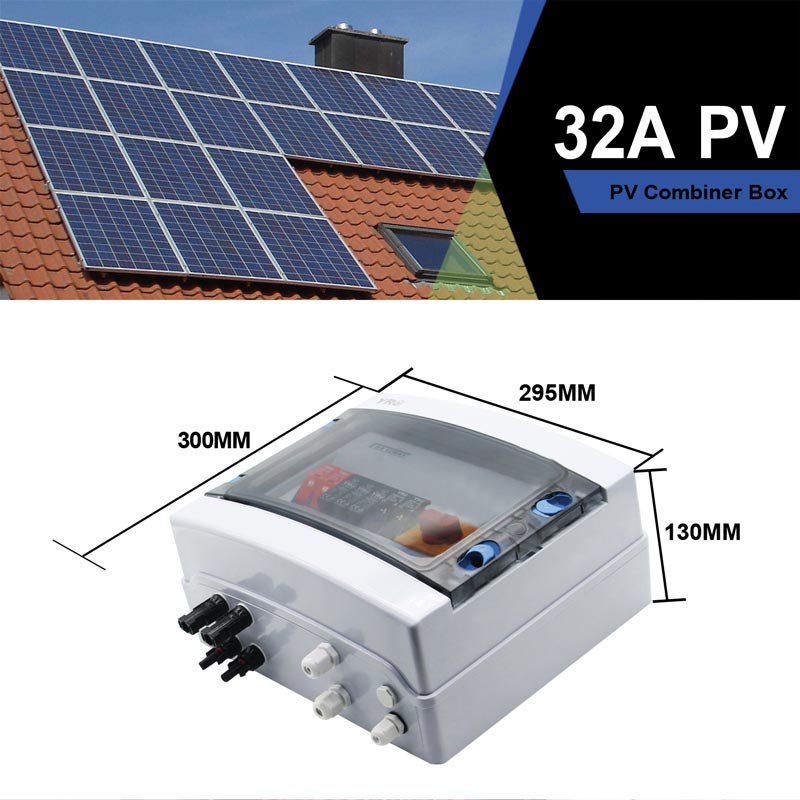

2in 1out DC1000V

PV Combiner Box

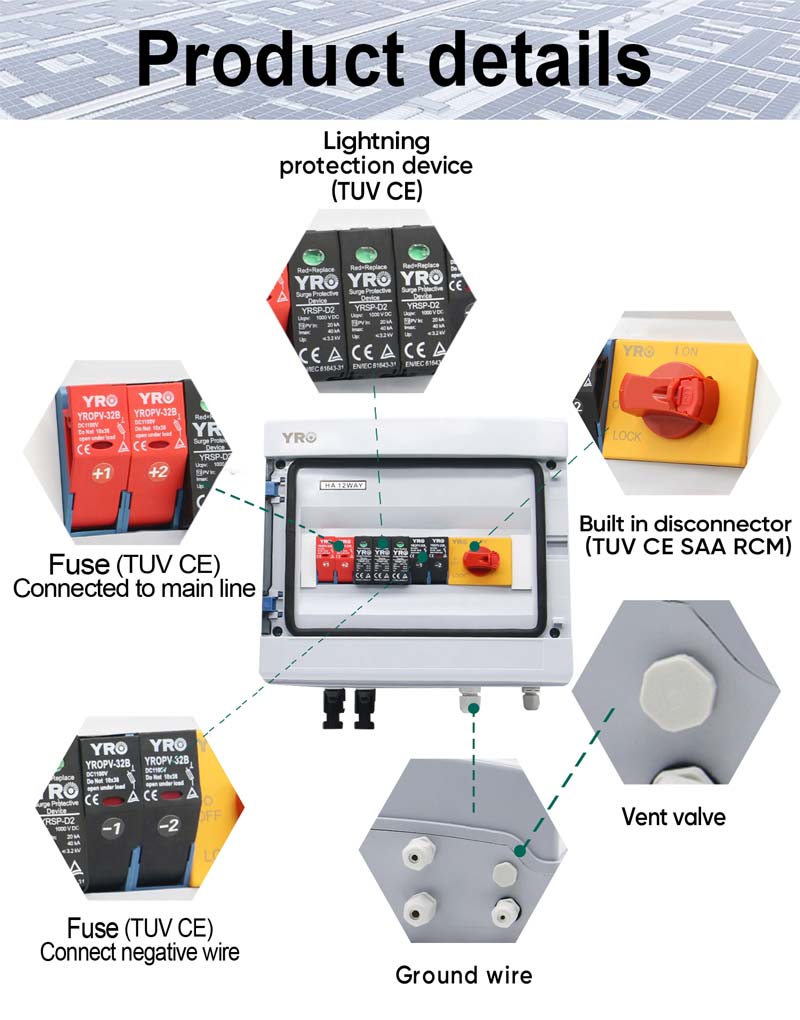

PC+ABS shell is flame retardant and UV resistant

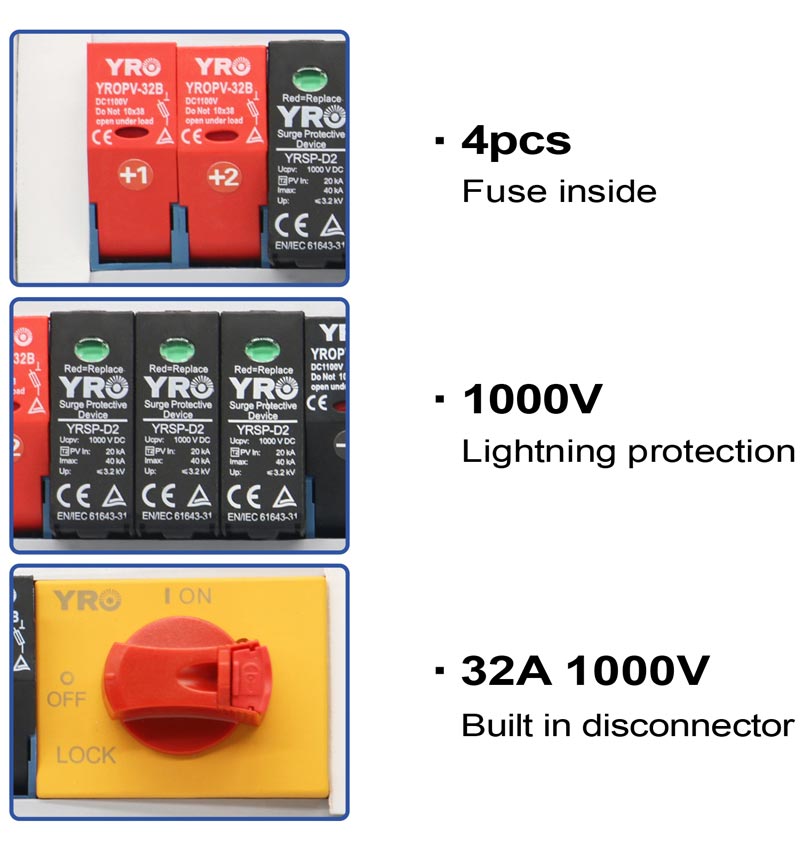

1000Vdc 15A fuse x4

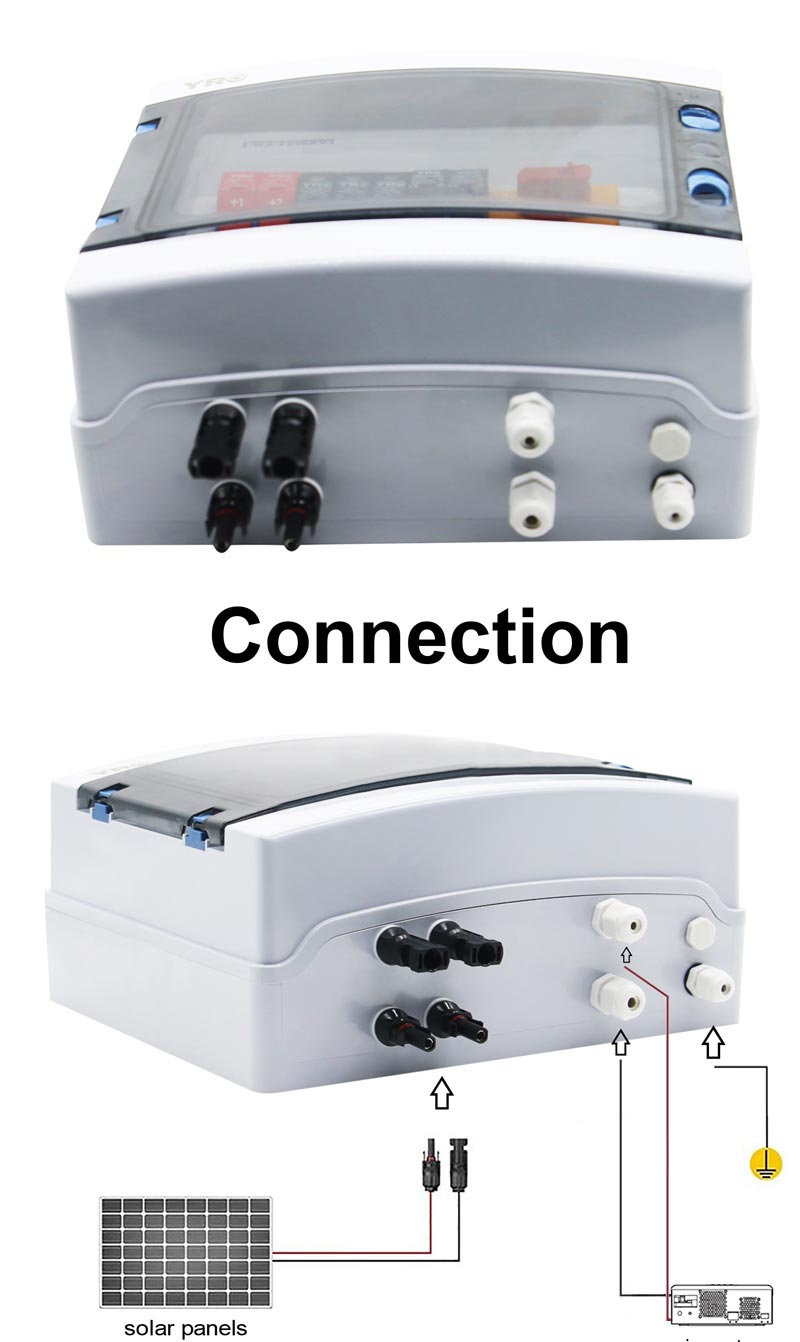

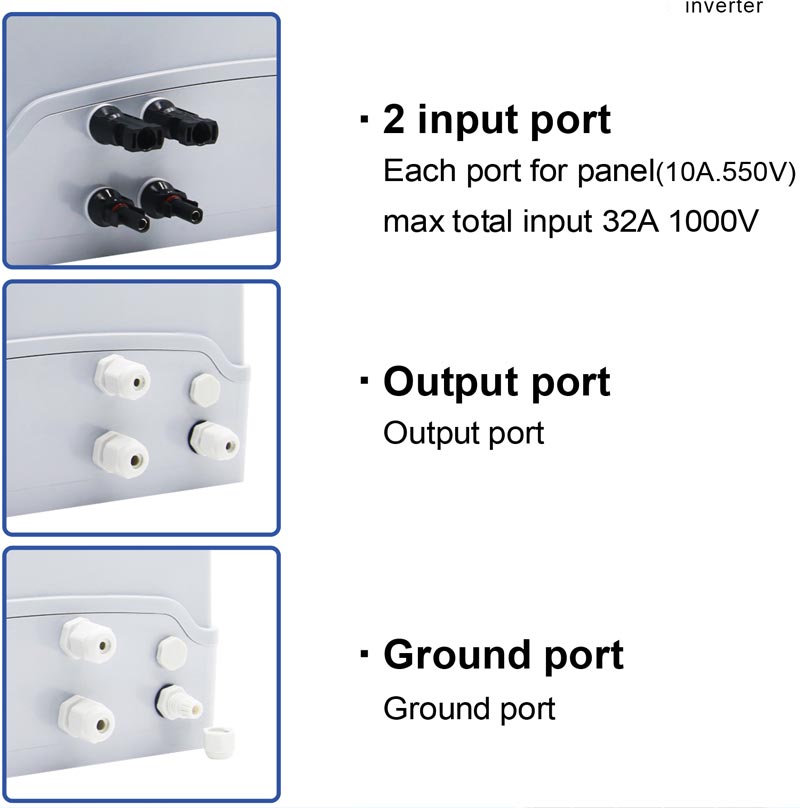

2 in 1 out

1000Vdc 32A circuit Breaker x1

Ip65  12way box

1000Vdc 40kA surge protector x1
