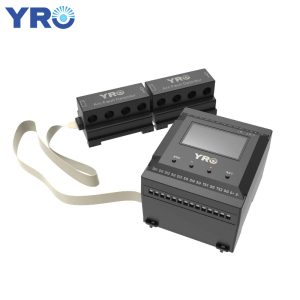

PV Combiner Box

PV Combiner Box Monitor PV Site
PV Combiner Box Monitor PV Site
PV Combiner Box Monitor PV Site
PV Combiner Box Monitor PV Site
PV Combiner Box Monitor PV Site

PV Combiner Box Monitor PV Site

● Supports up to 32 channels.

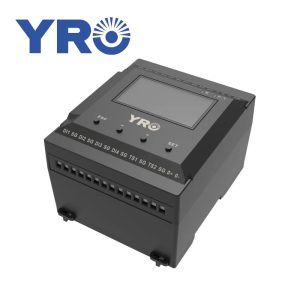

● Local LED display, real-time of PV string information.
● Can view the total power generation of each string.
● RS485 or PLC communication.
● Support shunt release trip.

Product Description

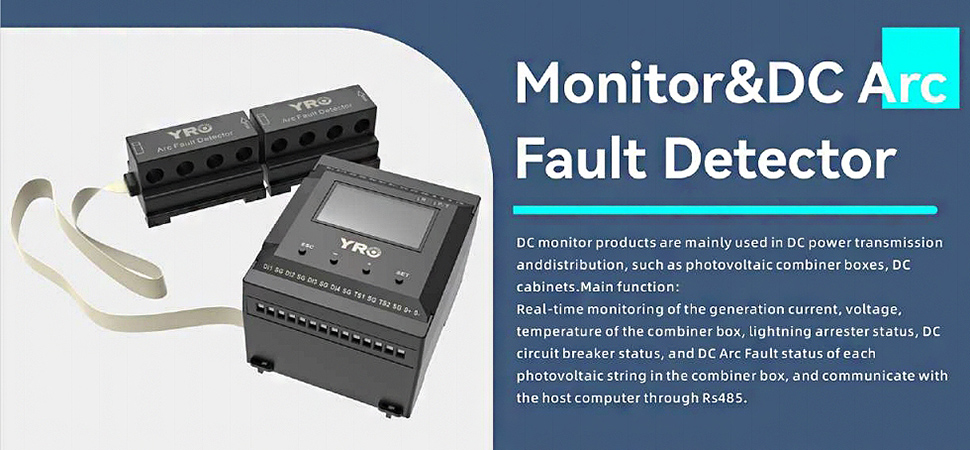

Solar Combiner Box Monitoring is a technology used to track and manage the performance and status of solar combiner boxes within a solar power system. Combiner boxes are key components that aggregate the electrical output from multiple solar panels and direct it to the inverter. Monitoring ensures efficient and safe power transmission, allowing for the early detection and resolution of issues such as circuit overloads and equipment failures, thereby enhancing the overall performance of the solar energy system.


Overview
    -Supports up to 32 channels.
    -Local LED display, real-time of PV string information.
    -Can view the total power generation of each string.
    -RS485 or PLC communication.
    -Support shunt release trip.
    -Various specifications of Hall sensor, -20A~+20A, -30A~+30A, -60A~60A.





Technical Date Technical Parameter
Max system Voltage: Dc1500v
Hall sensor: 20A(defult)/30A/60A
Communication: Channels:
Channels: Max 32 channels
Monitor: String Current/String Voltagel

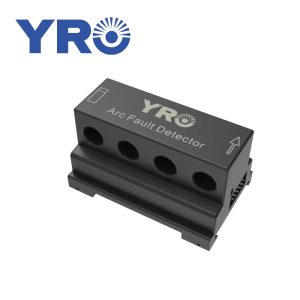

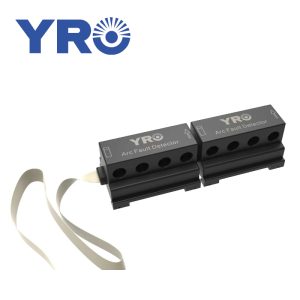

Arc Fault/ Temperature/Switch Status
